Elmex Photovoltaic Panel Connector

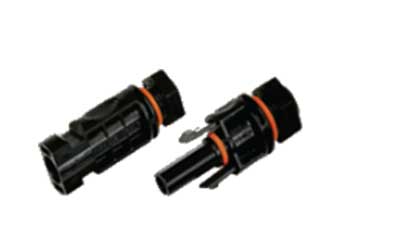

To cater to the requirement of panel mounted connection, ‘elmex’ has developed solar panel connectors EMPVPCM4 and EMPVPCF4. ‘elmex’ panel connectors are designed for use in connection of photovoltaic devices like panels, inverter, string boxes, etc. ‘elmex’ panel connector is provided with hexagonal nut for fixing and tightening it on the mounting surface: a rubber o-ring is kept between panel surface and the wall of the photo voltaic devices. ‘elmex’ connector has mating compatibility with ‘elmex’ make straight connector EMPV4.
| Description | Elmex Specification |
| Rated Voltage | 1000 V DC |
| Rated Current | 25 A(2.5 mm2), 30 A(4.0 mm2, 6.0 mm2) |
| Test Voltage | 6 KV (50 Hz) |
| Contact Material | Copper with Tin Plating |
| Operating Temperature | -45°C to 90°C |
| Safety Class | II |
| Contact Resistance | < 0.5 Nm |
| Insertion Force | ≤50 N |
| Withdrawal Force | ≥50 Nm |
| Suitable Cable | 2.5 mm2/4.0 mm2/6.0 mm2 |
| Locking System | Snap In |
