Driller

Appliance Wiring Material

shape

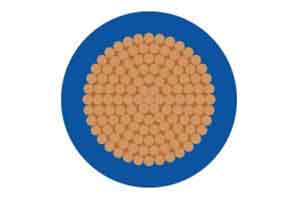

TRI RATED CABLE

TRI RATED CABLE

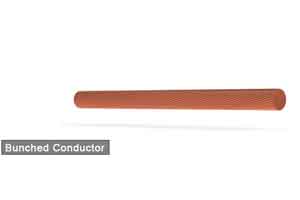

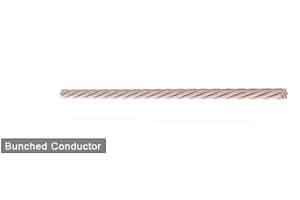

Bunched Conductor

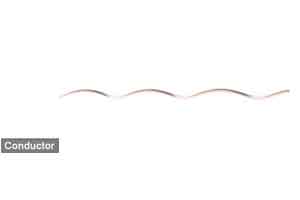

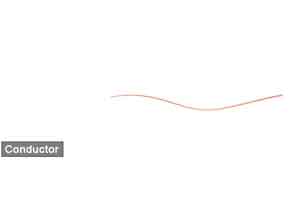

Conductor

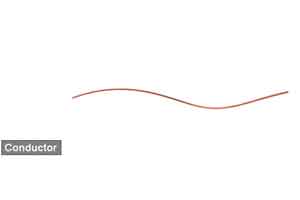

Conductor

Technical Data :-

  • Standard : UL 1015, 758, CSA C 22.2 No 210 & BS 6231
  • NominalVoltage : 600V, UL – Type AWM 105°C 600V, CSA – Type AWM 105°C 600V, BS 6231 CK type 90°C 600V
  • TestVoltage (Spark test) AWG 24 : 4kV AWG 22 and 20 : 5kV AWG 18 to 16 : 6kV ≥ AWG 8: 7.5kV
  • Bending Radius : Cable diameter ≤ 8 mm : 4 x outer diameter, Approx diameter > 8 to 12 mm : 5 x outer diameter, Approx diameter > 12 mm : 6 x outer diameter

Cable Design Parameters :-

  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey, 13 – light blue

Application :-

  • These cables are used for internal wiring of panels and electrical equipment. These are used as connection wire in machines laid in protective tubes and flexible pipes and also for motors and transformers.
Part Number AWG No. No. of Cores & Nominal Cross Sectional Area (Sq. mm) Approx. Cable Diameter (mm) Approx. Copper Weight (kg/km) Approx Cable Weight (kg/km)
06010101xx30 21 1 x 0.5 2.6 4.1 11
06010102xx30 19 1 x 0.75 2.8 6.1 13.5
06010103xx30 18 1 x 1 2.9 8.1 16
06010104xx30 16 1 x 1.5 3.2 11.7 21
06010105xx30 14 1 x 2.5 3.6 19.5 31
06010106xx30 12 1 x 4 4.1 31.5 45
06010107xx30 10 1 x 6 4.7 47.1 63
06010108xx30 8 1 x 10 6.3 81.6 111
06010109xx30 6 1 x 16 8.3 131.8 183
06010110xx30 4 1 x 25 9.6 204.8 267
06010111xx30 2 1 x 35 10.8 299.7 374
06010112xx30 1 1 x 50 13.2 416.8 531
06010113xx30 2/0 1 x 70 14.9 597.2 733
06010114xx30 3/0 1 x 95 16.4 774 928
06010115xx30 4/0 1 x 120 18 980 1156
06010116xx30 250 kcmil 1 x 150 20.3 1208.1 1439
06010117xx30 350 kcmil 1 x 185 22.4 1568.2 1834
06010118xx30 450 kcmil 1 x 240 24.7 2018.2 2324

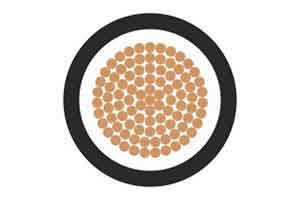

UL 1015

UL 1015

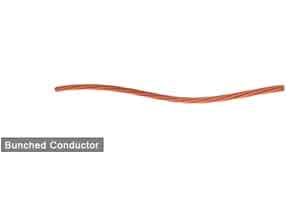

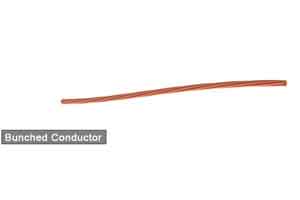

Bunched Conductor

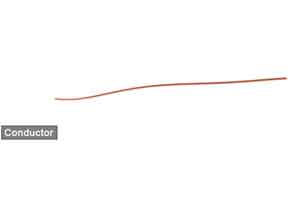

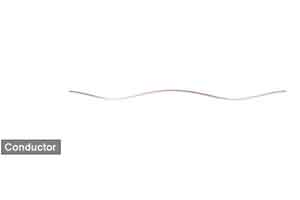

Conductor

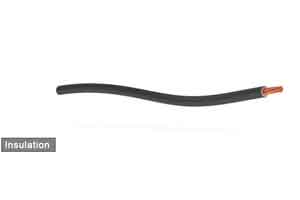

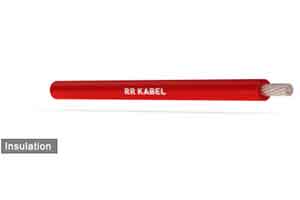

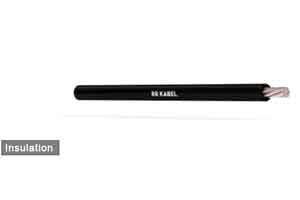

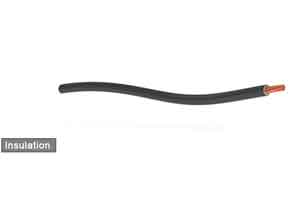

Insulation

Technical Data :-

  • Standard : UL 1015, 758, CSA C 22.2 No 210 & BS 6231
  • NominalVoltage : 600V, UL – Type AWM 105°C 600V, CSA – Type AWM 105°C 600V, BS 6231 CK type 90°C 600V
  • TestVoltage (Spark test) AWG 24 : 4kV AWG 22 and 20 : 5kV AWG 18 to 16 : 6kV ≥ AWG 8: 7.5kV
  • Bending Radius : Cable diameter ≤ 8 mm : 4 x outer diameter, Approx diameter > 8 to 12 mm : 5 x outer diameter, Approx diameter > 12 mm : 6 x outer diameter

Cable Design Parameters :-

  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey, 13 – light blue

Application :-

  • These cables are used for internal wiring of panels and electrical equipment. These are used as connection wire in machines laid in protective tubes and flexible pipes and also for motors and transformers.
Part Number AWG No. No. of Cores & Nominal Cross Sectional Area (Sq. mm) Approx. Cable Diameter (mm) Approx. Copper Weight (kg/km) Approx Cable Weight (kg/km)
06010101xx30 21 1 x 0.5 2.6 4.1 11
06010102xx30 19 1 x 0.75 2.8 6.1 13.5
06010103xx30 18 1 x 1 2.9 8.1 16
06010104xx30 16 1 x 1.5 3.2 11.7 21
06010105xx30 14 1 x 2.5 3.6 19.5 31
06010106xx30 12 1 x 4 4.1 31.5 45
06010107xx30 10 1 x 6 4.7 47.1 63
06010108xx30 8 1 x 10 6.3 81.6 111
06010109xx30 6 1 x 16 8.3 131.8 183
06010110xx30 4 1 x 25 9.6 204.8 267
06010111xx30 2 1 x 35 10.8 299.7 374
06010112xx30 1 1 x 50 13.2 416.8 531
06010113xx30 2/0 1 x 70 14.9 597.2 733
06010114xx30 3/0 1 x 95 16.4 774 928
06010115xx30 4/0 1 x 120 18 980 1156
06010116xx30 250 kcmil 1 x 150 20.3 1208.1 1439
06010117xx30 350 kcmil 1 x 185 22.4 1568.2 1834
06010118xx30 450 kcmil 1 x 240 24.7 2018.2 2324

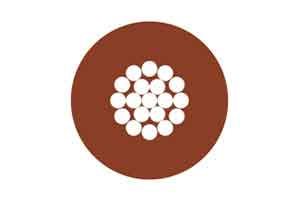

UL 1007

UL 1015

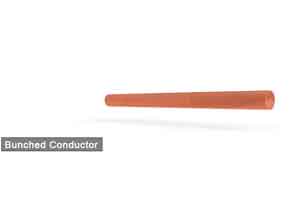

Bunched Conductor
Conductor

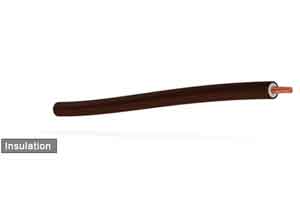

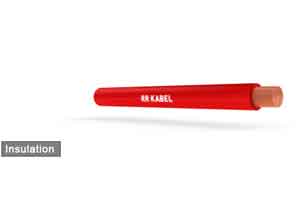

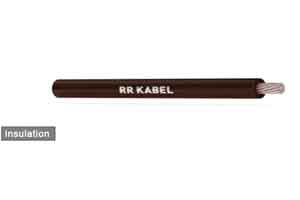

Insulation

Technical Data :-

  • Standard : UL – Std. 758 , CSA C 22.2 No. 210
  • NominalVoltage : 300V
  • TestVoltage : 2000V
  • TestVoltage (spark test) AWG 26-20 : 4kV, AWG 10 -18 : 5kV
  • Temperature at Conductor : Max. UL and CSA : +105°C
  • Bending Radius : Flexing 10 x cable ø’. Fixed installation 5 x cable ø

Cable Design Parameters :-

  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey, 13 – light blue

Application :-

  • These cables are used for internal wiring of switchboards, electronic and electrical equipment, e. g. households, radio of televisions, monitor and control desks.
Part Number AWG No. No. of Cores & Nominal Cross Sectional Area (Sq. mm) Approx. Cable Diameter (mm) Approx. Copper Weight (kg/km) Approx Cable Weight (kg/km)
06030101xx30 26 1 x 0.14 1.3 1.4 3
06030102xx30 24 1 x 0.21 1.5 2.1 4.3
06030103xx30 22 1 x 0.33 1.6 3.5 5.8
06030104xx30 20 1 x 0.52 1.9 5.2 8
06030105xx30 18 1 x 0.82 2.2 8.3 12
06030106xx30 16 1 x 1.32 2.5 13.5 18.4

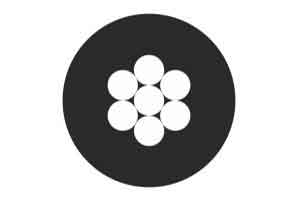

UL 1569

UL 1015

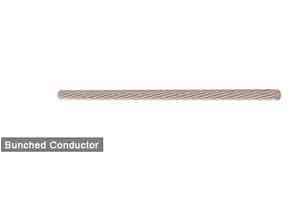

Bunched Conductor
Conductor

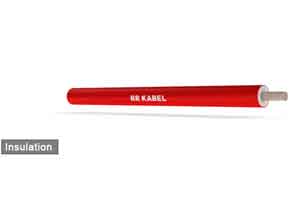

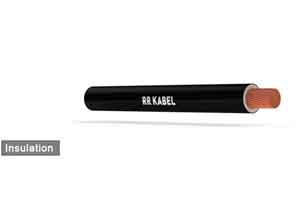

Insulation

Technical Data :-

  • Standard : UL – Std. 758 , CSA C 22.2 No.210
  • NominalVoltage : 300V
  • TestVoltage : 2000V
  • TestVoltage (spark test) AWG 26-20 : 4kV, AWG 10 -18 : 5kV
  • Temperature at Conductor : Max. UL and CSA : +105°C
  • Bending Radius : Flexing 10 x cable ø’. Fixed installation 5 x cable ø

Cable Design Parameters :-

  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey, 13 – light blue

Application :-

  • These cables are used for internal wiring of switchboards, electronic and electrical equipment, e. g. households, radio of televisions, monitor and control desks.
Part Number AWG No. No. of Cores & Nominal Cross Sectional Area (Sq. mm) Approx. Cable Diameter (mm) Approx. Copper Weight (kg/km) Approx Cable Weight (kg/km)
06040101xx30 26 1 x 0.14 1.3 1.4 3
06040102xx30 24 1 x 0.21 1.5 2.1 4.3
06040103xx30 22 1 x 0.33 1.6 3.5 5.8
06040104xx30 20 1 x 0.52 1.8 5.2 8
06040105xx30 18 1 x 0.82 2.1 8.3 12
06040106xx30 16 1 x 1.32 2.5 13.5 18.4
06040107xx30 14 1 x 2.08 3 20.4 27.3
06040108xx30 12 1 x 3.31 3.5 32.5 41.3
06040109xx30 10 1 x 5.26 4.1 51.7 62.8

UL 1275

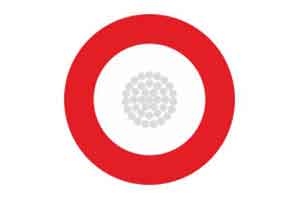

UL 1275

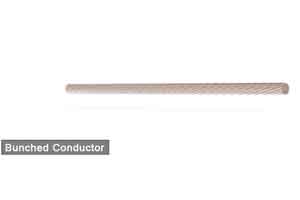

Bunched Conductor

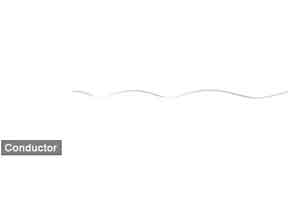

Conductor
Insulation

Technical Data :-

  • Standard : UL – Std. 758, CSA C 22.2 No.210
  • NominalVoltage : 300V
  • TestVoltage : 2000V
  • Temperature Range : -20°C to 105°C
  • Bending Radius : Fixed installation 5 x cable ø

Cable Design Parameters :-

  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey, 13 – light blue

Application :-

  • PVC-insulated heavy wall lead wire, for use as hook – up wire and for internal wiring on refrigeration equipments.
Part Number AWG No. No. of Cores & Nominal Cross Sectional Area (Sq. mm) Approx. Cable Diameter (mm) Approx. Copper Weight (kg/km) Approx Cable Weight (kg/km)
06050101xx30 18 1 x 0.82 4.3 8.3 27.4
06050102xx30 16 1 x 1.32 4.6 13.5 35.1
06050103xx30 14 1 x 2.08 5 20.4 44.9
06050104xx30 12 1 x 3.31 5.5 32.5 60.6
06050105xx30 10 1 x 5.26 6.1 51.7 84.5

UL 2587

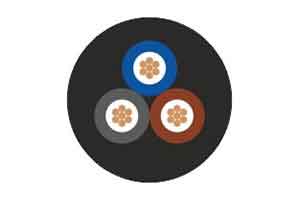

UL 2597

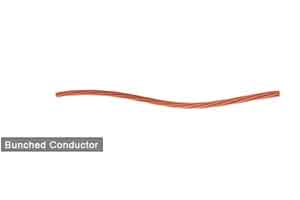

Bunched Conductor
Conductor
Insulation

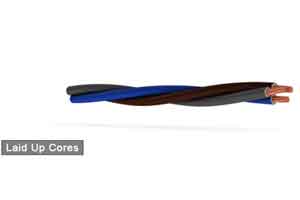

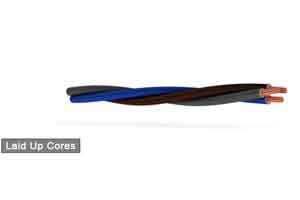

Laid Up Cores

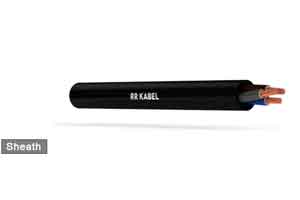

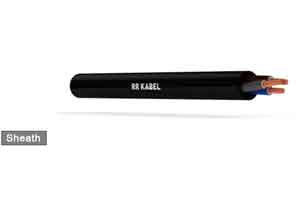

Sheath

Technical Data :-

  • Standard : UL – Std. 758; Control cable of special – PVC to UL AWM; Style 2587 cores according to UL 1015
  • NominalVoltage : 600V
  • TestVoltage : 3000V
  • Temperature Range : Flexing -5°C to +90°C.
  • Fixed installation -20°C to + 90°C
  • Insulation Resistance : Min 20 MΩ x km
  • Bending Radius : For permanent approx, 7.5 x cable ø

Cable Design Parameters :-

  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘z’) for the sheath colour required: 1 – black (RAL 9005), 3 – grey (RAL 7001).

Application :-

  • Used in machine tools, control systems, connection between control panels and machines, assembly lines and other industrial equipment and moderate flexing applications.
Part Number AWG No. No. of Cores & Nominal Cross Sectional Area (Sq. mm) Approx. Cable Diameter (mm) Approx. Copper Weight (kg/km) Approx Cable Weight (kg/km)
06060101000z 2 21 6.4 7.9 53
06060102000z 3 21 7.1 11.9 68.5
06060103000z 4 21 8.5 15.8 96.9
06060104000z 6 21 11 23.7 157.9
06060105000z 10 21 11.7 39.5 190.7
06060106000z 12 21 12.1 47.4 208.4
06060107000z 16 21 13.5 63.2 262.2
06060108000z 18 21 15.3 71.1 327.8
06060109000z 24 21 17.8 94.8 444.5
06060110000z 2 19 6.8 11.9 62.4
06060111000z 3 19 7.1 17.8 73.5
06060112000z 4 19 8.2 23.7 96.5
06060113000z 6 19 9.8 35.6 139.3
06060114000z 10 19 12.5 59.3 229.5
06060115000z 12 19 13 71.1 252.2
06060116000z 16 19 15.5 94.8 353.8
06060117000z 18 19 16.3 106.7 393.8
06060118000z 24 19 19 142.3 535
06060119000z 2 18 7.1 15.8 70.4
06060120000z 3 18 7.5 23.7 83.8
06060121000z 4 18 8.5 31.6 110.1
06060122000z 6 18 10.2 47.4 159.5
06060123000z 10 18 13.1 79 263.7
06060124000z 12 18 13.6 94.8 291.1
06060125000z 16 18 16.2 126.5 405.8
06060126000z 18 18 17 142.3 452.2
06060127000z 24 18 19.9 189.7 615
06060128000z 2 16 7.6 23.4 85.2
06060129000z 3 16 8.3 35.1 107.7
06060130000z 4 16 9.1 46.8 135.1
06060131000z 6 16 11 70.2 196.8
06060132000z 10 16 14.1 117 326.7
06060133000z 12 16 15.6 140.4 398.3
06060134000z 16 16 17.3 187.2 501.9
06060135000z 18 16 18.3 210.6 560.2
06060136000z 24 16 21.4 280.8 762.5
06060137000z 2 14 8.7 39 119.9
06060138000z 3 14 9.2 58.5 146.6
06060139000z 4 14 10.2 78 185.4
06060140000z 5 14 12.3 97.5 255.8
06060141000z 2 12 9.8 62 162.6
06060142000z 3 12 10.4 93 202
06060143000z 4 12 11.6 124 257.3
06060144000z 5 12 14 155 353.7
06060145000z 2 10 10.9 93 214.7
06060146000z 3 10 11.6 139.5 270.6
06060147000z 4 10 12.9 186 346.5
06060148000z 2 8 5.3 158.4 402.6
06060149000z 3 8 6.2 237.6 501.4
06060150000z 4 8 8 316.8 638.1
06060151000z 2 6 9.4 263.8 654.5
06060152000z 3 6 1.1 395.7 843.3
06060153000z 4 6 3.5 527.6 1074.8
06060154000z 2 4 2.2 410.4 911.1
06060155000z 3 4 3.6 615.6 1153.6
06060156000z 4 4 6.3 820.7 1479.2
06060157000z 2 2 4.7 596.7 1201.9
06060158000z 3 2 6.3 895.1 1540.7
06060159000z 4 2 0.3 1193.4 2053.9

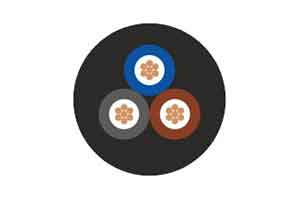

UL 2464

UL 2597
Bunched Conductor
Insulation

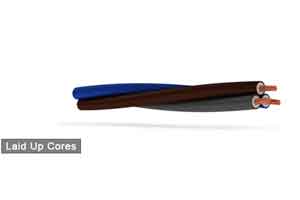

Laid Up Cores

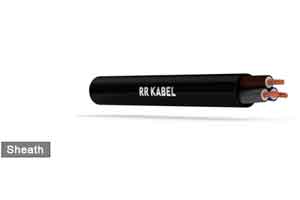

Sheath

Technical Data :-

  • Standard : UL- Std. 758. Special PVC command cable, approved to UL – Style 2464, cores according to AWG 24 – 16 to UL – Style 1007/1569
  • NominalVoltage : 300V
  • TestVoltage : 1500V
  • Temperature Range : Flexible -10°C to +80°C.
  • Fixed installation -20°C to + 80°C
  • BreakdownVoltage : Min. 3000V
  • Bending Radius : Flexing approx. 15x cable ø

Cable Design Parameters :-

  • Kindly complete the part numbers for these cables by adding the suffix (in place of 'z') for the sheath colour required: 1 – black (RAL 9005), 3 – grey (RAL 7001)

Application :-

  • Suitable for use as a command, measuring and control cable in tool making machinery conveyor system and production lines, in industrial plants and in air conditioning as well as in the steel producing industries.
Part Number AWG No. No. of Cores & Nominal Cross Sectional Area (Sq. mm) Approx. Cable Diameter (mm) Approx. Copper Weight (kg/km) Approx Cable Weight (kg/km)
06070101000z 2 24 5.1 4 32.9
06070102000z 3 24 5.3 5.9 36.9
06070103000z 4 24 5.7 7.9 43.5
06070104000z 6 24 6.5 11.9 58.1
06070105000z 10 24 7.9 19.8 87.8
06070106000z 12 24 8.1 23.7 95.2
06070107000z 16 24 8.9 31.6 116.5
06070108000z 18 24 9.3 35.6 128.6
06070109000z 24 24 10.7 47.4 170.6
06070110000z 2 21 5.7 7.9 43.6
06070111000z 3 21 5.9 11.9 50.1
06070112000z 4 21 6.4 15.8 60.1
06070113000z 6 21 7.4 23.7 82.3
06070114000z 10 21 9.1 39.5 127.7
06070115000z 12 21 9.4 47.4 140
06070116000z 16 21 10.3 63.2 173.9
06070117000z 18 21 10.8 71.1 192.9
06070118000z 24 21 12.5 94.8 258.1
06070119000z 2 19 6.1 11.9 52.3
06070120000z 3 19 6.3 17.8 61.1
06070121000z 4 19 6.9 23.7 74.1
06070122000z 6 19 8 35.6 102.8
06070123000z 10 19 9.9 59.3 161.6
06070124000z 12 19 10.2 71.1 178.5
06070125000z 16 19 11.2 94.8 223.6
06070126000z 18 19 11.8 106.7 248
06070127000z 24 19 13.7 142.3 333.8
06070128000z 2 18 6.7 15.8 64.4
06070129000z 3 18 7 23.7 75.9
06070130000z 4 18 7.6 31.6 92.8
06070131000z 6 18 8.9 47.4 130.2
06070132000z 10 18 11.1 79 207
06070133000z 12 18 11.4 94.8 229.4
06070134000z 16 18 12.6 126.5 288.6
06070135000z 18 18 13.3 142.3 321.5
06070136000z 24 18 15.5 189.7 433.8
06070137000z 2 16 7.3 23.4 80.4
06070138000z 3 16 7.6 35.1 96.2
06070139000z 4 16 8.3 46.8 118.8
06070140000z 6 16 9.8 70.2 168.5
06070141000z 10 16 12.3 117 271
06070142000z 12 16 12.7 140.4 302
06070143000z 16 16 14 187.2 382.6
06070144000z 18 16 14.8 210.6 427
06070145000z 24 16 17.3 280.8 577.7

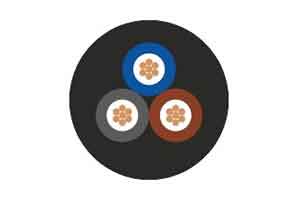

UL 2576, 2598

UL 2597
Bunched Conductor
Insulation
Laid Up Cores
Sheath

Technical Data :-

  • Standard : UL – Std. 758; UL – Style 2576, 2598
  • NominalVoltage : 300V
  • TestVoltage : 1500V
  • Temperature Range : -20°C to + 80°C
  • Bending Radius : Flexing approx. 15x cable ø

Cable Design Parameters :-

  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘z’) for the sheath colour required: 1 – black (RAL 9005), 3 – grey (RAL 7001)

Application :-

  • These cables are used for internal wiring of public address systems, intercoms, internal telephones, remote control circuits, wiring for machine tool control circuits, medical equipments.

Cable Construction :-

Annealed Plain copper, fine wire conductors AWG 24 – 16, Table 30.3 UL 1581 ASTM – B. Special PVC core insulation class 43, semirigid to UL – Std. 1581 table 50.182 and 50.183. Colour coded to H05VV – F up to 5 cores; coloured black with numbers for above 5 cores. Cores stranded in layers with optimal lay – length. Special PVC outer jacket class 43 to UL – Std. 1581 table 50.182. Outer jacket colour black or grey.


Part Number AWG No. No. of Cores & Nominal Cross Sectional Area (Sq. mm) Approx. Cable Diameter (mm) Approx. Copper Weight (kg/km) Approx Cable Weight (kg/km)
06080101000z 2 24 5.1 4 32.9
06080102000z 3 24 5.3 5.9 36.9
06080103000z 4 24 5.7 7.9 43.5
06080104000z 6 24 6.5 11.9 58.1
06080105000z 10 24 7.9 19.8 87.8
06080106000z 12 24 8.1 23.7 95.2
06080107000z 16 24 8.9 31.6 116.5
06080108000z 18 24 9.3 35.6 128.6
06080109000z 24 24 10.7 47.4 170.6
06080110000z 2 21 5.7 7.9 43.6
06080111000z 3 21 5.9 11.9 50.1
06080112000z 4 21 6.4 15.8 60.1
06080113000z 6 21 7.4 23.7 82.3
06080114000z 10 21 9.1 39.5 127.7
06080115000z  12 21 9.4 47.4 140
06080116000z  16 21 10.3 63.2 173.9
06080117000z  18 21 10.8 71.1 192.9
06080118000z  24 21 12.5 94.8 258.1
06080119000z 2 19 6.1 11.9 52.3
06080120000z 3 19 6.3 17.8 61.1
06080121000z 4 19 6.9 23.7 74.1
06080122000z 6 19 8 35.6 102.8
06080123000z 10 19 9.9 59.3 161.6
06080124000z 12 19 10.2 71.1 178.5
06080125000z 16 19 11.2 94.8 223.6
06080126000z 18 19 11.8 106.7 248.5
06080127000z 24 19 13.7 142.3 333.8
06080128000z 2 18 6.7 15.8 64.4
06080129000z 3 18 7 23.7 75.9
06080130000z 4 18 7.6 31.6 92.8
06080131000z 6 18 8.9 47.4 130.2
06080132000z 10 18 11.1 79 207
06080133000z 12 18 11.4 94.8 229.4
06080134000z 16 18 12.6 126.5 288.6
06080135000z 18 18 13.3 142.3 321.5
06080136000z 24 18 15.5 189.7 433.8
06080137000z 2 16 7.3 23.4 80.4
06080138000z 3 16 7.6 35.1 96.2
06080139000z 4 16 8.3 46.8 118.8
06080140000z 6 16 9.8 70.2 168.5
06080141000z 10 16 12.3 117 271
06080142000z 12 16 12.7 140.4 302
06080143000z 16 16 14 187.2 382.6
06080144000z 18 16 14.8 210.6 427
06080145000z 24 16 17.3 280.8 577.7

UL 3289/3321/3173/3271/3344 XLPE CABLE

UL 32893321317332713344 XLPE CABLE

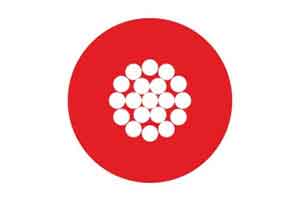

Bunched Conductor
Conductor
Insulation

Technical Data :-

  • Standard : UL – Std. 758. Complies to CSA No. 22.2 210 and 127
  • NominalVoltage : 600V
  • Test Voltage (spark test) AWG 22 and 20 = 5kV AWG 18 to 10 = 6kV ≥ AWG 8 = 7.5kV
  • Temperature Range : Flexible -5°C to +150°C.
  • Fixed installation -50°C to +150°C
  • Temperature at Conductor : Max. UL : +150°C
  • Bending Radius : Approx. 5 x cable ø

Cable Design Parameters :-

  • Kindly complete the part numbers for these cables by adding the suffix (in place of ‘z’) for the sheath colour required: 1 – black (RAL 9005), 3 – grey (RAL 7001).

Application :-

  • These cables have excellent resistance to abrasion, deformation, cut-through and chemical attack. This wire is widely used in appliances, transformers, electrical heating, motors, ballast, lighting and cooking equipment. Suitable for use as Appliance Wiring Material (AWM), coil leads and as Class B IEEE 130°C Class Motor Leads. Economical replacement for silicone rubber/glass braid insulated wire and cable.

Cable Construction :-

Annealed plain or tinned stranded copper conductor. XLPE insulation according to UL- Std. 1581 Table 50.232, Complies to CSA No. 22.2 210 and 127.


AWG Metric Cross Section Area (Sq. mm) No. of Strands/Strand Dia. (mm) Max. DC Conductor Resistance for ABC @ 20°C (Ω/km) Max. DC Conductor Resistance for ATC @ 20°C (Ω/km) Insulation Thickness (mm) Nominal Cable Diameter (mm)
21 0.5 16/0.2 43.6 46.9 0.762 2.4
19 0.75 24/0.2 27.4 29.1 0.762 2.6
18 1 32/0.2 21.8 23.2 0.762 2.8
16 1.5 30/0.25 13.7 14.6 0.762 3.1
14 2.5 50/0.25 8.62 8.96 0.762 3.5
12 4 56/0.3 5.43 5.64 0.762 4
10 6 84/0.3 3.409 3.546 0.762 4.6
8 10 140/0.3 2.144 2.23 1.143 6.1
6 16 126/0.4 1.348 1.403 1.524 7.9
4 25 196/0.4 0.8481 0.882 1.524 9.1
2 35 276/0.4 0.5335 0.5548 1.524 10.7
1 50 296/0.4 0.423 0.4398 2.032 12.8
Feb-00 70 360/0.5 0.266 0.2766 2.032 14.8
Mar-00 95 480/0.5 0.211 0.2194 2.032 16.2
Apr-00 120.00 608/0.5 0.1673 0.1722 2.032 17.7
shape
Whatsapp Now Enquire Now

Our Products
