RATNAFLEX MULTICORE (IS 694)
Technical Data :-
- Approvals : IS 694 marked, FIA/TAC

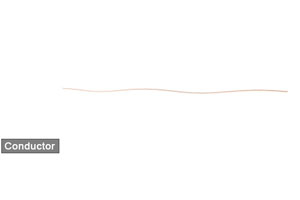

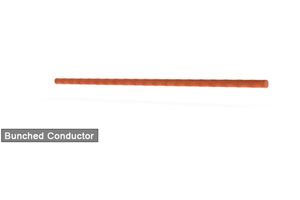

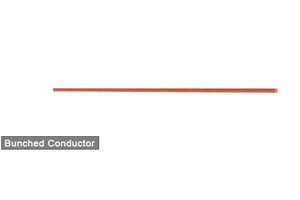

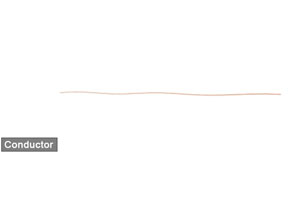

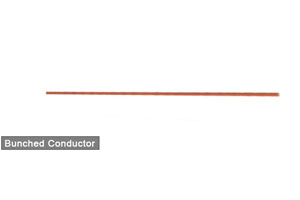

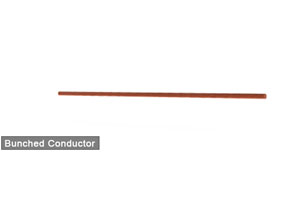

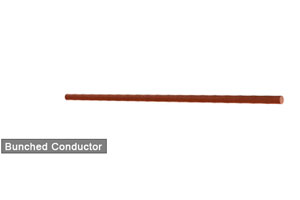

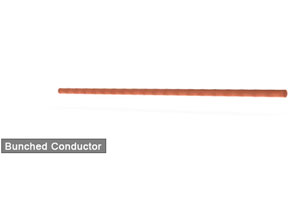

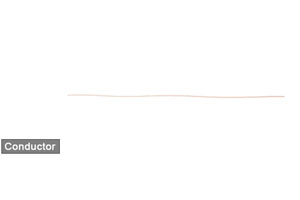

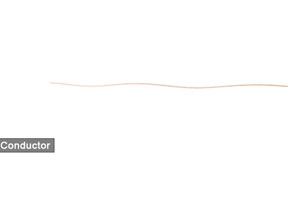

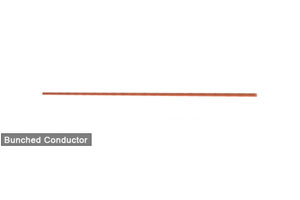

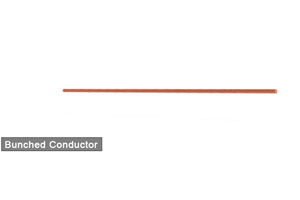

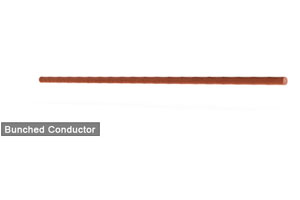

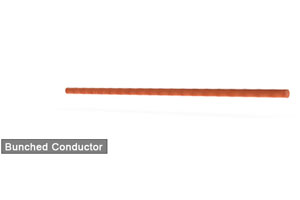

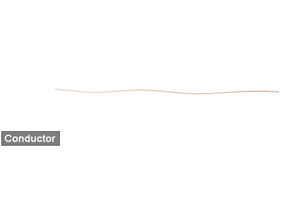

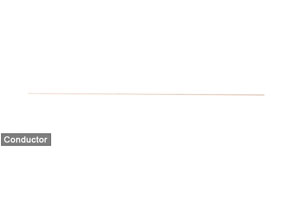

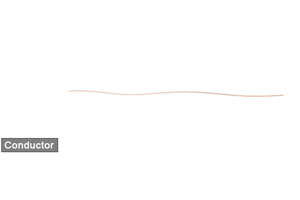

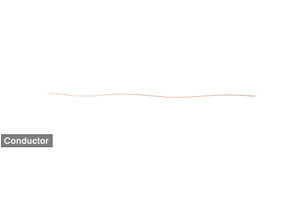

- Conductor : Electrolytic grade annealed copper Class 5 as per IS 8130
- Standard Cable Colour : Black, grey & white
- Voltage Rating : Up to and including 1100V
- Packing : Standard packing of 100 mtr. in coil. Longer length available
on request
Application :-
- PVC and FR PVC 70°C cables suitable for wiring in residential and
commercial infrastructure.
- HR PVC 85°C cables are suitable for wiring in residential and commercial
infrastructure for a higher ambient temperature.
- FR-LSH cables are suitable for wiring in public places like schools,
hospitals, theatres, etc.
Cable Design Parameters :-
| Part Number |
No. of Cores |
Nominal Cross Sectional Area(Sq. mm) |

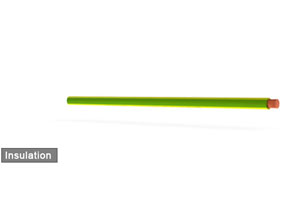

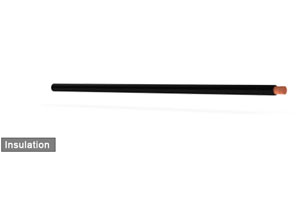

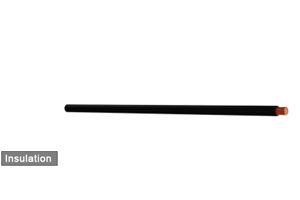

Nominal Insulation Thickness (mm) |
Max. D.C. Conductor Resistance at 20°C(Ώ/km) |

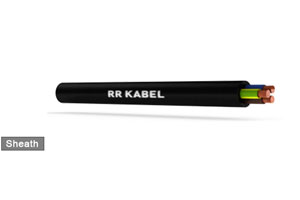

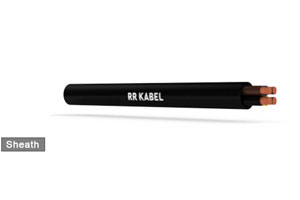

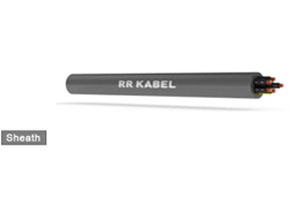

Nominal Thickness of Sheath |
Maximum Overall Dimensions (mm) |
| 03010101xxyz |
1 |
0.5 |
0.60 |
39.0 |
0.9 |
4.3 |
| 03010102xxyz |
2 |
0.5 |
0.60 |
39.0 |
0.9 |
6.9 |
| 03010103xxyz |
3 |
0.5 |
0.60 |
39.0 |
0.9 |
7.3 |
| 03010104xxyz |
4 |
0.5 |
0.60 |
39.0 |
0.9 |
8.0 |
| 03010105xxyz |
5 |
0.5 |
0.60 |
39.0 |
0.9 |
8.7 |
| 03010106xxyz |
1 |
0.75 |
0.60 |
26.0 |
0.9 |
4.5 |
| 03010107xxyz |
2 |
0.75 |
0.60 |
26.0 |
0.9 |
7.3 |
| 03010108xxyz |
3 |
0.75 |
0.60 |
26.0 |
0.9 |
7.7 |
| 03010109xxyz |
4 |
0.75 |
0.60 |
26.0 |
0.9 |
8.4 |
| 03010110xxyz |
5 |
0.75 |
0.60 |
26.0 |
0.9 |
9.2 |
| 03010111xxyz |
1 |
1 |
0.60 |
19.5 |
0.9 |
4.7 |
| 03010112xxyz |
2 |
1 |
0.60 |
19.5 |
0.9 |
7.6 |
| 03010113xxyz |
3 |
1 |
0.60 |
19.5 |
0.9 |
8.1 |
| 03010114xxyz |
4 |
1 |
0.60 |
19.5 |
0.9 |
8.8 |
| 03010115xxyz |
5 |
1 |
0.60 |
19.5 |
1.0 |
9.6 |
| 03010116xxyz |
1 |
1.5 |
0.60 |
13.3 |
0.9 |
5.4 |
| 03010117xxyz |
2 |
1.5 |
0.60 |
13.3 |
0.9 |
8.9 |
| 03010118xxyz |
3 |
1.5 |
0.60 |
13.3 |
0.9 |
9.4 |
| 03010119xxyz |
4 |
1.5 |
0.60 |
13.3 |
1.0 |
10.4 |
| 03010120xxyz |
5 |
1.5 |
0.60 |
13.3 |
1.0 |
11.4 |
| 03010121xxyz |
1 |
2.5 |
0.70 |
7.98 |
1.0 |
6.2 |
| 03010122xxyz |
2 |
2.5 |
0.70 |
7.98 |
1.0 |
10.3 |
| 03010123xxyz |
3 |
2.5 |
0.70 |
7.98 |
1.0 |
10.9 |
| 03010124xxyz |
4 |
2.5 |
0.70 |
7.98 |
1.0 |
12.0 |
| 03010125xxyz |
5 |
2.5 |
0.70 |
7.98 |
1.0 |
13.2 |
| 03010126xxyz |
1 |
4 |
0.80 |
4.95 |
1.0 |
6.8 |
| 03010127xxyz |
2 |
4 |
0.80 |
4.95 |
1.0 |
11.6 |
| 03010128xxyz |
3 |
4 |
0.80 |
4.95 |
1.0 |
12.4 |
| 03010129xxyz |
4 |
4 |
0.80 |
4.95 |
1.0 |
13.6 |
| 03010130xxyz |
5 |
4 |
0.80 |
4.95 |
1.1 |
15.3 |
| 03010131xxyz |
1 |
6 |
0.80 |
3.30 |
1.1 |
7.5 |
| 03010132xxyz |
2 |
6 |
0.80 |
3.30 |
1.1 |
13.0 |
| 03010133xxyz |
3 |
6 |
0.80 |
3.30 |
1.2 |
13.8 |
| 03010134xxyz |
4 |
6 |
0.80 |
3.30 |
1.2 |
15.5 |
| 03010135xxyz |
1 |
10 |
1.00 |
1.91 |
1.3 |
9.4 |
| 03010136xxyz |
2 |
10 |
1.00 |
1.91 |
1.3 |
16.5 |
| 03010137xxyz |
3 |
10 |
1.00 |
1.91 |
1.4 |
17.7 |
| 03010138xxyz |
4 |
10 |
1.00 |
1.91 |
1.4 |
19.5 |
| 03010139xxyz |
1 |
16 |
1.00 |
1.21 |
1.4 |
10.9 |
| 03010140xxyz |
2 |
16 |
1.00 |
1.21 |
1.4 |
19.4 |
| 03010141xxyz |
3 |
16 |
1.00 |
1.21 |
1.4 |
20.6 |
| 03010142xxyz |
4 |
16 |
1.00 |
1.21 |
1.4 |
23.0 |
| 03010143xxyz |
1 |
25 |
1.20 |
0.780 |
1.4 |
13.6 |
| 03010144xxyz |
2 |
25 |
1.20 |
0.780 |
1.4 |
23.8 |
| 03010145xxyz |
3 |
25 |
1.20 |
0.780 |
1.5 |
25.6 |
| 03010146xxyz |
4 |
25 |
1.20 |
0.780 |
1.6 |
28.5 |
| 03010147xxyz |
1 |
35 |
1.20 |
0.554 |
1.6 |
15.5 |
| 03010148xxyz |
2 |
35 |
1.20 |
0.554 |
1.6 |
27.2 |
| 03010149xxyz |
3 |
35 |
1.20 |
0.554 |
1.6 |
29.3 |
| 03010150xxyz |
4 |
35 |
1.20 |
0.554 |
1.7 |
32.7 |
| 03010151xxyz |
1 |
50 |
1.40 |
0.386 |
2.0 |
18.1 |
| 03010152xxyz |
2 |
50 |
1.40 |
0.386 |
2.0 |
32.0 |
| 03010153xxyz |
3 |
50 |
1.40 |
0.386 |
2.0 |
34.6 |
| 03010154xxyz |
4 |
50 |
1.40 |
0.386 |
2.0 |
38.6 |
| 03010155xxyz |
1 |
70 |
1.40 |
0.272 |
2.2 |
20.8 |
| 03010156xxyz |
2 |
70 |
1.40 |
0.272 |
2.2 |
36.8 |
| 03010157xxyz |
3 |
70 |
1.40 |
0.272 |
2.2 |
39.6 |
| 03010158xxyz |
4 |
70 |
1.40 |
0.272 |
2.2 |
44.3 |
| 03010159xxyz |
1 |
95 |
1.60 |
0.206 |
2.4 |
23.6 |
| 03010160xxyz |
2 |
95 |
1.60 |
0.206 |
2.4 |
41.8 |
| 03010161xxyz |
3 |
95 |
1.60 |
0.206 |
2.4 |
47.0 |
| 03010162xxyz |
4 |
95 |
1.60 |
0.206 |
2.4 |
50.2 |
| 03010163xxyz |
1 |
120 |
1.60 |
0.161 |
2.5 |
26.0 |
| 03010164xxyz |
2 |
120 |
1.60 |
0.161 |
2.5 |
46.2 |
| 03010165xxyz |
3 |
120 |
1.60 |
0.161 |
2.5 |
51.0 |
| 03010166xxyz |
4 |
120 |
1.60 |
0.161 |
2.5 |
55.7 |
| 03010167xxyz |
3 |
150 |
1.80 |
0.129 |
2.6 |
54.8 |
| 03010168xxyz |
4 |
150 |
1.80 |
0.129 |
2.6 |
62.1 |
| 03010169xxyz |
3 |
185 |
2.00 |
0.106 |
2.8 |
61.2 |
| 03010170xxyz |
4 |
185 |
2.00 |
0.106 |
2.8 |
68.5 |
| 03010171xxyz |
3 |
240 |
2.20 |
0.0801 |
3.0 |
69.7 |
| 03010172xxyz |
4 |
240 |
2.20 |
0.0801 |
3.0 |
77.9 |
| 03010173xxyz |
3 |
300 |
2.40 |
0.0641 |
3.2 |
75.7 |
| 03010174xxyz |
4 |
300 |
2.40 |
0.0641 |
3.2 |
84.4 |
Technical Data :-
- Approvals : IS 694 marked, FIA/TAC
- Conductor : Electrolytic grade annealed copper Class 5 as per IS 8130
- Standard Cable Colour : Black, grey & white
- Voltage Rating : Up to and including 1100V
- Packing : Standard packing of 100 mtr. in coil. Longer length available
on request
Application :-
- PVC and FR PVC 70°C cables suitable for wiring in residential and
commercial infrastructure.
- HR PVC 85°C cables are suitable for wiring in residential and commercial
infrastructure for a higher ambient temperature.
- FR-LSH cables are suitable for wiring in public places like schools,
hospitals, theatres, etc.
Cable Design Parameters :-
| Part Number |
Nominal Cross Sectional Area(Sq. mm) |
No. of Cores |
Nominal Insulation Thickness (mm) |

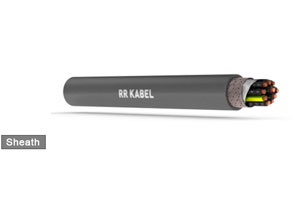

Nominal Thickness of Sheath |
Maximum Overall Dimensions (mm) |
| 03020101xxyz |
0.5 |
6 |
0.6 |
0.9 |
9.5 |
| 03020102xxyz |
0.5 |
7 |
0.6 |
0.9 |
9.5 |
| 03020103xxyz |
0.5 |
8 |
0.6 |
1.0 |
11.1 |
| 03020104xxyz |
0.5 |
9 |
0.6 |
1.0 |
11.8 |
| 03020105xxyz |
0.5 |
10 |
0.6 |
1.0 |
12.0 |
| 03020106xxyz |
0.5 |
11 |
0.6 |
1.0 |
12.0 |
| 03020107xxyz |
0.5 |
12 |
0.6 |
1.0 |
12.4 |
| 03020108xxyz |
0.5 |
13 |
0.6 |
1.0 |
13.1 |
| 03020109xxyz |
0.5 |
14 |
0.6 |
1.1 |
13.1 |
| 03020110xxyz |
0.5 |
15 |
0.6 |
1.1 |
13.5 |
| 03020111xxyz |
0.5 |
16 |
0.6 |
1.1 |
13.8 |
| 03020112xxyz |
0.5 |
17 |
0.6 |
1.1 |
14.6 |
| 03020113xxyz |
0.5 |
18 |
0.6 |
1.1 |
14.6 |
| 03020114xxyz |
0.5 |
19 |
0.6 |
1.1 |
14.6 |
| 03020115xxyz |
0.5 |
20 |
0.6 |
1.2 |
15.4 |
| 03020116xxyz |
0.5 |
21 |
0.6 |
1.2 |
15.4 |
| 03020117xxyz |
0.5 |
22 |
0.6 |
1.2 |
16.3 |
| 03020118xxyz |
0.5 |
23 |
0.6 |
1.2 |
16.3 |
| 03020119xxyz |
0.5 |
24 |
0.6 |
1.2 |
17.1 |
| 03020120xxyz |
0.5 |
25 |
0.6 |
1.2 |
17.1 |
| 03020121xxyz |
0.75 |
6 |
0.6 |
1.0 |
10.0 |
| 03020122xxyz |
0.75 |
7 |
0.6 |
1.0 |
10.0 |
| 03020123xxyz |
0.75 |
8 |
0.6 |
1.0 |
11.8 |
| 03020124xxyz |
0.75 |
9 |
0.6 |
1.1 |
12.4 |
| 03020125xxyz |
0.75 |
10 |
0.6 |
1.1 |
12.7 |
| 03020126xxyz |
0.75 |
11 |
0.6 |
1.1 |
12.7 |
| 03020127xxyz |
0.75 |
12 |
0.6 |
1.1 |
13.1 |
| 03020128xxyz |
0.75 |
13 |
0.6 |
1.1 |
13.8 |
| 03020129xxyz |
0.75 |
14 |
0.6 |
1.1 |
13.8 |
| 03020130xxyz |
0.75 |
15 |
0.6 |
1.2 |
14.3 |
| 03020131xxyz |
0.75 |
16 |
0.6 |
1.2 |
14.6 |
| 03020132xxyz |
0.75 |
17 |
0.6 |
1.2 |
15.4 |
| 03020133xxyz |
0.75 |
18 |
0.6 |
1.2 |
15.4 |
| 03020134xxyz |
0.75 |
19 |
0.6 |
1.2 |
15.4 |
| 03020135xxyz |
0.75 |
20 |
0.6 |
1.3 |
16.3 |
| 03020136xxyz |
0.75 |
21 |
0.6 |
1.3 |
16.3 |
| 03020137xxyz |
0.75 |
22 |
0.6 |
1.3 |
17.3 |
| 03020138xxyz |
0.75 |
23 |
0.6 |
1.3 |
17.3 |
| 03020139xxyz |
0.75 |
24 |
0.6 |
1.3 |
18.2 |
| 03020140xxyz |
0.75 |
25 |
0.6 |
1.3 |
19.0 |
| 03020141xxyz |
1.0 |
6 |
0.6 |
1.0 |
10.5 |
| 03020142xxyz |
1.0 |
7 |
0.6 |
1.0 |
10.5 |
| 03020143xxyz |
1.0 |
8 |
0.6 |
1.0 |
12.4 |
| 03020144xxyz |
1.0 |
9 |
0.6 |
1.1 |
13.1 |
| 03020145xxyz |
1.0 |
10 |
0.6 |
1.1 |
13.4 |
| 03020146xxyz |
1.0 |
11 |
0.6 |
1.1 |
13.4 |
| 03020147xxyz |
1.0 |
12 |
0.6 |
1.1 |
13.9 |
| 03020148xxyz |
1.0 |
13 |
0.6 |
1.1 |
14.6 |
| 03020149xxyz |
1.0 |
14 |
0.6 |
1.1 |
14.6 |
| 03020150xxyz |
1.0 |
15 |
0.6 |
1.2 |
15.1 |
| 03020151xxyz |
1.0 |
16 |
0.6 |
1.2 |
15.4 |
| 03020152xxyz |
1.0 |
17 |
0.6 |
1.2 |
16.3 |
| 03020153xxyz |
1.0 |
18 |
0.6 |
1.3 |
16.3 |
| 03020154xxyz |
1.0 |
19 |
0.6 |
1.3 |
16.3 |
| 03020155xxyz |
1.0 |
20 |
0.6 |
1.4 |
17.3 |
| 03020156xxyz |
1.0 |
21 |
0.6 |
1.4 |
17.3 |
| 03020157xxyz |
1.0 |
22 |
0.6 |
1.4 |
18.2 |
| 03020158xxyz |
1.0 |
23 |
0.6 |
1.4 |
18.2 |
| 03020159xxyz |
1.0 |
24 |
0.6 |
1.4 |
19.2 |
| 03020160xxyz |
1.0 |
25 |
0.6 |
1.4 |
19.2 |
| 03020161xxyz |
1.5 |
6 |
0.6 |
1.0 |
12.4 |
| 03020162xxyz |
1.5 |
7 |
0.6 |
1.0 |
12.4 |
| 03020163xxyz |
1.5 |
8 |
0.6 |
1.1 |
14.7 |
| 03020164xxyz |
1.5 |
9 |
0.6 |
1.1 |
15.6 |
| 03020165xxyz |
1.5 |
10 |
0.6 |
1.1 |
16.0 |
| 03020166xxyz |
1.5 |
11 |
0.6 |
1.1 |
16.0 |
| 03020167xxyz |
1.5 |
12 |
0.6 |
1.1 |
16.5 |
| 03020168xxyz |
1.5 |
13 |
0.6 |
1.2 |
17.4 |
| 03020169xxyz |
1.5 |
14 |
0.6 |
1.2 |
17.4 |
| 03020170xxyz |
1.5 |
15 |
0.6 |
1.2 |
18.1 |
| 03020171xxyz |
1.5 |
16 |
0.6 |
1.2 |
18.4 |
| 03020172xxyz |
1.5 |
17 |
0.6 |
1.3 |
19.5 |
| 03020173xxyz |
1.5 |
18 |
0.6 |
1.3 |
19.5 |
| 03020174xxyz |
1.5 |
19 |
0.6 |
1.3 |
19.5 |
| 03020175xxyz |
1.5 |
20 |
0.6 |
1.4 |
20.7 |
| 03020176xxyz |
1.5 |
21 |
0.6 |
1.4 |
20.7 |
| 03020177xxyz |
1.5 |
22 |
0.6 |
1.4 |
21.9 |
| 03020178xxyz |
1.5 |
23 |
0.6 |
1.4 |
21.9 |
| 03020179xxyz |
1.5 |
24 |
0.6 |
1.4 |
23.0 |
| 03020180xxyz |
1.5 |
25 |
0.6 |
1.4 |
23.0 |
| 03020181xxyz |
2.5 |
6 |
0.7 |
1.1 |
14.5 |
| 03020182xxyz |
2.5 |
7 |
0.7 |
1.1 |
15.5 |
| 03020183xxyz |
2.5 |
8 |
0.7 |
1.2 |
17.3 |
| 03020184xxyz |
2.5 |
9 |
0.7 |
1.3 |
18.3 |
| 03020185xxyz |
2.5 |
10 |
0.7 |
1.3 |
18.7 |
| 03020186xxyz |
2.5 |
11 |
0.7 |
1.3 |
18.7 |
| 03020187xxyz |
2.5 |
12 |
0.7 |
1.3 |
19.4 |
| 03020188xxyz |
2.5 |
13 |
0.7 |
1.3 |
20.5 |
| 03020189xxyz |
2.5 |
14 |
0.7 |
1.3 |
20.5 |
| 03020190xxyz |
2.5 |
15 |
0.7 |
1.4 |
21.3 |
| 03020191xxyz |
2.5 |
16 |
0.7 |
1.4 |
21.7 |
| 03020192xxyz |
2.5 |
17 |
0.7 |
1.4 |
23.0 |
| 03020193xxyz |
2.5 |
18 |
0.7 |
1.4 |
23.3 |
| 03020194xxyz |
2.5 |
19 |
0.7 |
1.4 |
23.8 |
| 03020195xxyz |
2.5 |
20 |
0.7 |
1.4 |
24.4 |
| 03020196xxyz |
2.5 |
21 |
0.7 |
1.5 |
25.0 |
| 03020197xxyz |
2.5 |
22 |
0.7 |
1.5 |
25.8 |
| 03020198xxyz |
2.5 |
23 |
0.7 |
1.5 |
26.3 |
| 03020199xxyz |
2.5 |
24 |
0.7 |
1.5 |
27.2 |
| 03020200xxyz |
2.5 |
25 |
0.7 |
1.5 |
27.9 |
Application :-
- For use in connections of household appliances, plant and machinery,
wiring purposes and for manufacturing cords.
Standard :-
- BS EN 50525-2-11, DIN EN 50525-2-11; VDE 0285-525-2-11, EN 50525-2-11.
Technical Data :-
- Nominal Voltage : 300/500V (H05VV-F & H05VVH2-F); 300/300V (H03VV-F &
H03VVH2-F)
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed Installation : -30°C to +70°C
- Minimum Bending Radius : Fixed installation 5 x cable ø
- Test Voltage : 4000V
- Breakdown Voltage : Min. 8000V
Cable Construction :-

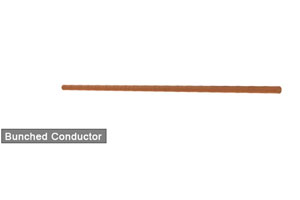

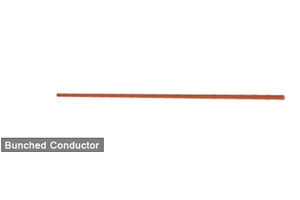

- Bare copper, fine wire conductors, as per EN 60228 Cl.5.

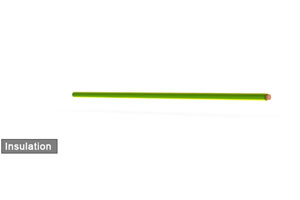

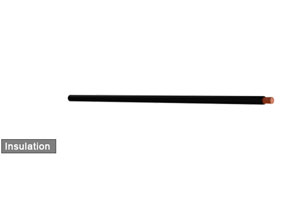

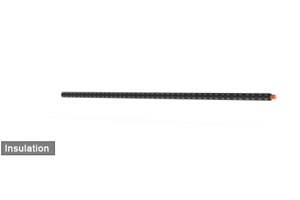

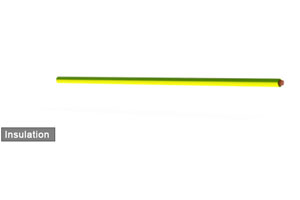

- PVC core insulation TI2, to EN 50363-3.
- Harmonised core colour to HD 308.

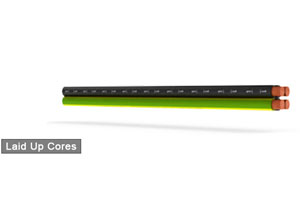

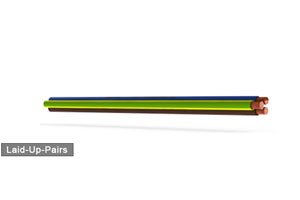

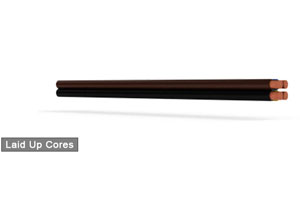

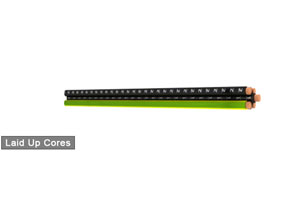

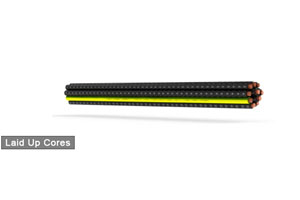

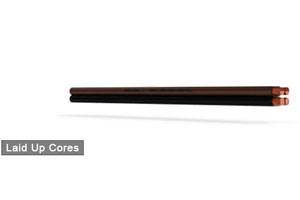

- Cores stranded in layers with optimal lay-length.

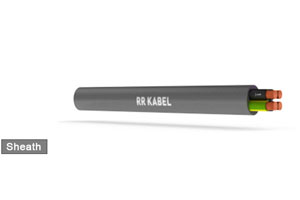

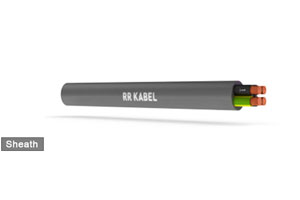

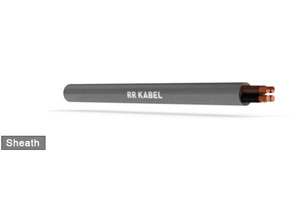

- PVC outer sheath TM2, to EN 50363-4.1.
- H05VV-F is also available in oil resistant variant as H05VV5-F.
- The outer sheath provided here is of special PVC, TM5 to BS EN
50363-4.1.
Cable Design Parameters :-
|
|
Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq. mm) |
Approx. CableDiameter (mm) |
| H03VV-F |
03030101001z |
2 |
x |
| 03030102001z |
2 |
x |
| 03030103001z |
3 |
x |
| 03030104001z |
3 |
G |
| 03030105001z |
3 |
x |
| 03030106001z |
3 |
G |
| 03030107001z |
4 |
x |
| 03030108001z |
4 |
G |
| 03030109001z |
4 |
x |
| 03030110001z |
4 |
G |
| H03VVH2-F |
03030111001z |
2 |
x |
| 03030112001z |
2 |
x |
| H05VVH2-F |
03030113001z |
2 |
x |
| 03030114001z |
2 |
x |
| 03030115001z |
2 |
x |
| H05VV-F |
03030116001z |
2 |
x |
| 03030117001z |
2 |
x |
| 03030118001z |
2 |
x |
| 03030119001z |
2 |
x |
| 03030120001z |
2 |
x |
| 03030121001z |
3 |
G |
| 03030122001z |
3 |
x |
| 03030123001z |
3 |
G |
| 03030124001z |
3 |
x |
| 03030125001z |
3 |
G |
| 03030126001z |
3 |
x |
| 03030127001z |
3 |
G |
| 03030128001z |
3 |
x |
| 03030129001z |
3 |
G |
| 03030130001z |
3 |
x |
| 03030131001z |
4 |
G |
| 03030132001z |
4 |
x |
| 03030133001z |
4 |
G |
| 03030134001z |
4 |
x |
| 03030135001z |
4 |
G |
| 03030136001z |
4 |
x |
| 03030137001z |
4 |
G |
| 03030138001z |
4 |
x |
| 03030139001z |
4 |
G |
| 03030140001z |
4 |
x |
| 03030141001z |
5 |
G |
| 03030142001z |
5 |
x |
| 03030143001z |
5 |
G |
| 03030144001z |
5 |
x |
| 03030145001z |
5 |
G |
| 03030146001z |
5 |
x |
| 03030147001z |
5 |
G |
| 03030148001z |
5 |
x |
| 03030149001z |
5 |
G |
| 03030150001z |
5 |
x |

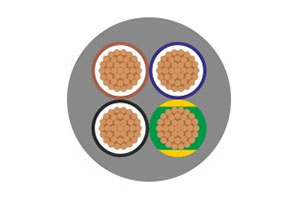

Application :-
- For use in connections of household appliances, plant and machinery,
wiring purposes and for manufacturing cords.
Standard :-
- Adapted to DIN VDE 0281, 0293, 0295 with insulation thickness for 1.0 kV
type.
Technical Data :-
- Nominal Voltage : U /U 450/750V o
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed Installation : -30°C to +70°C
- Minimum Bending Radius : Fixed installation 5 x cable ø
- Test Voltage : 4000V
- Breakdown Voltage : Min. 8000V

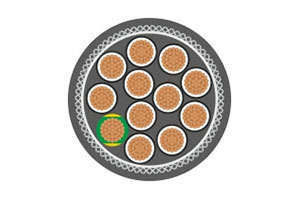

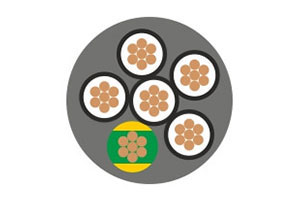

Cable Construction :-
- Bare copper, fine wire conductors, as per EN 60228 Cl.5.
- Special PVC core insulation TI2, to EN 50363-3
- Harmonised core colour to HD 308.

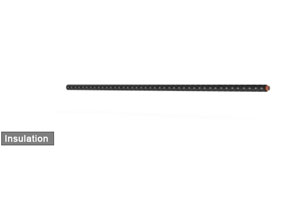

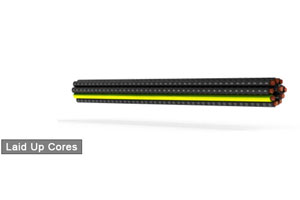

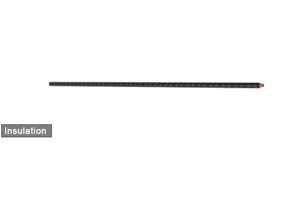

- For cores above 5 cores black core with continuous white numbering
according to DIN VDE 0293.

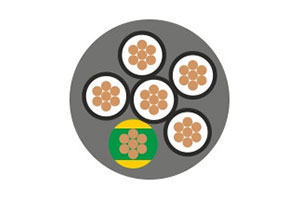

- Green-Yellow earth core in outer layer (3 cores and above).

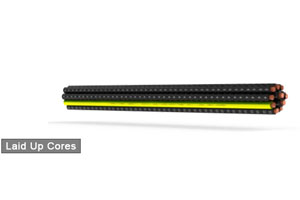

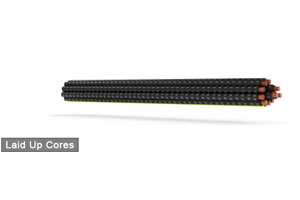

- Cores stranded in layers with optimal lay-length.

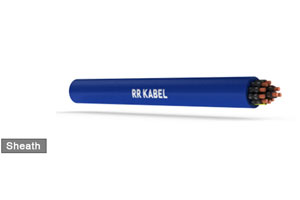

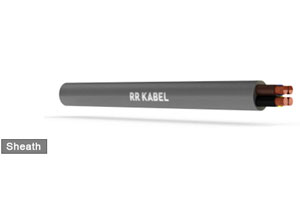

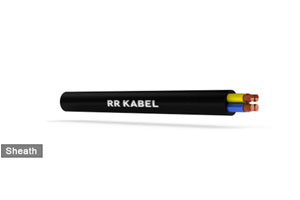

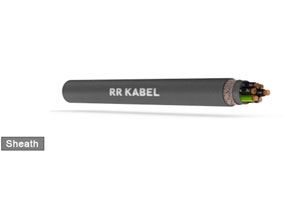

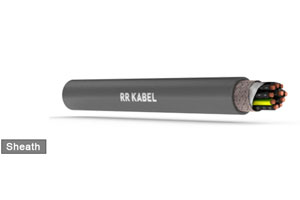

- Special PVC outer sheath TM2, to EN 50363-4.1.
- Colour Grey (RAL 7001).
Cable Design Parameters :-
| Part Number |
No. of Cores and Nominal Cross Sectional Area
(Sq. mm) |
Approx. Cable Diameter (mm) |
|
| 030400201205 |
2 x 2.5 |
9.1 |
| 030400311205 |
3G 2.5 |
9.9 |
| 030400301205 |
3 x 2.5 |
9.9 |
| 030400411205 |
4G 2.5 |
11.1 |
| 030400401205 |
4 x 2.5 |
11.1 |
| 030400511205 |
5G 2.5 |
12.4 |
| 030400501205 |
5 x 2.5 |
12.4 |
| 030400611205 |
6G 2.5 |
13.3 |
| 030400711205 |
7G 2.5 |
14.6 |
| 030400200004 |
2 x 4 |
10.4 |
| 030400310004 |
3G 4 |
11.2 |
| 030400410004 |
4G 4 |
12.5 |
| 030400510004 |
5G 4 |
13.9 |
| 030400710004 |
7G 4 |
16.8 |
| 030401110004 |
11G 4 |
22.3 |
| 030400310006 |
3G 6 |
12.6 |
| 030400410006 |
4G 6 |
14.0 |
| 030400510006 |
5G 6 |
15.5 |
| 030400710006 |
7G 6 |
19.0 |
| 030400310010 |
3G 10 |
16.0 |
| 030400410010 |
4G 10 |
18.0 |
| 030400510010 |
5G 10 |
20.0 |
| 030400710010 |
7G 10 |
23.1 |
| 030400310016 |
3G 16 |
18.5 |
| 030400410016 |
4G 16 |
20.8 |
| 030400510016 |
5G 16 |
23.0 |
| 030400710016 |
7G 16 |
31.0 |
| 030400310025 |
3G 25 |
23.3 |
| 030400410025 |
4G 25 |
26.0 |
| 030400510025 |
5G 25 |
29.0 |
| 030400310035 |
3G 35 |
26.6 |
| 030400410035 |
4G 35 |
29.7 |
| 030400510035 |
5G 35 |
33.1 |
| 030400310050 |
3G 50 |
30.2 |
| 030400410050 |
4G 50 |
33.9 |
| 030400510050 |
5G 50 |
37.6 |
| 030400310070 |
3G 70 |
37.1 |
| 030400410070 |
4G 70 |
41.6 |
| 030400510070 |
5G 70 |
46.3 |
| 030400310095 |
3G 95 |
40.1 |
| 030400410095 |
4G 95 |
44.8 |
| 030400510095 |
5G 95 |
50.2 |
| 030400310120 |
3G 120 |
45.5 |
| 030400410120 |
4G 120 |
50.8 |
| 030400410150 |
4G 150 |
57.0 |
| 030400410185 |
4G 185 |
65.8 |

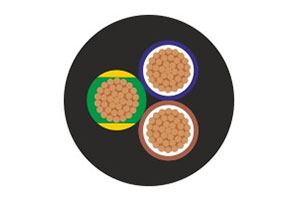

H03 / H05V2V2H2-F & H03 / H05V2V2-F PVC 90OC
Application :-
- For use in connections of household appliances and internal wiring
purposes with high ambient temperatures and humid spaces
Standard :-
Technical Data :-
- Nominal Voltage : 300 / 500V (H05V2V2H2-F / H05V2V2-F); 300 / 300V
(H03V2V2H2-F / H03V2V2-F)
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +90°C
- Fixed Installation : -30°C to +70°C
- Test Voltage : 4000V
- Breakdown Voltage : Min. 8000V
Cable Construction :-

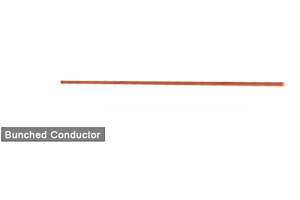

- Bare copper, fine wire conductors, as per EN 60228 Cl.5.

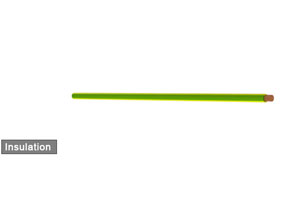

- PVC core insulation TI3, to EN 50363-3.
- Harmonised core colour to HD 308.

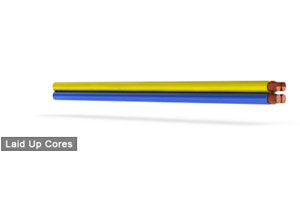

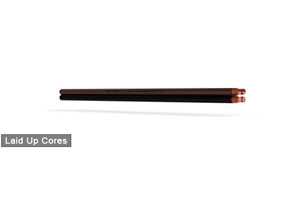

- Cores stranded in layers with optimal lay-length.
Cable Design Parameters :-
- Please complete the part numbers for these cables by adding the suffix
(in place of ‘z’) for the sheath colour required, 1 – black (RAL 9005),
2 – grey (RAL 7001), 3 – white (RAL 9010).
Cable Design Parameters :-
|
Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq. mm)
|
Approx. Cable Diameter (mm) |
| H03V2V2-F |
03050101001z |
2 x 0.5 |
5.1 |
| 03050102001z |
2 x 0.75 |
5.5 |
| 03050103001z |
3 x 0.5 |
5.3 |
| 03050104001z |
3 G 0.5 |
5.3 |
| 03050105001z |
3 x 0.75 |
5.7 |
| 03050106001z |
3 G 0.75 |
5.7 |
| 03050107001z |
4 x 0.5 |
5.8 |
| 03050108001z |
4 G 0.5 |
5.8 |
| 03050109001z |
4 x 0.75 |
6.3 |
| 03050110001z |
4 G 0.75 |
6.3 |
| H05V2V2H2-F |
03050111001z |
2 x 0.5 |
5.1 X 3.2 |
| 03050112001z |
2 x 0.75 |
5.5 X 3.4 |
| 03050113001z |
2 x 0.75 |
6.3 X 4.0 |
| 03050114001z |
2 x 1.0 |
6.6 X 4.1 |
| 03050115001z |
2 x 1.5 |
7.7 x 4.7 |
| H05V2V2-F |
03050116001z |
2 x 0.75 |
6.2 |
| 03050117001z |
2 x 1.0 |
6.5 |
| 03050118001z |
2 x 1.5 |
7.5 |
| 03050119001z |
2 x 2.5 |
9.1 |
| 03050120001z |
2 x 4 |
10.3 |
| 03050121001z |
3 x 0.75 |
6.6 |
| 03050122001z |
3 G 0.75 |
6.6 |
| 03050123001z |
3 x 1.0 |
6.9 |
| 03050124001z |
3 G 1.0 |
6.9 |
| 03050125001z |
3 x 1.5 |
8.1 |
| 03050126001z |
3 G 1.5 |
8.1 |
| 03050127001z |
3 x 2.5 |
9.9 |
| 03050128001z |
3 G 2.5 |
9.9 |
| 03050129001z |
3 x 4 |
11.2 |
| 03050130001z |
3 G 4 |
11.2 |
| 03050131001z |
4 x 0.75 |
7.2 |
| 03050132001z |
4 G 0.75 |
7.2 |
| 03050133001z |
4 x 1.0 |
7.7 |
| 03050134001z |
4 G 1.0 |
7.7 |
| 03050135001z |
4 x 1.5 |
9.0 |
| 03050136001z |
4 G 1.5 |
9.0 |
| 03050137001z |
4 x 2.5 |
10.8 |
| 03050138001z |
4 G 2.5 |
10.8 |
| 03050139001z |
4 x 4 |
12.2 |
| 03050140001z |
4 G 4 |
12.2 |
| 03050141001z |
5 x 0.75 |
8.0 |
| 03050142001z |
5 G 0.75 |
8.0 |
| 03050143001z |
5 x 1.0 |
8.3 |
| 03050144001z |
5 G 1.0 |
8.3 |
| 03050145001z |
5 x 1.5 |
10.0 |
| 03050146001z |
5 G 1.5 |
10.0 |
| 03050147001z |
5 x 2.5 |
12.0 |
| 03050148001z |
5 G 2.5 |
12.0 |
| 03050149001z |
5 x 4 |
13.7 |
| 03050150001z |
5 G 4 |
13.7 |
Application :-
- For use as a data and control cable in machinery, computer systems etc.
as well as a signal cable for electronics. The high level of screening
ensures a high degree of interference protection. The dense screening
assures disturbance-free transmission of all signals and impulses. The
PVC-inner sheaths of these cables raise the mechanical strength. The

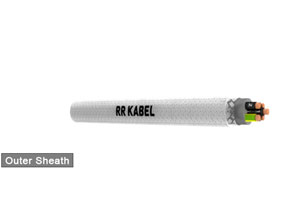

applied clear transparent PVC outer sheath accentuates the optical view
of the tinned copper braid. These cables are suitable for flexible use
for medium mechanical stresses with free movements.
Standard :-
- Adapted to DIN/BS EN 50525-2-51.
Technical Data :-
- Nominal Voltage : U / U 300 / 500V up to 1.5 mm². U / U 450 / 750V at
4.0 mm² and above O O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius: Flexing 20 x cable ø. Fixed installation 6 x
cable ø
- Test Voltage : 4000V
- Breakdown Voltage : Min. 8000V

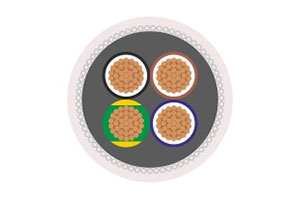

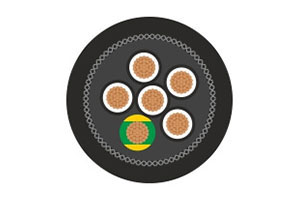

Cable Construction :-
- Bare copper, fine wire conductors, bunch stranded EN 60228 Cl. 5.
- Core insulation of TI2, EN 50363-3.
- Cores colour coded as per JB/OB colour code.
- Green/yellow earth core in outer layer (3 cores and above).

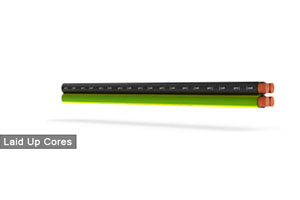

- Cores stranded in layers with optimal lay-length.

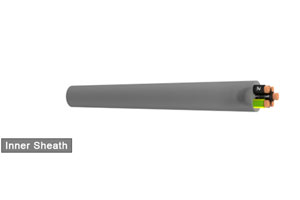

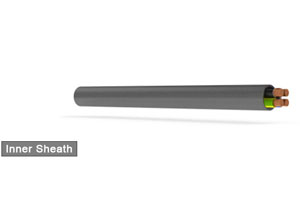

- Special PVC inner jacket.
- Tinned copper, braided screen, approx 85% coverage.

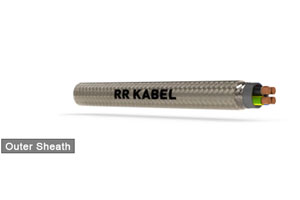

- Transparent special PVC outer sheath.
- Core identification code : As per VDE 0293-302/HD 308 S2
Cable Design Parameters :-
| Part Number |
No. of Cores and
Nominal Cross Sectional Area
(Sq. mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
|
| 030601010216 |
2 x 0.5 |
7.9 |
37 |
124 |
| 030601020116 |
3G 0.5 |
8.3 |
44 |
139 |
| 030601030116 |
4G 0.5 |
8.8 |
53 |
168 |
| 030601040116 |
5G 0.5 |
9.6 |
60 |
205 |
| 030601050116 |
7G 0.5 |
10.2 |
76 |
243 |
| 030601060216 |
2 x 0.75 |
8.3 |
44 |
140 |
| 030601070116 |
3G 0.75 |
8.7 |
54 |
160 |
| 030601080116 |
4G 0.75 |
9.5 |
66 |
198 |
| 030601090116 |
5G 0.75 |
10.1 |
78 |
239 |
| 030601100116 |
7G 0.75 |
10.8 |
99 |
286 |
| 030601110216 |
2 x 1 |
8.6 |
53 |
156 |
| 030601120116 |
3G 1 |
9.2 |
65 |
182 |
| 030601130116 |
4G 1 |
9.8 |
79 |
221 |
| 030601140116 |
5G 1 |
10.7 |
94 |
272 |
| 030601150116 |
7G 1 |
11.5 |
122 |
328 |
| 030601160216 |
2 x 1.5 |
9.7 |
66 |
198 |
| 030601170116 |
3G 1.5 |
10.2 |
87 |
231 |
| 030601180116 |
4G 1.5 |
11.1 |
106 |
286 |
| 030601190116 |
5G 1.5 |
12.4 |
129 |
368 |
| 030601200116 |
7G 1.5 |
13.2 |
165 |
442 |
| 030601210216 |
2 x 2.5 |
11.2 |
95 |
271 |
| 030601220116 |
3G 2.5 |
11.8 |
126 |
318 |
| 030601230116 |
4G 2.5 |
13.1 |
159 |
412 |
| 030601240116 |
5G 2.5 |
14.3 |
193 |
511 |
| 030601250116 |
7G 2.5 |
15.4 |
257 |
624 |
| 30601260116 |
4G 4 |
13.4 |
264 |
565 |
| 30601270116 |
5G 4 |
14.8 |
317 |
697 |
| 30601280116 |
4G 6 |
15.6 |
365 |
732 |
| 30601290116 |
5G 6 |
17.0 |
442 |
909 |
| 30601300116 |
3G 10 |
17.8 |
453 |
889 |
| 30601310116 |
4G 10 |
19.7 |
580 |
1125 |
| 30601320116 |
5G 10 |
21.6 |
711 |
1408 |
| 30601330116 |
3G 16 |
20.7 |
707 |
1274 |
| 30601340116 |
4G 16 |
22.6 |
917 |
1618 |
| 30601350116 |
5G 16 |
25.2 |
1128 |
2047 |
| 30601330116 |
3G 25 |
26.3 |
1064 |
1965 |
| 30601340116 |
4G 25 |
28.9 |
1386 |
2512 |
| 30601350116 |
5G 25 |
31.8 |
1708 |
3153 |
| 30601360116 |
3G 35 |
29.4 |
1453 |
2554 |
| 30601370116 |
4G 35 |
32.2 |
1900 |
3259 |
| 30601380116 |
5G 35 |
36.0 |
2347 |
4133 |
| 30601390116 |
3G 50 |
35.1 |
2048 |
3653 |
| 30601380116 |
4G 50 |
38.8 |
2688 |
4701 |
| 30601390116 |
4G 70 |
43.7 |
3732 |
6229 |
| 30601400116 |
4G 95 |
50.4 |
4915 |
8123 |
| 30601410116 |
4G 120 |
56.8 |
6198 |
10118 |
| 30601420116 |
4G 150 |
62.2 |
7600 |
12511 |
| 30601430116 |
4G 185 |
67.8 |
9334 |
15306 |
Application :-

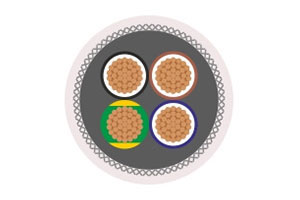

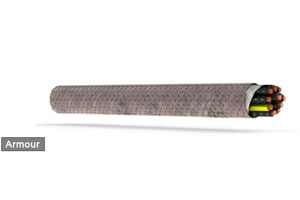

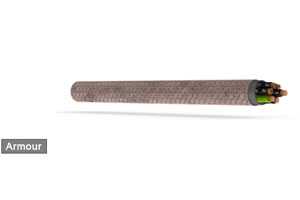

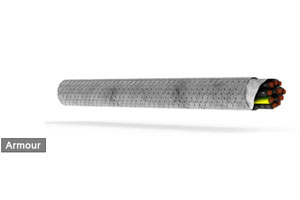

- JB-YSY cables are used as measuring and control cables in tool
machinery, plant installation, power stations and in data equipment. The

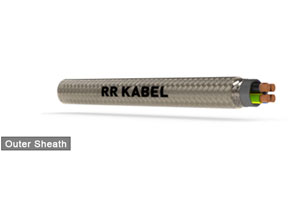

steel braid ensures best possible protection against mechanical damage.
The galvanized coating on the steel wire braiding not only helps protect
against corrosion, but also notably improves the soldering properties.
Standard :-
- Adapted to DIN/BS EN 50525-2-51.
Technical Data :-
- Nominal Voltage : U / U 300 / 500V up to 1.5 mm². U /U 450/750V at 4.0
mm² and above O O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius: Flexing 20 x cable ø. Fixed installation 6 x
cable ø
- Test Voltage : 4000V
- Breakdown Voltage : Min. 8000V

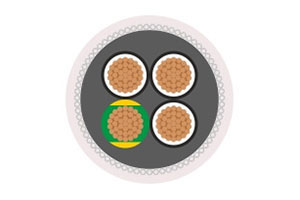

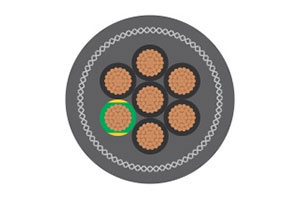

Cable Construction :-
- Bare copper, fine wire conductors, bunch stranded EN 60228 Cl. 5.
- Core insulation of TI2, EN 50363-3.
- Cores colour coded as per JB/OB colour code.
- Green/yellow earth core in outer layer (3 cores and above).
- Cores stranded in layers with optimal lay-length.
- Special PVC inner jacket.
- Tinned copper, braided screen, approx 85% coverage.
- Transparent special PVC outer sheath.
- Core identification code : As per VDE 0293-302/HD 308 S2
Cable Design Parameters :-
| Part Number |
No. of Cores and
Nominal Cross Sectional Area
(Sq. mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
|
| 030601010216 |
2 x 0.5 |
7.9 |
37 |
124 |
| 030601020116 |
3G 0.5 |
8.3 |
44 |
139 |
| 030601030116 |
4G 0.5 |
8.8 |
53 |
168 |
| 030601040116 |
5G 0.5 |
9.6 |
60 |
205 |
| 030601050116 |
7G 0.5 |
10.2 |
76 |
243 |
| 030601060216 |
2 x 0.75 |
8.3 |
44 |
140 |
| 030601070116 |
3G 0.75 |
8.7 |
54 |
160 |
| 030601080116 |
4G 0.75 |
9.5 |
66 |
198 |
| 030601090116 |
5G 0.75 |
10.1 |
78 |
239 |
| 030601100116 |
7G 0.75 |
10.8 |
99 |
286 |
| 030601110216 |
2 x 1 |
8.6 |
53 |
156 |
| 030601120116 |
3G 1 |
9.2 |
65 |
182 |
| 030601130116 |
4G 1 |
9.8 |
79 |
221 |
| 030601140116 |
5G 1 |
10.7 |
94 |
272 |
| 030601150116 |
7G 1 |
11.5 |
122 |
328 |
| 030601160216 |
2 x 1.5 |
9.7 |
66 |
198 |
| 030601170116 |
3G 1.5 |
10.2 |
87 |
231 |
| 030601180116 |
4G 1.5 |
11.1 |
106 |
286 |
| 030601190116 |
5G 1.5 |
12.4 |
129 |
368 |
| 030601200116 |
7G 1.5 |
13.2 |
165 |
442 |
| 030601210216 |
2 x 2.5 |
11.2 |
95 |
271 |
| 030601220116 |
3G 2.5 |
11.8 |
126 |
318 |
| 030601230116 |
4G 2.5 |
13.1 |
159 |
412 |
| 030601240116 |
5G 2.5 |
14.3 |
193 |
511 |
| 030601250116 |
7G 2.5 |
15.4 |
257 |
624 |
| 30601260116 |
4G 4 |
13.4 |
264 |
565 |
| 30601270116 |
5G 4 |
14.8 |
317 |
697 |
| 30601280116 |
4G 6 |
15.6 |
365 |
732 |
| 30601290116 |
5G 6 |
17.0 |
442 |
909 |
| 30601300116 |
3G 10 |
17.8 |
453 |
889 |
| 30601310116 |
4G 10 |
19.7 |
580 |
1125 |
| 30601320116 |
5G 10 |
21.6 |
711 |
1408 |
| 30601330116 |
3G 16 |
20.7 |
707 |
1274 |
| 30601340116 |
4G 16 |
22.6 |
917 |
1618 |
| 30601350116 |
5G 16 |
25.2 |
1128 |
2047 |
| 30601330116 |
3G 25 |
26.3 |
1064 |
1965 |
| 30601340116 |
4G 25 |
28.9 |
1386 |
2512 |
| 30601350116 |
5G 25 |
31.8 |
1708 |
3153 |
| 30601360116 |
3G 35 |
29.4 |
1453 |
2554 |
| 30601370116 |
4G 35 |
32.2 |
1900 |
3259 |
| 30601380116 |
5G 35 |
36.0 |
2347 |
4133 |
| 30601390116 |
3G 50 |
35.1 |
2048 |
3653 |
| 30601380116 |
4G 50 |
38.8 |
2688 |
4701 |
| 30601390116 |
4G 70 |
43.7 |
3732 |
6229 |
| 30601400116 |
4G 95 |
50.4 |
4915 |
8123 |
| 30601410116 |
4G 120 |
56.8 |
6198 |
10118 |
| 30601420116 |
4G 150 |
62.2 |
7600 |
12511 |
| 30601430116 |
4G 185 |
67.8 |
9334 |
15306 |
Application :-
- For flexible use with medium and free movement without tensile stress or
forced movements in dry, moist and wet rooms as well as outside (fixed
installation). These cables are used for manufacturing machines, machine
tools. Also used in conveyor belts and product lines.
Standard :-
- Adapted to DIN VDE 0262, DIN VDE 0281 Part 13 with increased insulation
thickness for 1 kV.
Technical Data :-
- Nominal Voltage : U / U 0.6 / 1 kV O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Occasional flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius : Flexing 15 x cable ø. Fixed installation 4 x
cable ø
- Test Voltage : 4000V
- Breakdown Voltage : Min. 8000V

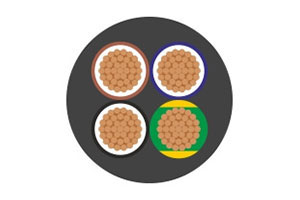

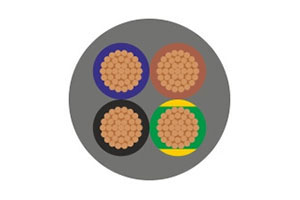

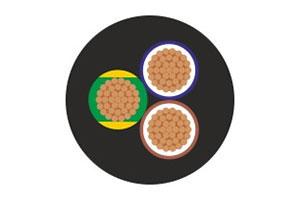

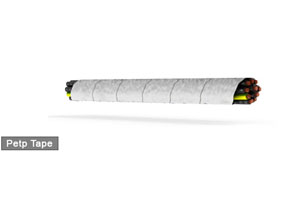

Cable Construction :-
- Bare copper, fine wire conductors, to EN 60228 Cl.5.
- Core insulation of PVC, TI2 to EN 50363-3.
- Cores colour coded as per JB/OB colour code.
- Cores stranded in layers with optimal lay-length.
- Jacket of TM2, EN 50363-4-1, color black RAL 9005.
- Core identification code : As per VDE 0293-302/HD 308 S2
Cable Construction :-
- Please complete the part numbers for these cables by adding the suffix
(in place of ‘z’) for the sheath colour required, 1 – black (RAL 9005),
2 – grey (RAL 7001), 3 – white (RAL 9010).
Cable Design Parameters :-
| Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq.
mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
|
| 030800200001 |
2 x 1 |
8.6 |
19 |
101 |
| 030800310001 |
3G 1 |
9.0 |
28 |
117 |
| 030800410001 |
4G 1 |
9.6 |
38 |
138 |
| 030800510001 |
5G 1 |
10.4 |
47 |
164 |
| 030800201105 |
2 x 1.5 |
9.6 |
28 |
129 |
| 030800311105 |
3G 1.5 |
10.1 |
42 |
152 |
| 030800411105 |
4G 1.5 |
10.8 |
56 |
181 |
| 030800511105 |
5G 1.5 |
11.7 |
69 |
216 |
| 030800201205 |
2 x 2.5 |
10.8 |
46 |
173 |
| 030800311205 |
3G 2.5 |
11.3 |
69 |
205 |
| 030800411205 |
4G 2.5 |
12.2 |
93 |
249 |
| 030800511205 |
5G 2.5 |
13.3 |
116 |
301 |
| 030800410004 |
4G 4 |
13.8 |
147 |
344 |
| 030800410006 |
4G 6 |
15.1 |
221 |
450 |
| 030800410010 |
4G 10 |
18.7 |
376 |
723 |
| 030800410016 |
4G 16 |
21.3 |
626 |
1058 |
| 030800410025 |
4G 25 |
26.2 |
974 |
1623 |
| 030800410035 |
4G 35 |
29.1 |
1372 |
2150 |
| 030800410050 |
4G 50 |
35.6 |
1968 |
3144 |
| 030800410070 |
4G 70 |
40.5 |
2747 |
4245 |
| 030800410095 |
4G 95 |
46.6 |
3663 |
5639 |
| 030800410120 |
4G 120 |
53.3 |
4639 |
7242 |
Application :-
- These cables are used for flexible use for medium mechanical stresses
with free movement without tensile stress of forced movements in dry,
moist and wet rooms but not suitable for outdoor installation. Fit for
measuring and control cables in tool machines, conveyor belts production
lines in machinery production, in air-conditioning and steel production.
Standard :-
- Adapted to DIN VDE 0262, DIN VDE 0281 Part 13 with increased insulation
thickness for 1 kV.
Technical Data :-
- Nominal Voltage : U / U 300 / 500V O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed installation 4 x
cable ø
- Test Voltage : 4000V
- Breakdown Voltage : Min. 8000V

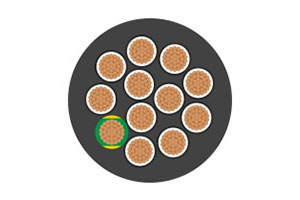

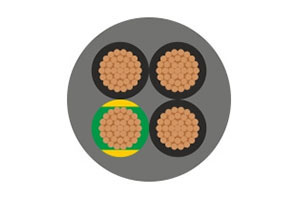

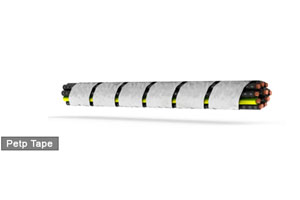

Cable Construction :-

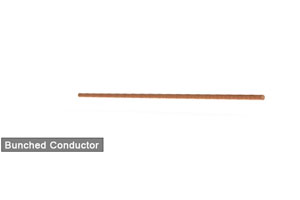

- Bare copper, fine wire conductors, to EN 60228 Cl.5.

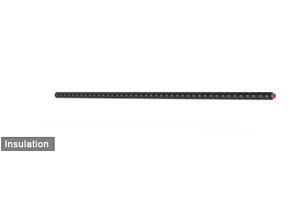

- Core insulation of special PVC TI2 EN 50363-3.
- Black core with continuous white numbering according to DIN VDE 0293.
- Green/yellow earth core in the outer layer (3 cores and above).

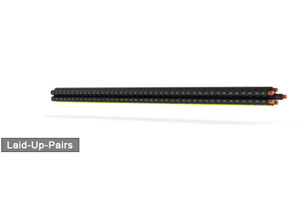

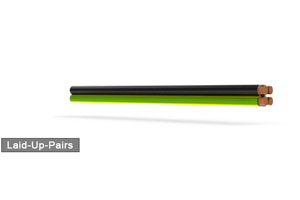

- Cores stranded in layers with optimal lay-length.

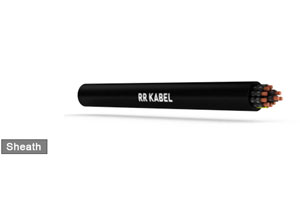

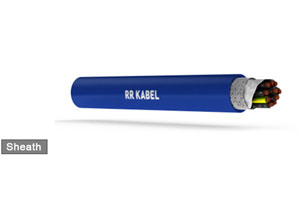

- Outer sheath of special PVC, TM2 to EN 50363-4.1.
- Colour grey (RAL 7001).
Cable Design Parameters :-
| Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq.
mm) |
Approx. CableDiameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
|
| 030900211050 |
2 x 0.5 |
4.8 |
9.5 |
35 |
| 030900311050 |
3G 0.5 |
5.1 |
14.0 |
42 |
| 030900301050 |
3 x 0.5 |
5.1 |
14.2 |
42 |
| 030900411050 |
4G 0.5 |
5.6 |
19.0 |
51 |
| 030900401050 |
4 x 0.5 |
5.6 |
19.0 |
51 |
| 030900511050 |
5G 0.5 |
6.0 |
24.0 |
61 |
| 030900501050 |
5 x 0.5 |
6.0 |
24.0 |
61 |
| 030900611050 |
6G 0.5 |
6.6 |
28.5 |
74 |
| 030900711050 |
7G 0.5 |
6.7 |
33.5 |
80 |
| 030900701050 |
7 x 0.5 |
6.7 |
33.5 |
80 |
| 030900811050 |
8G 0.5 |
7.9 |
38.0 |
103 |
| 030900801050 |
8 x 0.5 |
7.9 |
38.0 |
103 |
| 030901011050 |
10G 0.5 |
8.8 |
47.5 |
130 |
| 030901211050 |
12G 0.5 |
8.9 |
57.0 |
140 |
| 030901201050 |
12 x 0.5 |
8.9 |
57.0 |
140 |
| 030901411050 |
14G 0.5 |
10.0 |
66.5 |
170 |
| 030901611050 |
16G 0.5 |
10.2 |
76.0 |
184 |
| 030901811050 |
18G 0.5 |
10.5 |
85.5 |
200 |
| 030902011050 |
20G 0.5 |
11.8 |
95.0 |
239 |
| 030902111050 |
21G 0.5 |
11.9 |
100.0 |
246 |
| 030902511050 |
25G 0.5 |
12.9 |
118.5 |
293 |
| 030903011050 |
30G 0.5 |
13.5 |
142.5 |
329 |
| 030903211050 |
32G 0.5 |
14.0 |
152.0 |
354 |
| 030903411050 |
34G 0.5 |
14.3 |
161.5 |
373 |
| 030904011050 |
40G 0.5 |
15.3 |
190.0 |
429 |
| 030904211050 |
42G 0.5 |
16.6 |
199.0 |
486 |
| 030905011050 |
50G 0.5 |
18.2 |
237.0 |
581 |
| 030905211050 |
52G 0.5 |
18.2 |
246.5 |
589 |
| 030906111050 |
61G 0.5 |
19.4 |
289.5 |
680 |
| 030906511050 |
65G 0.5 |
20.4 |
308.5 |
740 |
| 030908011050 |
80G 0.5 |
22.4 |
379.5 |
898 |
| 030910011050 |
100G 0.5 |
25.0 |
474.0 |
1119 |
| 030900201075 |
2 x 0.75 |
5.3 |
14.5 |
44 |
| 030900311075 |
3G 0.75 |
5.6 |
21.5 |
54 |
| 030900301075 |
3 x 0.75 |
5.6 |
21.5 |
54 |
| 030900411075 |
4G 0.75 |
6.1 |
28.5 |
66 |
| 030900401075 |
4 x 0.75 |
6.1 |
28.5 |
66 |
| 030900511075 |
5G 0.75 |
6.9 |
36.0 |
85 |
| 030900501075 |
5 x 0.75 |
6.9 |
36.0 |
85 |
| 030900611075 |
6G 0.75 |
7.4 |
43.0 |
100 |
| 030900601075 |
6 x 0.75 |
7.4 |
43.0 |
100 |
| 030900711075 |
7G 0.75 |
7.6 |
50.0 |
108 |
| 030900701075 |
7 x 0.75 |
7.6 |
50.0 |
108 |
| 030900811075 |
8G 0.75 |
9.4 |
57.0 |
150 |
| 030900801075 |
8 x 0.75 |
9.4 |
57.0 |
150 |
| 030900911075 |
9G 0.75 |
9.8 |
64.0 |
164 |
| 030901011075 |
10G 0.75 |
10.0 |
71.0 |
175 |
| 030901211075 |
12G 0.75 |
10.1 |
85.5 |
190 |
| 030901201075 |
12 x 0.75 |
10.1 |
85.5 |
190 |
| 030901411075 |
14G 0.75 |
10.7 |
100.0 |
215 |
| 030901511075 |
15G 0.75 |
11.3 |
107.0 |
238 |
| 030901811075 |
18G 0.75 |
11.9 |
128.0 |
273 |
| 030901911075 |
19G 0.75 |
12.3 |
135.0 |
288 |
| 030902011075 |
20G 0.75 |
13.0 |
142.5 |
315 |
| 030902111075 |
21G 0.75 |
13.2 |
149.5 |
327 |
| 030902511075 |
25G 0.75 |
14.6 |
178.0 |
396 |
| 030902711075 |
27G 0.75 |
14.8 |
192.0 |
416 |
| 030903211075 |
32G 0.75 |
15.7 |
228.0 |
477 |
| 030903411075 |
34G 0.75 |
15.7 |
242.0 |
491 |
| 030903711075 |
37G 0.75 |
16.1 |
263.0 |
521 |
| 030904011075 |
40G 0.75 |
16.6 |
284.5 |
559 |
| 030904111075 |
41G 0.75 |
17.4 |
292.0 |
599 |
| 030904211075 |
42G 0.75 |
17.7 |
299.0 |
613 |
| 030905011075 |
50G 0.75 |
19.2 |
356.0 |
725 |
| 030906111075 |
61G 0.75 |
20.3 |
434.0 |
846 |
| 030906511075 |
65G 0.75 |
21.4 |
462.5 |
922 |
| 030908011075 |
80G 0.75 |
22.9 |
569.0 |
1087 |
| 030910011075 |
100G 0.75 |
27.8 |
711.5 |
1494 |
| 030900200001 |
2 x 1 |
5.6 |
19.0 |
52 |
| 030900310001 |
3G 1 |
6.0 |
28.5 |
66 |
| 030900300001 |
3 x 1 |
6.0 |
28.5 |
66 |
| 030900410001 |
4G 1 |
6.8 |
38.0 |
86 |
| 030900400001 |
4 x 1 |
6.8 |
38.0 |
86 |
| 030900510001 |
5G 1 |
7.5 |
47.5 |
104 |
| 030900500001 |
5 x 1 |
7.5 |
47.5 |
104 |
| 030900610001 |
6G 1 |
8.3 |
57.0 |
128 |
| 030900710001 |
7G 1 |
8.9 |
66.5 |
148 |
| 030900700001 |
7 x 1 |
8.9 |
66.5 |
148 |
| 030900810001 |
8G 1 |
9.7 |
76.0 |
174 |
| 030900910001 |
9G 1 |
10.5 |
85.5 |
199 |
| 030901010001 |
10G 1 |
10.8 |
95.0 |
215 |
| 030901000001 |
10 x 1 |
10.8 |
95.0 |
215 |
| 030901210001 |
12G 1 |
11.1 |
114.0 |
239 |
| 030901200001 |
12 x 1 |
11.1 |
114.0 |
239 |
| 030901410001 |
14G 1 |
11.7 |
133.0 |
272 |
| 030901610001 |
16G 1 |
12.5 |
152.0 |
308 |
| 030901810001 |
18G 1 |
13.2 |
171.0 |
346 |
| 030901800001 |
18 x 1 |
13.2 |
171.0 |
346 |
| 030901910001 |
19G 1 |
13.5 |
180.5 |
363 |
| 030902010001 |
20G 1 |
14.0 |
190.0 |
388 |
| 030902000001 |
20 x 1 |
14.0 |
190.0 |
388 |
| 030902110001 |
21G 1 |
14.2 |
199.5 |
403 |
| 030902410001 |
24G 1 |
15.7 |
228.0 |
477 |
| 030902510001 |
25G 1 |
16.2 |
237.5 |
504 |
| 030902500001 |
25 x 1 |
16.2 |
237.5 |
504 |
| 030902610001 |
26G 1 |
16.2 |
246.5 |
512 |
| 030902710001 |
27G 1 |
16.4 |
256.0 |
528 |
| 030903010001 |
30G 1 |
16.6 |
284.5 |
561 |
| 030903410001 |
34G 1 |
18.1 |
322.5 |
652 |
| 030903610001 |
36G 1 |
18.1 |
341.5 |
668 |
| 030903710001 |
37G 1 |
19.1 |
351.0 |
719 |
| 030904010001 |
40G 1 |
19.6 |
379.5 |
767 |
| 030904000001 |
40 x 1 |
19.6 |
379.5 |
767 |
| 030904110001 |
41G 1 |
19.7 |
389.0 |
776 |
| 030904210001 |
42G 1 |
19.7 |
398.5 |
785 |
| 030905010001 |
50G 1 |
21.8 |
474.5 |
952 |
| 030905610001 |
56G 1 |
22.3 |
531.0 |
1027 |
| 030906110001 |
61G 1 |
23.1 |
578.5 |
1107 |
| 030906510001 |
65G 1 |
23.7 |
616.5 |
1175 |
| 030908010001 |
80G 1 |
26.4 |
759.0 |
1451 |
| 030910010001 |
100G 1 |
29.4 |
948.5 |
1803 |
| 030900201105 |
2 x 1.5 |
6.3 |
29.0 |
69 |
| 030900311105 |
3G 1.5 |
6.7 |
43.5 |
87 |
| 030900301105 |
3 x 1.5 |
6.7 |
43.5 |
87 |
| 030900411105 |
4G 1.5 |
7.3 |
58.0 |
109 |
| 030900401105 |
4 x 1.5 |
7.3 |
58.0 |
109 |
| 030900511105 |
5G 1.5 |
8.2 |
72.5 |
137 |
| 030900501105 |
5 x 1.5 |
8.2 |
72.5 |
137 |
| 030900611105 |
6G 1.5 |
8.9 |
86.7 |
162 |
| 030900711105 |
7G 1.5 |
9 |
101.0 |
176 |
| 030900701105 |
7 x 1.5 |
9 |
101.0 |
176 |
| 030900811105 |
8G 1.5 |
10.6 |
116.0 |
224 |
| 030900801105 |
8 x 1.5 |
10.6 |
116.0 |
224 |
| 030900911105 |
9G 1.5 |
11.5 |
130.0 |
259 |
| 030901011105 |
10G 1.5 |
11.7 |
145.0 |
276 |
| 030901111105 |
11G 1.5 |
12.0 |
159.0 |
299 |
| 030901211105 |
12G 1.5 |
12.1 |
173.5 |
311 |
| 030901201105 |
12 x 1.5 |
12.1 |
173.5 |
311 |
| 030901411105 |
14G 1.5 |
12.9 |
202.5 |
357 |
| 030901611105 |
16G 1.5 |
13.6 |
202.5 |
403 |
| 030901811105 |
18G 1.5 |
14.5 |
260.0 |
455 |
| 030902111105 |
21G 1.5 |
15.7 |
303.5 |
533 |
| 030902511105 |
25G 1.5 |
17.2 |
361.0 |
637 |
| 030902611105 |
26G 1.5 |
17.3 |
361.0 |
654 |
| 030903211105 |
32G 1.5 |
19.1 |
462.5 |
799 |
| 030903411105 |
34G 1.5 |
19.8 |
491.0 |
854 |
| 030904111105 |
41G 1.5 |
21.0 |
592.5 |
994 |
| 030905011105 |
50G 1.5 |
23.7 |
722.5 |
1240 |
| 030906111105 |
61G 1.5 |
25.2 |
881.5 |
1461 |
| 030906511105 |
65G 1.5 |
26.0 |
939.0 |
1550 |
| 030900201205 |
2 x 2.5 |
7.6 |
40.1 |
100 |
| 030900311205 |
3G 2.5 |
8.3 |
60.2 |
129 |
| 030900411205 |
4G 2.5 |
9.1 |
80.3 |
162 |
| 030900511205 |
5G 2.5 |
10.2 |
100.3 |
203 |
| 030900711205 |
7G 2.5 |
11.2 |
140.4 |
261 |
| 030901211205 |
12G 2.5 |
14.8 |
240.8 |
452 |
| 030901411205 |
14G 2.5 |
15.7 |
280.9 |
517 |
| 030901811205 |
18G 2.5 |
17.5 |
361.1 |
653 |
| 030902511205 |
25G 2.5 |
20.8 |
501.6 |
915 |
| 030903411205 |
34G 2.5 |
24.4 |
682.1 |
1253 |
| 030905011205 |
50G 2.5 |
29.4 |
1003.2 |
1831 |
| 030900310004 |
3G 4 |
9.9 |
96.0 |
192 |
| 030900410004 |
4G 4 |
10.8 |
128.0 |
241 |
| 030900510004 |
5G 4 |
12.1 |
159.5 |
301 |
| 030900710004 |
7G 4 |
13.3 |
223.5 |
390 |
| 030901110004 |
11G 4 |
17.6 |
351.0 |
649 |
| 030901210004 |
12G 4 |
18.1 |
383.0 |
696 |
| 030900310006 |
3G 6 |
1.7 |
144.0 |
277 |
| 030900410006 |
4G 6 |
13.0 |
191.5 |
354 |
| 030900510006 |
5G 6 |
14.5 |
239.5 |
441 |
| 030900710006 |
7G 6 |
16.0 |
335.0 |
574 |
| 030900310010 |
3G 10 |
14.2 |
244.5 |
436 |
| 030900410010 |
4G 10 |
15.5 |
326.0 |
548 |
| 030900510010 |
5G 10 |
17.1 |
407.5 |
676 |
| 030900710010 |
7G 10 |
19.0 |
570.5 |
892 |
| 030900410016 |
4G 16 |
18.8 |
543.0 |
860 |
| 030900510016 |
5G 16 |
21.0 |
678.5 |
1074 |
| 030900710016 |
7G 16 |
23.4 |
950.0 |
1424 |
| 030900410025 |
4G 25 |
23.4 |
844.5 |
1335 |
| 030900510025 |
5G 25 |
25.8 |
1055.5 |
1648 |
| 030900710025 |
7G 25 |
28.7 |
1478.0 |
2184 |
| 030900410035 |
4G 35 |
26.4 |
1189.0 |
1795 |
| 030900510035 |
5G 35 |
29.6 |
1486.5 |
2251 |
Application :-
- For use as a data and control cable in machinery, computer systems etc.
as well as a signal cable for electronics. The high level of screening
ensures a high degree of interference protection. The screening density
assures disturbance-free transmission of all signals and impulses.
Standard :-
- Requirements adapted to DIN VDE 0245, 0281 Part 13.
Technical Data :-
- Nominal Voltage : U /U 300 / 500V O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed installation 4 x
cable ø
- Test Voltage : 4000V
- Breakdown Voltage : Min. 8000V
Cable Construction :-
- Bare copper, fine wire conductors, to EN 60228 Cl.5.
- Core insulation of PVC TI2 EN 50363-3.
- Black Core with continuous white numbering to DIN VDE 0293.
- Green/Yellow earth core in outer layer (3 cores and above).
- Cores stranded in layers with optimal lay-length.
- Special PVC inner jacket.
- Tinned copper, braided screen, approx 85% coverage.
- Transparent special PVC outer sheath.
Cable Design Parameters :-
| Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq.
mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
|
| 031000201050 |
2 x 0.5 |
7 |
21.6 |
68.2 |
| 031000311050 |
3G 0.5 |
7.3 |
27.6 |
78.0 |
| 031000301050 |
3 X 0.5 |
7.3 |
27.6 |
78.0 |
| 031000411050 |
4G 0.5 |
7.9 |
32.5 |
91.7 |
| 031000401050 |
4 X 0.5 |
7.9 |
32.5 |
91.7 |
| 031000511050 |
5G 0.5 |
8.4 |
38.7 |
105.7 |
| 031000501050 |
5 X 0.5 |
8.4 |
38.7 |
105.7 |
| 031000711050 |
7G 0.5 |
8.9 |
47.7 |
122.6 |
| 031000701050 |
7 X 0.5 |
8.9 |
47.7 |
122.6 |
| 031001211050 |
12G 0.5 |
11.3 |
75.2 |
198.2 |
| 031001201050 |
12 X 0.5 |
11.3 |
75.2 |
198.2 |
| 031001811050 |
18G 0.5 |
13.3 |
102.2 |
273.5 |
| 031002511050 |
25G 0.5 |
15.2 |
153.7 |
371.7 |
| 031003011050 |
30G 0.5 |
16.1 |
178.7 |
423.1 |
| 031004011050 |
40G 0.5 |
18.2 |
228.0 |
542.5 |
| 031000201075 |
2 x 0.75 |
7.4 |
27.5 |
79 |
| 031000311075 |
3G 0.75 |
7.9 |
36.2 |
95 |
| 031000301075 |
3 X 0.75 |
7.9 |
36.2 |
95 |
| 031000411075 |
4G 0.75 |
8.4 |
42.4 |
109 |
| 031000401075 |
4 X 0.75 |
8.4 |
42.4 |
109 |
| 031000511075 |
5G 0.75 |
8.9 |
48.7 |
123 |
| 031000501075 |
5 X 0.75 |
8.9 |
48.7 |
123 |
| 031000711075 |
7G 0.75 |
9.7 |
64.0 |
152 |
| 031000701075 |
7 X 0.75 |
9.7 |
64.0 |
152 |
| 031001211075 |
12G 0.75 |
12.3 |
101.1 |
246 |
| 031001201075 |
12 X 0.75 |
12.3 |
101.1 |
246 |
| 031001811075 |
18G 0.75 |
14.5 |
160.6 |
355 |
| 031001801075 |
18 X 0.0.75 |
14.5 |
160.6 |
355 |
| 031002511075 |
25G 0.75 |
16.6 |
214.1 |
472 |
| 031003411075 |
34G 0.75 |
18.9 |
279.0 |
615 |
| 031004001075 |
40 X 0.75 |
20.5 |
337.4 |
728 |
| 031004111075 |
41G 0.75 |
20.6 |
345.2 |
740 |
| 031000200001 |
2 x 1 |
7.9 |
32.0 |
91 |
| 031000310001 |
3G 1 |
8.2 |
42.2 |
105 |
| 031000300001 |
3 x 1 |
8.2 |
42.2 |
105 |
| 031000410001 |
4G 1 |
8.7 |
50.7 |
121 |
| 031000400001 |
4 x 1 |
8.7 |
50.7 |
121 |
| 031000510001 |
5G 1 |
9.5 |
61.3 |
146 |
| 031000710001 |
7G 1 |
10.2 |
79.5 |
176 |
| 031001210001 |
12G 1 |
13.3 |
146.2 |
308 |
| 031001610001 |
16G 1 |
14.6 |
185.5 |
380 |
| 031001810001 |
18G 1 |
15.5 |
202.5 |
423 |
| 031002510001 |
25G 1 |
17.5 |
271.5 |
554 |
| 031003410001 |
34G 1 |
20.2 |
354.0 |
734 |
| 031004110001 |
41G 1 |
22.0 |
437.1 |
882 |
| 031005010001 |
50G 1 |
23.8 |
521.9 |
1044 |
| 031000201105 |
2 x 1.5 |
8.5 |
42.1 |
110 |
| 031000311105 |
3G 1.5 |
8.9 |
56.0 |
130 |
| 031000301105 |
3 x 1.5 |
8.9 |
56.0 |
130 |
| 031000411105 |
4G 1.5 |
9.6 |
69.1 |
155 |
| 031000401105 |
4 x 1.5 |
9.6 |
69.1 |
155 |
| 031000511105 |
5G 1.5 |
10.3 |
99.2 |
193 |
| 031000501105 |
5 x 1.5 |
10.3 |
99.2 |
193 |
| 031000711105 |
7G 1.5 |
11.3 |
124.6 |
237 |
| 031000701105 |
7 x 1.5 |
11.3 |
124.6 |
237 |
| 031001211105 |
12G 1.5 |
14.8 |
198.6 |
397 |
| 031001811105 |
18G 1.5 |
17.2 |
279.6 |
548 |
| 031002511105 |
25G 1.5 |
20.1 |
375.2 |
746 |
| 031003411105 |
34G 1.5 |
22.8 |
497.4 |
977 |
| 031004111105 |
41G 1.5 |
24.7 |
611.9 |
1168 |
| 031005011105 |
50G 1.5 |
27.1 |
730.1 |
1402 |
| 031000201205 |
2 x 2.5 |
9.9 |
61.2 |
154 |
| 031000311205 |
3G 2.5 |
10.3 |
99.1 |
193 |
| 031000411205 |
4G 2.5 |
11.3 |
121.1 |
234 |
| 031000511205 |
5G 2.5 |
12.6 |
146.4 |
289 |
| 031000711205 |
7G 1.5 |
13.9 |
192.3 |
364 |
| 031001211205 |
12G 2.5 |
17.6 |
304.4 |
585 |
| 031000200004 |
2 x 4 |
11.4 |
104.4 |
222 |
| 031000410004 |
4G 4 |
13.4 |
173.2 |
333 |
| 031000510004 |
5G 4 |
14.7 |
212.4 |
405 |
| 031000200006 |
2 x 6 |
13.6 |
141.6 |
312 |
| 031000410006 |
4G 6 |
15.8 |
250.2 |
474 |
| 031000510006 |
5G 6 |
17.3 |
303.7 |
573 |
| 031000200010 |
2 x 10 |
16.4 |
220.4 |
468 |
| 031000310010 |
3G 10 |
17.4 |
308.7 |
579 |
| 031000410010 |
4G 10 |
19.0 |
395.2 |
715 |
| 031000510010 |
5G 10 |
21.2 |
482.7 |
884 |
| 031000710010 |
7G 10 |
23.2 |
653.4 |
1124 |
| 031000200016 |
2 x 16 |
18.6 |
367.3 |
672 |
| 031000410016 |
4G 16 |
22.2 |
657.4 |
1075 |
| 031000510016 |
5G 16 |
26.7 |
807.2 |
1433 |
| 031000410025 |
4G 25 |
28.7 |
984.1 |
1703 |
| 031000510025 |
5G 25 |
31.6 |
1210.5 |
2083 |
| 031000410035 |
4G 35 |
32 |
1352.0 |
2235 |
| 031000510035 |
5G 35 |
35.5 |
1670.1 |
2760 |
Application :-
- These cables are used as measuring and control cables in tool machinery,
plant installation, power stations and in data equipment. The braided
screen offers best possible protection against mechanical damage. The
galvanised coating on the steel wire braiding not only helps protect
against corrosion, but also notably improves the soldering performance.
Standard :-
- Adapted to DIN VDE 0245, 0281, 0293, 0295.
Technical Data :-
- Nominal Voltage : U / U 300 / 500V O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed installation 4 x
cable ø
- Test Voltage : 4000V
- Breakdown Voltage : Min. 8000V
Cable Construction :-
- Bare copper, fine wire conductors, to EN 60228 Cl.5.
- Core insulation of PVC TI2, EN 50363-3.
- Black Core with continuous white numbering to DIN VDE 0293.
- Green/Yellow earth core in outer layer (3 cores and above).
- Cores stranded in layers with optimal lay-length.
- Special PVC inner jacket.
- Galvanized steel wire screening.
- Special PVC outer jacket.
- Colour transparent (also available in grey).
Cable Design Parameters :-
| Part Number |
No. of Cores and Nominal Cross Sectional Area
(Sq.
mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
| 03110105011z |
7G 0.5 |
9.7 |
29.4 |
155 |
| 03110106011z |
10G 0.5 |
11.6 |
42 |
223 |
| 03110107011z |
12G 0.5 |
11.9 |
50.4 |
237 |
| 03110108011z |
14G 0.5 |
12.5 |
58.8 |
261 |
| 03110109011z |
18G 0.5 |
13.9 |
75.5 |
319 |
| 03110110011z |
21G 0.5 |
14.9 |
88.1 |
360 |
| 03110111011z |
25G 0.5 |
15.6 |
104.9 |
397 |
| 03110112011z |
30G 0.5 |
16.5 |
125.9 |
445 |
| 03110113011z |
40G 0.5 |
18.8 |
167.9 |
588 |
| 03110114011z |
61G 0.5 |
21.9 |
256 |
801 |
| 03110115021z |
2 x 0.75 |
8.2 |
12.6 |
99 |
| 03110116011z |
3G 0.75 |
8.5 |
18.9 |
111 |
| 03110117011z |
4G 0.75 |
9.2 |
25.2 |
142 |
| 03110118011z |
5G 0.75 |
9.7 |
31.5 |
157 |
| 03110119011z |
7G 0.75 |
10.3 |
44.1 |
179 |
| 03110120011z |
9G 0.75 |
12.4 |
56.7 |
254 |
| 03110121011z |
12G 0.75 |
12.9 |
75.5 |
282 |
| 03110122011z |
15G 0.75 |
14.1 |
94.4 |
335 |
| 03110123011z |
18G 0.75 |
14.9 |
113.3 |
389 |
| 03110124011z |
25G 0.75 |
17 |
157.4 |
512 |
| 03110125011z |
34G 0.75 |
19.3 |
214 |
650 |
| 03110126011z |
50G 0.75 |
22.8 |
314.8 |
905 |
| 03110127021z |
2 x 1 |
8.5 |
16.8 |
109 |
| 03110128011z |
3G 1 |
8.8 |
25.2 |
135 |
| 03110129011z |
4G 1 |
9.5 |
33.6 |
155 |
| 03110130011z |
5G 1 |
10.1 |
42 |
173 |
| 03110131011z |
7G 1 |
11 |
58.8 |
207 |
| 03110132011z |
8G 1 |
12.5 |
67.1 |
265 |
| 03110133011z |
9G 1 |
13.2 |
75.5 |
291 |
| 03110134011z |
12G 1 |
13.9 |
100.7 |
333 |
| 03110135011z |
14G 1 |
14.4 |
117.5 |
362 |
| 03110136011z |
18G 1 |
15.9 |
151.1 |
452 |
| 03110137011z |
20G 1 |
16.8 |
167.9 |
500 |
| 03110138011z |
25G 1 |
18.1 |
209.8 |
597 |
| 03110139011z |
34G 1 |
20.5 |
285.4 |
761 |
| 03110140011z |
41G 1 |
22.2 |
344.1 |
896 |
| 03110141011z |
50G 1 |
24.2 |
419.7 |
1070 |
| 03110142011z |
65G 1 |
27.2 |
545.6 |
1355 |
| 03110143021z |
2 x 1.5 |
9.3 |
24.1 |
143 |
| 03110144011z |
3G 1.5 |
9.7 |
36.1 |
161 |
| 03110145011z |
4G 1.5 |
10.2 |
48.2 |
181 |
| 03110146011z |
5G 1.5 |
11.1 |
60.2 |
213 |
| 03110147011z |
7G 1.5 |
11.9 |
84.3 |
265 |
| 03110148011z |
8G 1.5 |
14 |
96.3 |
330 |
| 03110149011z |
12G 1.5 |
15.4 |
144.5 |
430 |
| 03110150011z |
14G 1.5 |
15.9 |
168.5 |
469 |
| 03110151011z |
18G 1.5 |
17.6 |
216.7 |
574 |
| 03110152011z |
25G 1.5 |
20.3 |
300.9 |
771 |
| 03110153011z |
32G 1.5 |
22.1 |
385.2 |
926 |
| 03110154011z |
41G 1.5 |
24.9 |
493.6 |
1174 |
| 03110155011z |
50G 1.5 |
27.1 |
601.9 |
1403 |
| 03110156011z |
3G 2.5 |
11.1 |
60.2 |
211 |
| 03110157011z |
4G 2.5 |
12.1 |
80.3 |
267 |
| 03110158011z |
5G 2.5 |
13.2 |
100.3 |
314 |
| 03110159011z |
7G 2.5 |
14.3 |
140.4 |
392 |
| 03110160011z |
12G 2.5 |
18.2 |
240.8 |
626 |
| 03110161011z |
18G 2.5 |
21.4 |
361.1 |
875 |
| 03110162011z |
25G 2.5 |
24.4 |
501.6 |
1159 |
| 03110163011z |
3G 4 |
12.7 |
95.7 |
295 |
| 03110164011z |
4G 4 |
14 |
127.6 |
358 |
| 03110165011z |
5G 4 |
15.1 |
159.5 |
420 |
| 03110166011z |
7G 4 |
16.4 |
223.3 |
530 |
| 03110167011z |
4G 6 |
16.2 |
191.4 |
498 |
| 03110168011z |
5G 6 |
17.7 |
239.3 |
593 |
| 03110169011z |
7G 6 |
19.2 |
335 |
749 |
| 03110170011z |
4G 10 |
19.4 |
325.9 |
745 |
| 03110171011z |
5G 10 |
21.5 |
407.3 |
908 |
| 03110172011z |
7G 10 |
23.4 |
570.3 |
1147 |
| 03110173011z |
4G 16 |
22.4 |
542.8 |
1086 |
| 03110174011z |
5G 16 |
24.6 |
678.5 |
1324 |
| 03110175011z |
4G 25 |
28.9 |
844.4 |
1704 |
| 03110176011z |
5G 25 |
31.8 |
1055.5 |
2093 |
| 03110177011z |
4G 35 |
32.2 |
1189 |
2247 |
Application :-
- For use as a data cable in control circuits, in tool-making and machine
industries as well as a signal cable in computer systems and
electronics. The more usual PVC inner sheath has been removed in the
cable, thus reducing the total diameter of the cables considerably and
thereby reducing the bending radius, total weight etc. The high covering
percentage of the copper screening offers interference-free signal
transfer etc. The dense screening assures disturbance-free transmission
of all signals and impulses.
Cable Construction :-
- Bare copper, fine wire conductors, to EN 60228 Cl.5.
- Core insulation of special PVC TI2, EN 50363-3.
- Black Core with continuous white numbering to DIN VDE 0293.
- Green/Yellow earth core in outer layer (3 cores and above).
- Cores stranded in layers with optimal lay-length.
- Tinned copper, braided screen, approx 85% coverage.
- Outer Sheath of Special PVC, TM2 to DIN/BS EN 50363-4.1.
- Colour grey (RAL 7001).
Technical Data :-
- Nominal Voltage : U / U 300 / 500V O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed installation 4 x
cable ø
- Test Voltage : 4000V
- Breakdown Voltage : Min. 8000V
Standard :-
- Adapted to DIN VDE 0245, 0281 Part 13.
Cable Design Parameters :-
| Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq. mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
| 031201810001 |
18G 1 |
13.9 |
180.0 |
328.9 |
| 031202510001 |
25G 1 |
15.9 |
266.1 |
439.8 |
| 031200201105 |
2 x 1.5 |
7.1 |
39.4 |
73.9 |
| 031200311105 |
3G 1.5 |
7.5 |
51.7 |
92.7 |
| 031200301105 |
3 x 1.5 |
7.5 |
51.7 |
92.7 |
| 031200411105 |
4G 1.5 |
8.2 |
66.2 |
115.9 |
| 031200401105 |
4 x 1.5 |
8.2 |
66.2 |
115.9 |
| 031200511105 |
5G 1.5 |
8.9 |
80.9 |
138.7 |
| 031200501105 |
5 x 1.5 |
8.9 |
80.9 |
138.7 |
| 031200711105 |
7G 1.5 |
9.9 |
108.0 |
182.3 |
| 031200701105 |
7 x 1.5 |
9.9 |
108.0 |
182.3 |
| 031201211105 |
12G 1.5 |
13.0 |
175.1 |
298.0 |
| 031201811105 |
18G 1.5 |
15.6 |
276.0 |
450.8 |
| 031202511105 |
25G 1.5 |
17.9 |
377.6 |
596.4 |
| 031203411105 |
34G 1.5 |
20.8 |
488.3 |
787.3 |
| 031200311205 |
3G 2.5 |
8.9 |
80.9 |
136.6 |
| 031200411205 |
4G 2.5 |
9.9 |
102.9 |
174.0 |
| 031200511205 |
5G 2.5 |
11.0 |
125.0 |
213.7 |
| 031200711205 |
7G 1.5 |
11.9 |
168.4 |
272.9 |
| 031201211205 |
12G 2.5 |
16.0 |
301.0 |
477.1 |
| 031201811205 |
18G 2.5 |
19.0 |
433.3 |
688.1 |
| 031202511205 |
25G 2.5 |
22.2 |
588.0 |
924.6 |
| 031200410004 |
4G 4 |
11.6 |
153.4 |
250.4 |
| 031200710004 |
7G 4 |
14.4 |
256.1 |
412.1 |
| 031200410006 |
4G 6 |
14.2 |
222.7 |
370.5 |
| 031200710006 |
7G 6 |
17.0 |
396.3 |
600.0 |
| 031200410010 |
4G 10 |
17.2 |
384.1 |
589.2 |
| 031200510010 |
5G 10 |
19.5 |
475.8 |
748.2 |
| 031200410016 |
4G 16 |
20.2 |
616.3 |
877.4 |
| 031200510016 |
5G 16 |
22.6 |
760.4 |
1093.1 |
| 031200410025 |
4G 25 |
25.1 |
937.4 |
1347.6 |
| 031200510025 |
5G 25 |
28.0 |
1160.0 |
1676.0 |
| 031200410035 |
4G 35 |
28.0 |
1300.4 |
1769.2 |
Application :-
- Wiring cable in tool machinery, conveyor belts and production lines,
plant engineering, Industrial machinery, air conditioning, steel
production plants and rolling mills.
Technical Data :-
- Nominal Voltage : U / U 0.6 / 1kV O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed installation 4 x
cable ø
- Test Voltage : 4000V
- Breakdown Voltage : Min. 8000V
Standard :-
- Adapted to DIN VDE 0262, DIN VDE 0281 Part 13 with increased insulation
thickness for 1 kV.
Cable Construction :-
- Bare copper, fine wire conductors, as per EN60228 Cl. 5.
- Special PVC core insulation TI2, to EN 50363-3.
- Black Core with continuous white numbering to DIN VDE 0293.
- Green/yellow earth core in outer layer (3 cores and above).
- Cores stranded in layers with optimal lay-length.
- Special PVC outer sheath TM2, to EN 50363-4-1.
- Colour Black (RAL 9005).
Cable Design Parameters :-
| Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq. mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
| 031300201075 |
2 x 0.75 |
8.3 |
13.0 |
90 |
| 031300311075 |
3G 0.75 |
8.7 |
19.6 |
103 |
| 031300301075 |
3 x 0.75 |
8.7 |
19.6 |
103 |
| 031300411075 |
4G 0.75 |
9.2 |
26.1 |
119 |
| 031300511075 |
5G 0.75 |
9.9 |
32.6 |
139 |
| 031300711075 |
7G 0.75 |
10.7 |
45.6 |
169 |
| 031301211075 |
12G 0.75 |
13.4 |
78.2 |
271 |
| 031301811075 |
18G 0.75 |
15.6 |
117.3 |
377 |
| 031304111075 |
41G 0.75 |
23.2 |
267.3 |
840 |
| 031300200001 |
2 x 1 |
8.6 |
17.4 |
99.0 |
| 031300310001 |
3G 1 |
9.0 |
26.1 |
114.4 |
| 031300300001 |
3 x 1 |
9.0 |
26.1 |
114.4 |
| 031300410001 |
4G 1 |
9.6 |
34.8 |
134.5 |
| 031300400001 |
4 x 1 |
9.6 |
34.8 |
134.5 |
| 031300510001 |
5G 1 |
10.4 |
43.5 |
160.1 |
| 031300500001 |
5 x 1 |
10.4 |
43.5 |
160.1 |
| 031300710001 |
7G 1 |
11.4 |
60.8 |
199.8 |
| 031301210001 |
12G 1 |
14.5 |
104.3 |
328.2 |
| 031301810001 |
18G 1 |
16.5 |
156.5 |
443.2 |
| 031302510001 |
25G 1 |
19.7 |
217.3 |
626.9 |
| 031303410001 |
34G 1 |
22.5 |
295.5 |
828.0 |
| 031304110001 |
41G 1 |
24.4 |
356.4 |
981.3 |
| 031300201105 |
2 x 1.5 |
9.6 |
25.5 |
127 |
| 031300311105 |
3G 1.5 |
10.1 |
38.2 |
149 |
| 031300301105 |
3 x 1.5 |
10.1 |
38.2 |
149 |
| 031300411105 |
4G 1.5 |
10.8 |
50.9 |
176 |
| 031300511105 |
5G 1.5 |
11.7 |
63.7 |
210 |
| 031300711105 |
7G 1.5 |
12.6 |
89.1 |
257 |
| 031301211105 |
12G 1.5 |
16.1 |
152.8 |
425 |
| 031301411105 |
14G 1.5 |
17.0 |
178.3 |
481 |
| 031301811105 |
18G 1.5 |
18.8 |
229.2 |
598 |
| 031302511105 |
25G 1.5 |
21.7 |
318.3 |
807 |
| 031303411105 |
34G 1.5 |
24.9 |
407.4 |
1053 |
| 031305011105 |
50G 1.5 |
29.8 |
636.6 |
1553 |
| 031300211205 |
2G 2.5 |
10.8 |
42.4 |
169 |
| 031300311205 |
3G 2.5 |
11.3 |
63.7 |
200 |
| 031300411205 |
4G 2.5 |
12.2 |
84.9 |
242 |
| 031300511205 |
5G 2.5 |
13.3 |
106.1 |
292 |
| 031300711205 |
7G 2.5 |
14.4 |
148.5 |
363 |
| 031301211205 |
12G 2.5 |
18.7 |
254.6 |
615 |
| 031301411205 |
14G 2.5 |
19.8 |
297.1 |
699 |
| 031301811205 |
18G 2.5 |
22.0 |
382.0 |
876 |
| 031302511205 |
25G 2.5 |
25.8 |
530.5 |
1210 |
| 031300410004 |
4G 4 |
13.8 |
135.0 |
332 |
| 031300510004 |
5G 4 |
15.1 |
168.7 |
403 |
| 031300710004 |
7G 4 |
16.4 |
236.2 |
507 |
| 031300410006 |
4G 6 |
15.1 |
202.4 |
432 |
| 031300510006 |
5G 6 |
16.8 |
253.1 |
537 |
| 031300710006 |
7G 6 |
18.2 |
354.3 |
679 |
| 031300410010 |
4G 10 |
18.7 |
344.7 |
692 |
| 031300510010 |
5G 10 |
20.7 |
430.8 |
855 |
| 031300410016 |
4G 16 |
21.3 |
574.1 |
1006 |
| 031300510016 |
5G 16 |
23.6 |
717.7 |
1245 |
| 031300710016 |
7G 16 |
26.2 |
1004.7 |
1637 |
| 031300410025 |
4G 25 |
26.2 |
893.1 |
1542 |
| 031300510025 |
5G 25 |
29.0 |
1116.3 |
1908 |
| 031300410035 |
4G 35 |
29.1 |
1257.6 |
2035 |
| 031300510035 |
5G 35 |
32.5 |
1572.0 |
2541 |
| 031300410050 |
4G 50 |
35.6 |
1804.4 |
2980 |
| 031300410070 |
4G 70 |
40.7 |
2549.7 |
4058 |
| 031300410095 |
4G 95 |
46.8 |
3399.7 |
5389 |
| 031300410120 |
4G 120 |
53.5 |
4306.2 |
6926 |
Application :-
- Wiring cable in tool machinery, conveyor belts and production lines,
plant engineering, Industrial machinery, air conditioning, steel
production plants and rolling mills. The dense coverage of copper
screening offers EMI compliance.
Technical Data :-
- Nominal Voltage : U / U 0.6 / 1kV O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed installation 4 x
cable ø
- Test Voltage : 4000V
- Breakdown Voltage : Min. 8000V
Standard :-
- Adapted to DIN VDE 0262/12.95 and 0281 Part 13 with insulation thickness
for 1 kV type.
Cable Construction :-
- Bare copper, fine wire conductors, as per DIN VDE 0295 Cl. 5.
- Special PVC core insulation TI2, to EN 50363-3.
- Black Core with continuous white numbering to DIN VDE 0293.
- Green/yellow earth core in outer layer (3 cores and above).
- Cores stranded in layers with optimal lay-length.
- PVC inner jacket, Black color.
- Tinned copper, braided screen, approx 85% coverage.
- Special PVC outer sheath TM2, to EN 50363-4.1.
- Colour Black (RAL 9005)
Cable Design Parameters :-
| Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq. mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
| 031300201075 |
2 x 0.75 |
8.3 |
13.0 |
90 |
| 031300311075 |
3G 0.75 |
8.7 |
19.6 |
103 |
| 031300301075 |
3 x 0.75 |
8.7 |
19.6 |
103 |
| 031300411075 |
4G 0.75 |
9.2 |
26.1 |
119 |
| 031300511075 |
5G 0.75 |
9.9 |
32.6 |
139 |
| 031300711075 |
7G 0.75 |
10.7 |
45.6 |
169 |
| 031301211075 |
12G 0.75 |
13.4 |
78.2 |
271 |
| 031301811075 |
18G 0.75 |
15.6 |
117.3 |
377 |
| 031304111075 |
41G 0.75 |
23.2 |
267.3 |
840 |
| 031300200001 |
2 x 1 |
8.6 |
17.4 |
99.0 |
| 031300310001 |
3G 1 |
9.0 |
26.1 |
114.4 |
| 031300300001 |
3 x 1 |
9.0 |
26.1 |
114.4 |
| 031300410001 |
4G 1 |
9.6 |
34.8 |
134.5 |
| 031300400001 |
4 x 1 |
9.6 |
34.8 |
134.5 |
| 031300510001 |
5G 1 |
10.4 |
43.5 |
160.1 |
| 031300500001 |
5 x 1 |
10.4 |
43.5 |
160.1 |
| 031300710001 |
7G 1 |
11.4 |
60.8 |
199.8 |
| 031301210001 |
12G 1 |
14.5 |
104.3 |
328.2 |
| 031301810001 |
18G 1 |
16.5 |
156.5 |
443.2 |
| 031302510001 |
25G 1 |
19.7 |
217.3 |
626.9 |
| 031303410001 |
34G 1 |
22.5 |
295.5 |
828.0 |
| 031304110001 |
41G 1 |
24.4 |
356.4 |
981.3 |
| 031300201105 |
2 x 1.5 |
9.6 |
25.5 |
127 |
| 031300311105 |
3G 1.5 |
10.1 |
38.2 |
149 |
| 031300301105 |
3 x 1.5 |
10.1 |
38.2 |
149 |
| 031300411105 |
4G 1.5 |
10.8 |
50.9 |
176 |
| 031300511105 |
5G 1.5 |
11.7 |
63.7 |
210 |
| 031300711105 |
7G 1.5 |
12.6 |
89.1 |
257 |
| 031301211105 |
12G 1.5 |
16.1 |
152.8 |
425 |
| 031301411105 |
14G 1.5 |
17.0 |
178.3 |
481 |
| 031301811105 |
18G 1.5 |
18.8 |
229.2 |
598 |
| 031302511105 |
25G 1.5 |
21.7 |
318.3 |
807 |
| 031303411105 |
34G 1.5 |
24.9 |
407.4 |
1053 |
| 031305011105 |
50G 1.5 |
29.8 |
636.6 |
1553 |
| 031300211205 |
2G 2.5 |
10.8 |
42.4 |
169 |
| 031300311205 |
3G 2.5 |
11.3 |
63.7 |
200 |
| 031300411205 |
4G 2.5 |
12.2 |
84.9 |
242 |
| 031300511205 |
5G 2.5 |
13.3 |
106.1 |
292 |
| 031300711205 |
7G 2.5 |
14.4 |
148.5 |
363 |
| 031301211205 |
12G 2.5 |
18.7 |
254.6 |
615 |
| 031301411205 |
14G 2.5 |
19.8 |
297.1 |
699 |
| 031301811205 |
18G 2.5 |
22.0 |
382.0 |
876 |
| 031302511205 |
25G 2.5 |
25.8 |
530.5 |
1210 |
| 031300410004 |
4G 4 |
13.8 |
135.0 |
332 |
| 031300510004 |
5G 4 |
15.1 |
168.7 |
403 |
| 031300710004 |
7G 4 |
16.4 |
236.2 |
507 |
| 031300410006 |
4G 6 |
15.1 |
202.4 |
432 |
| 031300510006 |
5G 6 |
16.8 |
253.1 |
537 |
| 031300710006 |
7G 6 |
18.2 |
354.3 |
679 |
| 031300410010 |
4G 10 |
18.7 |
344.7 |
692 |
| 031300510010 |
5G 10 |
20.7 |
430.8 |
855 |
| 031300410016 |
4G 16 |
21.3 |
574.1 |
1006 |
| 031300510016 |
5G 16 |
23.6 |
717.7 |
1245 |
| 031300710016 |
7G 16 |
26.2 |
1004.7 |
1637 |
| 031300410025 |
4G 25 |
26.2 |
893.1 |
1542 |
| 031300510025 |
5G 25 |
29.0 |
1116.3 |
1908 |
| 031300410035 |
4G 35 |
29.1 |
1257.6 |
2035 |
| 031300510035 |
5G 35 |
32.5 |
1572.0 |
2541 |
| 031300410050 |
4G 50 |
35.6 |
1804.4 |
2980 |
| 031300410070 |
4G 70 |
40.7 |
2549.7 |
4058 |
| 031300410095 |
4G 95 |
46.8 |
3399.7 |
5389 |
| 031300410120 |
4G 120 |
53.5 |
4306.2 |
6926 |

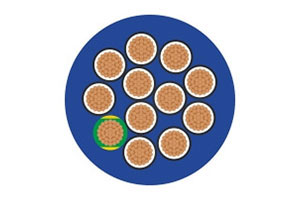

Application :-
- Installation of intrinsically safe circuits.
Technical Data :-
- Nominal Voltage : U / U 300 / 500V O
- Nominal Voltage : U / U 300 / 500V. < 50V AC < 75V DC O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius : Flexing 15 x cable ø. Fixed installation 4 x
cable ø
- Test Voltage : 4000V
Standard :-
- Adapted to DIN EN 60079-14: VDE 0165 Part1.
Cable Construction :-
- Bare copper, fine wire conductors, to EN 60228 Cl.5.
- Special PVC core insulation TI2, to EN 50363-3.
- Black Core with continuous white numbering to DIN VDE 0293.
- Green/yellow earth core in outer layer (3 cores and above).
- Cores stranded in layers with optimal lay-length.
- Outer sheath of special PVC, TM2 to DIN/BS EN 50363-4.1.
- Colour Black (RAL 9005).
Cable Design Parameters :-
| Part Number |
No. of Cores and Nominal Cross Sectional
Area (Sq. mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
|
| 031500201075 |
2 x 0.75 |
5.3 |
4.5 |
44 |
| 031500301075 |
3 x 0.75 |
5.6 |
1.5 |
54 |
| 031500401075 |
4 x 0.75 |
6.1 |
8.5 |
66 |
| 031500501075 |
5 x 0.75 |
6.9 |
6.0 |
85 |
| 031501211075 |
12G 0.75 |
10.1 |
85.5 |
190 |
| 031501811075 |
18G 0.75 |
11.9 |
128.0 |
273 |
| 031502511075 |
25G 0.75 |
14.6 |
178.0 |
396 |
| 031500200001 |
2 x 1 |
5.6 |
19.0 |
52 |
| 031500300001 |
3 x 1 |
6.0 |
28.5 |
66 |
| 031500400001 |
4 x 1 |
6.8 |
38.0 |
86 |
| 031500500001 |
5 x 1 |
7.5 |
47.5 |
104 |
| 031500700001 |
7 x 1 |
8.9 |
66.5 |
148 |
| 031501200001 |
12 x 1 |
11.1 |
114.0 |
239 |
| 031501800001 |
18 x 1 |
13.2 |
171.0 |
346 |
| 031500201105 |
2 x 1.5 |
6.3 |
29.0 |
69 |
| 031500301105 |
3 x 1.5 |
6.7 |
43.5 |
87 |
| 031500401105 |
4 x 1.5 |
7.3 |
58.0 |
109 |
| 031500501105 |
5 x 1.5 |
8.2 |
72.5 |
137 |
| 031500311105 |
3 G 1.5 |
6.7 |
43.5 |
87 |
| 031500411105 |
4 G 1.5 |
7.3 |
58.0 |
109 |
| 031500511105 |
5 G 1.5 |
8.2 |
72.5 |
137 |
| 031501811105 |
18G 1.5 |
14.5 |
260.0 |
455 |
| 031502511105 |
25G 1.5 |
17.2 |
361.0 |
637 |
Application :-
- Installation of intrinsically safe circuits.
Technical Data :-
- Nominal Voltage : U / U 300 / 500V. < 50V AC < 75V DC O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius : Flexing 15 x cable ø. Fixed installation 4 x
cable ø
- Test Voltage : 4000V
Standard :-
- Adapted to DIN EN 60079-14: VDE 0165 Part1.
Cable Construction :-
- Special PVC core insulation TI2, to EN 50363-3.
- Black Core with continuous white numbering to DIN VDE 0293.
- Cores stranded in layers with optimal lay-length.
- Plastic foil wrapping.
- Tinned-copper braided screen, approx. 85% coverage.
- Outer sheath of special PVC, TM2 to DIN/BS EN 50363-4.1.
- Colour Black (RAL 9005).
Cable Design Parameters :-
| Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq.
mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
|
| 031600201075 |
2 x 0.75 |
6.2 |
25.0 |
53.2 |
| 031600201075 |
3 x 0.75 |
6.5 |
31.3 |
64.0 |
| 031600201075 |
4 x 0.75 |
7.0 |
39.0 |
77.0 |
| 031600201075 |
4G 0.75 |
7.0 |
39.0 |
77.0 |
| 031600201075 |
5 x 0.75 |
7.7 |
47.2 |
93.4 |
| 031600201075 |
7 x 0.75 |
8.3 |
62.0 |
116.4 |
| 031600201075 |
12 x 0.75 |
10.9 |
98.9 |
189.7 |
| 031600201075 |
18 x 0.75 |
12.7 |
141.0 |
265.0 |
| 031600201075 |
25 x 0.75 |
14.8 |
210.6 |
363.6 |
| 031600201075 |
2 x 1 |
6.5 |
29.5 |
59.7 |
| 031600201075 |
3 x 1 |
6.8 |
38.9 |
73.6 |
| 031600201075 |
4 x 1 |
7.3 |
49.1 |
89.0 |
| 031600201075 |
5 x 1 |
8.1 |
58.4 |
108.1 |
| 031600201075 |
7 x 1 |
8.8 |
77.2 |
136.8 |
| 031600201075 |
12 x 1 |
11.5 |
125.5 |
223.3 |
| 031600201075 |
18 x 1 |
13.9 |
180.0 |
328.9 |
| 031600201075 |
25 x 1 |
15.9 |
266.1 |
439.8 |
| 031600201075 |
2 x 1.5 |
7.1 |
39.4 |
73.9 |
| 031600201075 |
3 x 1.5 |
7.5 |
51.7 |
92.7 |
| 031600201075 |
4 x 1.5 |
8.2 |
66.2 |
115.9 |
| 031600201075 |
5 x 1.5 |
8.9 |
80.9 |
138.7 |
| 031600201075 |
7 x 1.5 |
9.9 |
108.0 |
182.3 |
| 031600201075 |
12 x 1.5 |
13.0 |
175.1 |
298.0 |
| 031600201075 |
18 x 1.5 |
15.6 |
276.0 |
450.8 |
| 031600201075 |
25 x 1.5 |
17.9 |
377.6 |
596.4 |
Application :-
- Halogen-free cables for airports railway station, plant engineering and
Industrial machinery
Technical Data :-
- Nominal Voltage : U / U 450 / 750V O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius : Flexing approx. 15 x cable ø. Fixed
installation approx. 4 x cable ø
- Test Voltage : 3000V
Standard :-
Cable Construction :-
- Bare copper, fine wire conductors, to EN 60228 Cl. 5.
- Core insulation of halogen-free compound TI6 to EN 50363-7.
- Green/Yellow earth core in outer layer.
- Cores stranded in layers with optimal lay-length.
- Halogen-Free sheath compound TM7, to EN 50363-8.
- Outer jacket colour grey (RAL 7001).
- LSOH : Low Smoke Zero Halogen-Free.
Cable Design Parameters :-
| Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq.
mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
|
| 031700311105 |
3 G 1.5 |
8.2 |
38.2 |
110 |
| 031700411105 |
4 G 1.5 |
8.9 |
50.9 |
135 |
| 031700511105 |
5 G 1.5 |
10.0 |
63.7 |
169 |
| 031700311205 |
3G 2.5 |
10.0 |
63.7 |
169 |
| 031700411205 |
4G 2.5 |
10.9 |
84.9 |
209 |
| 031700511205 |
5G 2.5 |
12.0 |
106.1 |
256 |
| 031700310004 |
3G 4 |
11.2 |
101.2 |
231 |
| 031700410004 |
4G 4 |
12.5 |
135.0 |
295 |
| 031700510004 |
5G 4 |
13.9 |
168.7 |
366 |
| 031700410006 |
4G 6 |
14.0 |
202.4 |
398 |
| 031700510006 |
5G 6 |
15.5 |
253.1 |
492 |
| 031700410010 |
4G 10 |
17.4 |
344.7 |
642 |
| 031700510010 |
5G 10 |
19.4 |
430.8 |
800 |
| 031700410016 |
4G 16 |
20.2 |
574.1 |
959 |
| 031700510016 |
5G 16 |
22.5 |
717.7 |
1194 |
| 031700410025 |
4G 25 |
25.1 |
893.1 |
1486 |
| 031700510025 |
5G 25 |
28.1 |
1116.3 |
1860 |
| 031700410035 |
4G 35 |
28.6 |
1257.6 |
2013 |
| 031700510035 |
5G 35 |
32.1 |
1572.0 |
2525 |
| 031700410050 |
4G 50 |
33.9 |
1804.4 |
2860 |
| 031700410070 |
4G 70 |
39.2 |
2549.7 |
3940 |
| 031700410095 |
4G 95 |
44.8 |
3399.7 |
5205 |
| 031700410120 |
4G 120 |
50.3 |
4306.2 |
6579 |
Application :-
- Halogen-free cables for airports railway station, plant engineering and
Industrial machinery, in EMC sensitive instruments
Technical Data :-
- Nominal Voltage : U / U 300 / 500V O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius : Flexing approx. 10 x cable ø. Fixed
installation approx. 4 x cable ø
- Test Voltage : 4000V
Standard :-
- Adapted to EN 50525-3-11.
Cable Construction :-
- Bare copper, fine wire conductors, to EN 60228 Cl. 5.
- Core insulation of halogen-free compound TI6 to EN 50363-7.
- Black colour with white numbers DIN VDE 0293.
- Green/Yellow earth core in outer layer.
- Cores stranded in layers with optimal lay-length.
- Halogen-Free sheath compound TM7, to EN 50363-8.
- Outer jacket colour grey (RAL 7001).
- LSOH : Low Smoke Zero Halogen-Free.
Cable Design Parameters :-
| Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq.
mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
|
| 031800201050 |
2 x 0.5 |
4.8 |
8.7 |
34 |
| 031800311050 |
3G 0.5 |
5.1 |
13.0 |
41 |
| 031800301050 |
3 x 0.5 |
5.1 |
13.0 |
41 |
| 031800411050 |
4G 0.5 |
5.6 |
17.4 |
50 |
| 031800401050 |
4 x 0.5 |
5.6 |
17.4 |
50 |
| 031800511050 |
5G 0.5 |
6.0 |
21.7 |
60 |
| 031800711050 |
7G 0.5 |
6.7 |
30.4 |
78 |
| 031801211050 |
12G 0.5 |
8.9 |
52.2 |
136 |
| 031800201075 |
2 x 0.75 |
5.3 |
13.0 |
43 |
| 031800311075 |
3G 0.75 |
5.6 |
19.6 |
53 |
| 031800301075 |
3 x 0.75 |
5.6 |
19.6 |
53 |
| 031800411075 |
4G 0.75 |
6.1 |
26.1 |
65 |
| 031800401075 |
4 x 0.75 |
6.1 |
26.1 |
65 |
| 031800511075 |
5G 0.75 |
6.9 |
32.6 |
83 |
| 031800501075 |
5 x 0.75 |
6.9 |
32.6 |
83 |
| 031800711075 |
7G 0.75 |
7.6 |
45.6 |
105 |
| 031800701075 |
7 x 0.75 |
7.6 |
45.6 |
105 |
| 031800911075 |
9G 0.75 |
9.8 |
58.7 |
160 |
| 031801211075 |
12G 0.75 |
10.1 |
78.2 |
185 |
| 031801811075 |
18G 0.75 |
11.9 |
117.3 |
264 |
| 031802511075 |
25G 0.75 |
14.6 |
163.0 |
385 |
| 031800200001 |
2 x 1 |
5.6 |
17.4 |
51 |
| 031800310001 |
3G 1 |
6.0 |
26.1 |
64 |
| 031800300001 |
3 x 1 |
6.0 |
26.1 |
64 |
| 031800410001 |
4G 1 |
6.8 |
34.8 |
84 |
| 031800400001 |
4 x 1 |
6.8 |
34.8 |
84 |
| 031800510001 |
5G 1 |
7.5 |
43.5 |
101 |
| 031800710001 |
7G 1 |
8.9 |
60.8 |
143 |
| 031800810001 |
8G 1 |
9.7 |
69.5 |
169 |
| 031801210001 |
12G 1 |
11.1 |
104.3 |
231 |
| 031801410001 |
14G 1 |
11.7 |
121.7 |
262 |
| 031801810001 |
18G 1 |
13.2 |
156.5 |
334 |
| 031802510001 |
25G 1 |
16.2 |
217.3 |
488 |
| 031804110001 |
41G 1 |
19.7 |
356.4 |
749 |
| 031800201105 |
2 x 1.5 |
6.3 |
25.5 |
67 |
| 031800311105 |
3G 1.5 |
6.7 |
38.2 |
84 |
| 031800301105 |
3 x 1.5 |
6.7 |
38.2 |
84 |
| 031800411105 |
4G 1.5 |
7.3 |
50.9 |
105 |
| 031800511105 |
5G 1.5 |
8.2 |
63.7 |
132 |
| 031800711105 |
7G 1.5 |
9.0 |
89.1 |
169 |
| 031800811105 |
8G 1.5 |
10.6 |
101.9 |
216 |
| 031800911105 |
9G 1.5 |
11.5 |
114.6 |
250 |
| 031801211105 |
12G 1.5 |
12.1 |
152.8 |
299 |
| 031801411105 |
14G 1.5 |
12.9 |
178.3 |
344 |
| 031801811105 |
18G 1.5 |
14.5 |
229.2 |
437 |
| 031802511105 |
25G 1.5 |
17.2 |
318.3 |
612 |
| 031803411105 |
34G 1.5 |
19.8 |
432.9 |
820 |
| 031800201205 |
2 x 2.5 |
7.6 |
42.4 |
103 |
| 031800311205 |
3G 2.5 |
8.3 |
63.7 |
134 |
| 031800411205 |
4G 2.5 |
9.1 |
84.9 |
168 |
| 031800511205 |
5G 2.5 |
10.2 |
106.1 |
210 |
| 031800711205 |
7G 2.5 |
11.2 |
148.5 |
271 |
| 031801211205 |
12G 2.5 |
14.8 |
254.6 |
469 |
| 031800410004 |
4G 4 |
10.8 |
135.0 |
250 |
| 031800510004 |
5G 4 |
12.1 |
168.7 |
312 |
| 031800710004 |
7G 4 |
13.3 |
236.2 |
405 |
| 031800410006 |
4G 6 |
13.0 |
202.4 |
367 |
| 031800510006 |
5G 6 |
14.5 |
253.1 |
458 |
| 031800710006 |
7G 6 |
16.0 |
354.3 |
596 |
| 031800410010 |
4G 10 |
15.5 |
344.7 |
570 |
| 031800510010 |
5G 10 |
17.1 |
430.8 |
703 |
| 031800410016 |
4G 16 |
18.8 |
574.1 |
896 |
| 031800510016 |
5G 16 |
21.0 |
717.7 |
1119 |
| 031800410025 |
4G 25 |
23.4 |
893.1 |
1391 |
| 031800510025 |
5G 25 |
25.8 |
1116.3 |
1717 |
| 031800410035 |
4G 35 |
26.4 |
1257.6 |
1872 |
Application :-
- Halogen-free cables for airports railway station, plant engineering and
Industrial machinery, in EMC sensitive instruments
Technical Data :-
- Nominal Voltage : U / U 300 / 500V O
- Insulation Resistance : Min. 20 GΩ x cm
- Temperature Range : Flexing -5°C to +70°C.
- Fixed installation -30°C to +70°C
- Minimum Bending Radius : Flexing approx. 10 x cable ø. Fixed
installation approx. 4 x cable ø
- Test Voltage : 4000V
Standard :-
- Adapted to EN 50525-3-11.
Cable Construction :-
- Bare copper, fine wire conductors, to EN 60228 Cl. 5.
- Core insulation of halogen-free compound TI6 to EN 50363-7.
- Black colour with white numbers DIN VDE 0293.
- Green/Yellow earth core in outer layer.
- Cores stranded in layers with optimal lay-length.
- Halogen-Free sheath compound TM7, to EN 50363-8.
- Outer jacket colour grey (RAL 7001).
- LSOH : Low Smoke Zero Halogen-Free.
Cable Design Parameters :-
| Part Number |
No. of Cores and Nominal Cross Sectional Area (Sq.
mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
|
| 031900201050 |
2 x 0.5 |
7.0 |
22.1 |
72 |
| 031900311050 |
3G 0.5 |
7.3 |
28.4 |
82 |
| 031900301050 |
3 X 0.5 |
7.3 |
28.4 |
82 |
| 031900411050 |
4G 0.5 |
7.9 |
33.5 |
97 |
| 031900401050 |
4 X 0.5 |
7.9 |
33.5 |
97 |
| 031900511050 |
5G 0.5 |
8.4 |
39.9 |
111 |
| 031900711050 |
7G 0.5 |
8.9 |
49.4 |
129 |
| 031901211050 |
12G 0.5 |
11.3 |
78.0 |
208 |
| 031900201075 |
2 x 0.75 |
7.6 |
28.2 |
86 |
| 031900311075 |
3G 0.75 |
7.9 |
36.1 |
99 |
| 031900301075 |
3 X 0.75 |
7.9 |
36.1 |
99 |
| 031900411075 |
4G 0.75 |
8.4 |
43.9 |
114 |
| 031900401075 |
4 X 0.75 |
8.4 |
43.9 |
114 |
| 031900511075 |
5G 0.75 |
8.9 |
50.5 |
130 |
| 031900501075 |
5 X 0.75 |
8.9 |
50.5 |
130 |
| 031900711075 |
7G 0.75 |
9.8 |
66.4 |
163 |
| 031900701075 |
7 X 0.75 |
9.8 |
66.4 |
163 |
| 031901211075 |
12G 0.75 |
12.3 |
105.4 |
258 |
| 031901811075 |
18G 0.75 |
14.5 |
167.0 |
372 |
| 031902511075 |
25G 0.75 |
16.6 |
223.0 |
493 |
| 031900200001 |
2 x 1 |
7.9 |
33.0 |
96 |
| 031900310001 |
3G 1 |
8.2 |
43.7 |
111 |
| 031900300001 |
3 X 1 |
8.2 |
43.7 |
111 |
| 031900410001 |
4G 1 |
8.7 |
52.6 |
127 |
| 031900400001 |
4 X 1 |
8.7 |
52.6 |
127 |
| 031900510001 |
5G 1 |
9.5 |
63.6 |
153 |
| 031900710001 |
7G 1 |
10.5 |
82.9 |
192 |
| 031901210001 |
12G 1 |
13.3 |
151.9 |
322 |
| 031901810001 |
18G 1 |
15.5 |
211.0 |
444 |
| 031902510001 |
25G 1 |
17.7 |
283.3 |
586 |
| 031904110001 |
41G 1 |
22.0 |
456.5 |
923 |
| 031900201105 |
2 x 1.5 |
8.5 |
43.5 |
116 |
| 031900311105 |
3G 1.5 |
8.9 |
58.1 |
136 |
| 031900301105 |
3 X 1.5 |
8.9 |
58.1 |
136 |
| 031900411105 |
4G 1.5 |
9.6 |
71.9 |
163 |
| 031900511105 |
5G 1.5 |
10.6 |
102.6 |
209 |
| 031900711105 |
7G 1.5 |
11.3 |
129.4 |
247 |
| 031901211105 |
12G 1.5 |
14.8 |
206.9 |
416 |
| 031901411105 |
14G 1.5 |
0.0 |
232.9 |
185 |
| 031901811105 |
18G 1.5 |
17.2 |
292.1 |
575 |
| 031902511105 |
25G 1.5 |
20.1 |
392.5 |
783 |
| 031900311205 |
3G 2.5 |
10.4 |
102.5 |
204 |
| 031900411205 |
4G 2.5 |
11.4 |
125.7 |
248 |
| 031900511205 |
5G 2.5 |
12.6 |
152.2 |
302 |
| 031900711205 |
7G 1.5 |
13.9 |
200.4 |
382 |
| 031901211205 |
12G 2.5 |
17.6 |
318.2 |
613 |
| 031900410004 |
4G 4 |
13.4 |
180.6 |
350 |
| 031900510004 |
5G 4 |
14.7 |
221.6 |
426 |
| 031900710004 |
7G 4 |
16.2 |
292.6 |
537 |
| 031900410006 |
4G 6 |
15.8 |
261.2 |
497 |
| 031900510006 |
5G 6 |
17.3 |
317.6 |
601 |
| 031900710006 |
7G 6 |
18.8 |
426.2 |
754 |
| 031900410010 |
4G 10 |
19.0 |
414.0 |
753 |
| 031900510010 |
5G 10 |
21.2 |
506.2 |
932 |
| 031900410016 |
4G 16 |
22.2 |
688.7 |
1128 |
| 031900510016 |
5G 16 |
24.4 |
846.4 |
1377 |
| 031900410025 |
4G 25 |
27.0 |
1032.9 |
1690 |
| 031900410035 |
4G 35 |
30.7 |
1420.6 |
2257 |
| 031900410050 |
4 G 50 |
36.5 |
2009.2 |
3205 |
| 031900410070 |
4 G 70 |
41.6 |
2788.5 |
4319 |
| 031900410095 |
4 G 95 |
47.8 |
3656.7 |
5691 |
