SIF/SIFF
Standard :-
- Adapted to VDE 0250 part 1 and 502.
Application :-
- Silicone single core cables are used in high as well as extremely low
temperature areas. They are used mainly in the steel producing
industries, in aviation industries as well as in ship building, cement,
glass and ceramic factories. These cables are halogen-free, especially
suited for use in power stations.

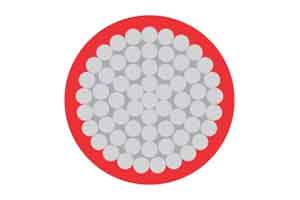

Cable Construction :-

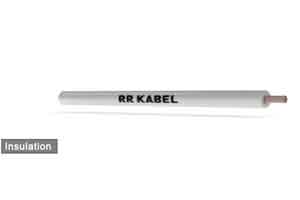

- Tinned copper conductor Cl. 5, to EN 60228. Silicone core insulation.
- Type SiFF : This variant is similar to SiF with high flexible copper
strands.
- *SiF and SiFF is also available with polyester yarn over the cable.
Cable Design Parameters :-
- Kindly complete the part numbers for SiF and SiFF by adding the suffix
(in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 –
red, 04 – blue, 05 – yellow, 07 – white, 09 – brown, 10 – orange, 12 –
grey.
Specifications :-
- Voltage Rating : U / U – 300 / 500V O
- Test Voltage : 2000V
- Temperature Range : -50°C to +180°C (up to + 200°C for short time with
adequate ventilation)
- Minimum Bending Radius : Fixed installation: 6 x cable ø. One bend at
end of core: 3 x cable ø
|
Part Number |
Nominal Cross Sectional Area (Sq. mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
| SiF |
08010101xx80 |
0.25 |
0.9 |
2.4 |
5.5 |
| 08010102xx80 |
0.5 |
2.1 |
4.5 |
8.6 |
| 08010103xx80 |
0.75 |
2.4 |
6.7 |
11.8 |
| 08010104xx80 |
1.0 |
2.5 |
9.0 |
13.5 |
| 08010105xx80 |
1.5 |
2.8 |
12.9 |
18.5 |
| 08010106xx80 |
2.5 |
3.5 |
21.5 |
30.0 |
| 08010107xx80 |
4.0 |
4.2 |
34.1 |
47.3 |
| 08010108xx80 |
6.0 |
5.2 |
51.2 |
71.1 |
| 08010109xx80 |
10.0 |
7.0 |
87.1 |
119.4 |
| 008010110xx80 |
16.0 |
8.4 |
145.1 |
187.7 |
| 08010111xx80 |
25.0 |
9.9 |
225.8 |
289.6 |
| 08010112xx80 |
35.0 |
11.0 |
317.9 |
398.3 |
| 08010113xx80 |
50.0 |
12.5 |
456.2 |
559.7 |
| 08010114xx80 |
70.0 |
14.5 |
644.6 |
765.8 |
| SiFF |
08020101xx80 |
0.25 |
1.9 |
2.5 |
6 |
| 08020102xx80 |
0.5 |
2.1 |
4.9 |
8 |
| 08020103xx80 |
0.75 |
2.5 |
7.3 |
12 |
| 08020104xx80 |
1.0 |
2.7 |
9.8 |
15 |
| 08020105xx80 |
1.5 |
3.0 |
14.7 |
21 |
| 08020106xx80 |
2.5 |
3.8 |
24.5 |
35 |
| 08020107xx80 |
4.0 |
4.6 |
39.2 |
54 |
| 08020108xx80 |
6.0 |
5.7 |
53.9 |
78 |
| 08020109xx80 |
10.0 |
7.6 |
89.8 |
133 |
SIHF
Standard :-
- Adapted to DIN VDE 0250 part 1 and part 816.
Application :-
- These are silicone multicore cables for use at the areas where extreme
temperature changes. Silicone cables are halogen – free cables and are
especially suited for installation in power stations. They have also
found their use in the steel producing industries, aviation industry,
ship building as well as in ceramic, glass and cement factories. Due to
elastical characteristic of core insulation, these are used as flexible
connection cable.
Specifications :-
- Voltage Rating : U / U – 300 / 500V O
- Test Voltage : 2000V
- Temperature Range : -50°C to +180°C (up to + 200°C for short time with
adequate ventilation)
- Breakdown Voltage : Min. 5000V
- Insulation Resistance : Min. 200 MΩ x km
- Minimum Bending Radius : Flexing 20 x cable ø. Fixed installation 4 x
cable ø

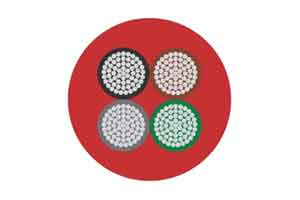

Cable Construction :-

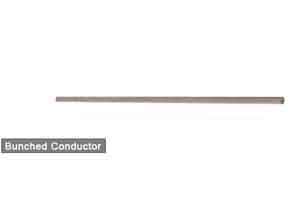

- Tinned copper conductor to Cl. 5, EN 60228.

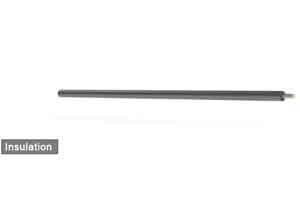

- Silicone core insulation.
- Core identification to DIN VDE 0293 – 308 colour coded or black cores
with continuous white numbers.
- For 2 – cores brown, blue., For 3 – cores and above cable provided
without protective conductor., For 6 – cores and above all black cores
with number coding.

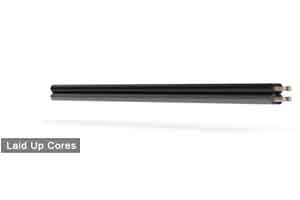

- Cores stranded in layers with optimal lay – length.

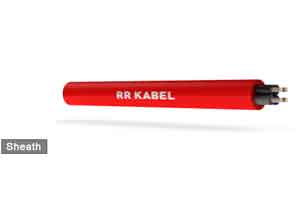

- Outer jacket of Silicone.
- Jacket colour preferably red brown.
| Part Number |
Nominal Cross Sectional Area (Sq. mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
| 80300201050 |
2 x 0.5 |
5.6 |
8 |
36 |
| 80300311050 |
3 x 0.5 |
5.9 |
12 |
43 |
| 80300411050 |
4 x 0.5 |
6.5 |
16 |
53 |
| 80300511050 |
5 x 0.5 |
7.1 |
20 |
64 |
| 80300611050 |
6 x 0.5 |
7.7 |
24 |
76 |
| 80300711050 |
7 x 0.5 |
7.9 |
28 |
82 |
| 80300811050 |
8 x 0.5 |
8.8 |
32 |
100 |
| 80301011050 |
10 x 0.5 |
10.2 |
40 |
131 |
| 80301211050 |
12 x 0.5 |
10.5 |
47.9 |
144 |
| 80301611050 |
16 x 0.5 |
11.7 |
63.9 |
182 |
| 80301811050 |
18 x 0.5 |
12.3 |
71.9 |
203 |
| 80302511050 |
25 x 0.5 |
14.7 |
99.9 |
287 |
| 80300201075 |
2 x 0.75 |
6.2 |
12 |
46 |
| 80300311075 |
3 x 0.75 |
6.6 |
18 |
56 |
| 80300411075 |
4 x0.75 |
7.2 |
24 |
69 |
| 80300511075 |
5 x 0.75 |
7.9 |
30 |
84 |
| 80300611075 |
6 x 0.75 |
8.6 |
36 |
100 |
| 80300711075 |
7 x 0.75 |
8.9 |
42 |
110 |
| 80300811075 |
8 x 0.75 |
9.9 |
47.9 |
132 |
| 80301011075 |
10 x 0.75 |
11.4 |
59.9 |
172 |
| 80301111075 |
12 x 0.75 |
11.8 |
71.9 |
191 |
| 80301611075 |
16 x 0.75 |
13.1 |
95.9 |
242 |
| 80301811075 |
18 x 0.75 |
13.8 |
107.9 |
270 |
| 80300200001 |
2 x 1 |
6.4 |
16 |
52 |
| 80300310001 |
3 x 1 |
6.8 |
24 |
64 |
| 80300410001 |
4 x 1 |
7.5 |
32 |
79 |
| 80300510001 |
5 x 1 |
8.2 |
40 |
96 |
| 80300610001 |
6 x 1 |
8.9 |
47.9 |
115 |
| 80300710001 |
7 x 1 |
9.2 |
55.9 |
127 |
| 80300810001 |
8 x 1 |
10.2 |
63.9 |
152 |
| 80301010001 |
10 x 1 |
11.8 |
79.9 |
198 |
| 80301210001 |
12 x 1 |
12.2 |
95.9 |
221 |
| 80301610001 |
16 x 1 |
13.6 |
127.8 |
281 |
| 80301810001 |
18 x 1 |
14.3 |
143.8 |
314 |
SIHF-GLS
Standard :-
- Adapted to DIN VDE 0250 part 1 and part 816.
Application :-
- These are silicone multicore cables screened with braiding for use at
the areas where extreme temperature changes. Silicone cables are halogen
– free cables and are especially suited for installation in power
stations. They have also found their use in the steel producing
industries, aviation industry, ship building as well as in ceramic,
glass and cement factories. Due to elastical characteristic of core
insulation, these are used as flexible connection cable.
Specifications :-
- Voltage Rating : U / U – 300 / 500V O
- Test Voltage : 2000V
- Temperature Range : -50°C to +180°C (up to + 200°C for short time with
adequate ventilation)
- Temperature Limit at the Conductor : In operation +180°C
- Insulation Resistance : Min. 200 MΩ x km
- Minimum Bending Radius : Flexing 10 x cable ø. Fixed Installation 5 x
cable ø
Cable Construction :-
- Tinned copper conductor to Cl. 5, EN 60228.

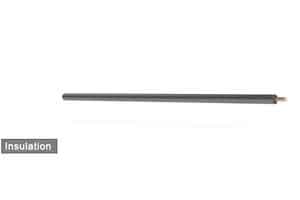

- Silicone core insulation.
- Core identification to DIN VDE 0293 – 308 colour coded or black cores
with continuous white numbers.
- For 2 – cores brown, blue., For 3 – cores and above cable provided
without protective conductor., For 6 – cores and above all black cores
with number coding.

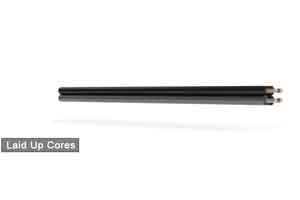

- Cores stranded in layers with optimal lay – length.

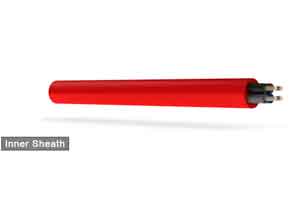

- Outer jacket of Silicone.
- Jacket colour preferably red brown.

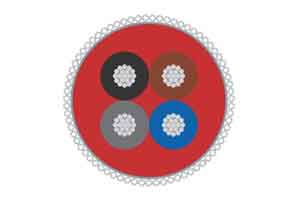

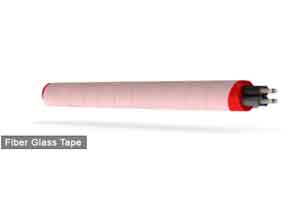

- Glass fibre tape over the jacket.

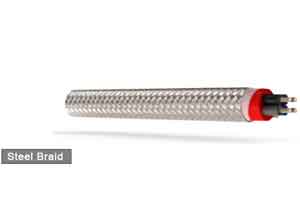

- Galvanised steel wire outer braiding.
| Part Number |
Nominal Cross Sectional Area (Sq. mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
| 80400201075 |
2 x 0.75 |
7.6 |
13 |
94 |
| 80400311075 |
3 x 0.75 |
8 |
19.6 |
102 |
| 80400411075 |
4 x 0.75 |
8.6 |
26.1 |
121 |
| 80400511075 |
5 x 0.75 |
9.3 |
32.6 |
134 |
| 80400711075 |
7 x 0.75 |
10.3 |
45.6 |
159 |
| 80400200001 |
2 x 1 |
7.8 |
17.4 |
103 |
| 80400310001 |
3 x 1 |
8.2 |
26.1 |
112 |
| 80400410001 |
4 x 1 |
8.9 |
34.8 |
131 |
| 80400510001 |
5 x 1 |
9.6 |
43.5 |
148 |
| 80400710001 |
7 x 1 |
10.6 |
60.8 |
180 |
| 80400201105 |
2 x 1.5 |
8.7 |
25.5 |
124 |
| 80400311105 |
3 x 1.5 |
9.2 |
38.2 |
142 |
| 80400411105 |
4 x 1.5 |
9.9 |
50.9 |
162 |
| 80400511105 |
5 x 1.5 |
10.7 |
63.7 |
189 |
| 80400711105 |
7 x 1.5 |
11.9 |
89.1 |
229 |
| 80401211105 |
12 x 1.5 |
15.3 |
152.8 |
355 |
| 80400201205 |
2 x 2.5 |
10 |
42.4 |
167 |
| 80400311205 |
3 x 2.5 |
10.6 |
63.7 |
191 |
| 80400411205 |
4 x 2.5 |
11.5 |
84.9 |
224 |
| 80400511205 |
5 x 2.5 |
12.5 |
106.1 |
260 |
| 80400711205 |
7 x 2.5 |
13.9 |
148.5 |
321 |
| 80400200004 |
2 x 4 |
11.8 |
67.5 |
234 |
| 80400300004 |
3 x 4 |
12.5 |
101.2 |
269 |
| 80400400004 |
4 x 4 |
14 |
135 |
329 |
| 80400500004 |
5 x 4 |
15.1 |
168.7 |
385 |
| 80400200006 |
2 x 6 |
14.2 |
101.2 |
324 |
| 80400300006 |
3 x 6 |
15 |
151.8 |
376 |
SIF-GL, SID, SID-GL
Standard :-
- Adapted to VDE 0250 part 1 and 502.
Application :-
- SiF-GL are single core silicon cables with fiber glass braid for use in
high as well as extremely low temperature areas. They are used mainly in
the steel producing industries, in aviation industries as well as in
ship building, cement, glass and ceramic factories. These cables are
halogen – free, especially suited for use in power stations. SiD/SiD-GL
is employed in control cabinet manufacturing, electric motor industry,
lighting technology, heating equipment, air conditioning systems.
Specifications :-
- Voltage Rating : U / U – 300 / 500V O
- Test Voltage : 2000V
- Temperature Range : -50°C to +180°C (up to + 200°C for short time with
adequate ventilation)
- Minimum Bending Radius : Fixed installation : 6 x cable ø. One bend at
end of core 3 x cable ø

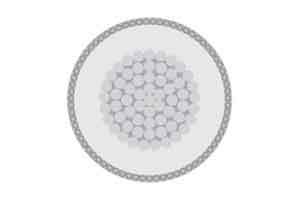

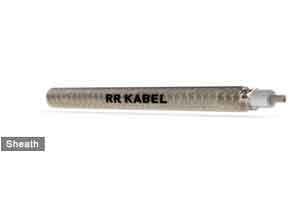

Cable Construction :-
- Type SiF-GL : Tinned copper conductor to EN 60228 Cl. 5.

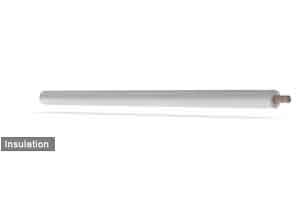

- Silicone core insulation.

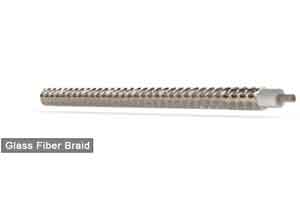

- Glass – fibre braiding.
- Type SiD : Solid tinned copper conductor with Silicone insulated.
- Type SiD-GL : This variant is similar to SiD with an additional glass –
fibre braiding.
|
Part Number |
Nominal Cross Sectional Area (Sq. mm) |
Approx. Cable Diameter (mm) |
Approx. Copper Weight (kg/km) |
Approx. Cable Weight (kg/km) |
|
| SiF-GL |
80501010180 |
0.25 |
2.4 |
2.4 |
6 |
| 80501020180 |
0.5 |
2.6 |
4.5 |
9 |
| 80501030180 |
0.75 |
2.9 |
6.7 |
12 |
| 80501040180 |
1 |
3 |
9 |
14 |
| 80501050180 |
1.5 |
3.3 |
12.9 |
20 |
| 80501060180 |
2.5 |
3.9 |
21.5 |
31 |
| 80501070180 |
4 |
4.7 |
34.1 |
48 |
| 80501080180 |
6 |
5.7 |
51.2 |
73 |
| 80501090180 |
10 |
7.5 |
87.1 |
126 |
| 80501100180 |
16 |
8.9 |
145.1 |
199 |
| 80501110180 |
25 |
10.8 |
225.8 |
305 |
| 80501120180 |
35 |
12.1 |
317.9 |
415 |
| 80501130180 |
50 |
14.1 |
456.2 |
587 |
| 80601010180 |
0.2 |
1.7 |
2 |
4.4 |
| SiD |
80601020180 |
0.28 |
1.8 |
2.8 |
5.4 |
| 80601030180 |
0.5 |
2 |
5 |
8.1 |
| 80601040180 |
0.75 |
2.1 |
7.4 |
10.6 |
| 80601050180 |
1 |
2.3 |
9.9 |
13.6 |
| 80601060180 |
1.5 |
2.5 |
14.9 |
18.9 |
| 80601070180 |
2.5 |
3.2 |
24.8 |
31.3 |
| 80601080180 |
4 |
3.9 |
39.6 |
49 |
| 80601090180 |
6 |
4.4 |
59.4 |
70.3 |
| SiD-GL |
80701010180 |
0.5 |
2.4 |
5 |
11 |
| 80701020180 |
0.75 |
2.5 |
7.4 |
14 |
| 80701030180 |
1 |
2.7 |
9.9 |
17 |
| 80701040180 |
1.5 |
2.9 |
14.9 |
22 |
| 80701050180 |
2.5 |
3.6 |
24.8 |
35 |
| 80701060180 |
4 |
4.3 |
39.6 |
53 |
| 80701070180 |
6 |
4.8 |
59.4 |
74 |
