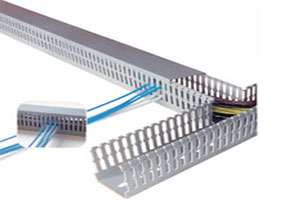

| Wiring Ducts - Narrow Slot | |||||
| Article No. | Type | Description | Duct Size W X H (mm) |
Duct Size W X H (Inch) |
Meter/Box |
| 01 17 01250 | TBWDN25X25LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 25 x 25 | 0.98 x 0.98 | 120 |
| 01 17 01066 | TBWDN25X40LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 25 x 40 | 0.98 x 1.57 | 96 |
| 01 17 01586 | TBWDN25X45LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 25 x 45 | 0.98 x 1.77 | 96 |
| 01 17 01251 | TBWDN25X60LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 25 x 60 | 0.98 x 2.36 | 48 |
| 01 17 01588 | TBWDN25X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 25 x 80 | 0.98 x 3.15 | 24 |
| 01 17 01584 | TBWDN25X100LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 25 x 100 | 0.98 x 3.94 | 24 |
| 01 17 01252 | TBWDN30X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 30 x 80 | 1.18 x 3.15 | 48 |
| 01 17 01068 | TBWDN40X40LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 40 x 40 | 1.57 x 1.57 | 64 |
| 01 17 01070 | TBWDN40X60LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 40 x 60 | 1.57 x 2.36 | 48 |
| 01 17 01072 | TBWDN40X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 40 x 80 | 1.57 x 3.15 | 32 |
| 01 17 01253 | TBWDN40X100LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 40 x 100 | 1.57 x 3.94 | 16 |
| 01 17 01590 | TBWDN45X45LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 45 x 45 | 1.77 x 1.77 | 64 |
| 01 17 01592 | TBWDN60X40LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 60 x 40 | 2.36 x 1.57 | 24 |
| 01 17 01074 | TBWDN60X60LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 60 x 60 | 2.36 x 2.36 | 36 |
| 01 17 01076 | TBWDN60X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 60 x 80 | 2.36 x 3.15 | 24 |
| 01 17 01254 | TBWDN60X100LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 60 x 100 | 2.36 x 3.94 | 12 |
| 01 17 01596 | TBWDN80X40LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 80 x 40 | 3.15 x 1.57 | 16 |
| 01 17 01598 | TBWDN80X60LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 80 x 60 | 3.15 x 2.36 | 12 |
| 01 17 01255 | TBWDN80X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 80 x 80 | 3.15 x 3.15 | 16 |
| 01 17 01594 | TBWDN80X100LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 80 x 100 | 3.15 x 3.94 | 8 |
| 01 17 01582 | TBWDN100X60LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 100 x 60 | 3.94 x 0.98 | 12 |
| 01 17 02670 | TBWDN100X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 100 x 80 | 3.94 x 3.15 | 8 |
| 01 17 01256 | TBWDN100X100LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 100 x 100 | 3.94 x 3.94 | 8 |
| 01 17 02672 | TBWDN120X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 120 x 80 | 4.72 x 3.15 | 8 |
| Wiring Ducts - Un-Slotted (Solid Wall) | |||||
| 01 17 01236 | TBWDS25X25LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 25 x 25 | 0.98 x 0.98 | 120 |
| 01 17 01084 | TBWDS25X40LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 25 x 40 | 0.98 x 1.57 | 96 |
| 01 17 01604 | TBWDS25X45LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 25 x 45 | 0.98 x 1.77 | 96 |
| 01 17 01237 | TBWDS25X60LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 25 x 60 | 0.98 x 2.36 | 48 |
| 01 17 01606 | TBWDS25X80LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 25 x 80 | 0.98 x 3.15 | 24 |
| 01 17 01602 | TBWDS25X100LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 25 x 100 | 0.98 x 3.94 | 24 |
| 01 17 01238 | TBWDS30X80LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 30 x 80 | 1.18 x 3.15 | 48 |
| 01 17 01085 | TBWDS40X40LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 40 x 40 | 1.57 x 1.57 | 64 |
| 01 17 01083 | TBWDS40X60LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 40 x 60 | 1.57 x 2.36 | 48 |
| 01 17 01086 | TBWDS40X80LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 40 x 80 | 1.57 x 3.15 | 32 |
| 01 17 01239 | TBWDS40X100LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 40 x 100 | 1.57 x 3.94 | 16 |
| 01 17 01608 | TBWDS45X45LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 45 x 45 | 1.77 x 1.77 | 64 |
| 01 17 01610 | TBWDS60X40LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 60 x 40 | 2.36 x 1.57 | 24 |
| 01 17 01088 | TBWDS60X60LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 60 x 60 | 2.36 x 2.36 | 36 |
| 01 17 01087 | TBWDS60X80LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 60 x 80 | 2.36 x 3.15 | 24 |
| 01 17 01240 | TBWDS60X100LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 60 x 100 | 2.36 x 3.94 | 12 |
| 01 17 01614 | TBWDS80X40LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 80 x 40 | 3.15 x 1.57 | 16 |
| 01 17 01616 | TBWDS80X60LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 80 x 60 | 3.15 x 2.36 | 12 |
| 01 17 01241 | TBWDS80X80LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 80 x 80 | 3.15 x 3.15 | 16 |
| 01 17 01612 | TBWDS80X100LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 80 x 100 | 3.15 x 3.94 | 8 |
| 01 17 01600 | TBWDS100X60LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 100 x 60 | 3.94 x 2.36 | 12 |
| 01 17 02736 | TBWDS100X80LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 100 x 80 | 3.94 x 3.15 | 8 |
| 01 17 01242 | TBWDS100X100LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 100 x 100 | 3.94 x 3.94 | 8 |
| 01 17 02737 | TBWDS120X80LG2 | Wiring Duct solid wall, Light Grey, 2 meter | 120 x 80 | 4.72 x 3.15 | 8 |
| Wiring Ducts - Wide Slot | |||||
| 01 17 02546 | TBWDW25X25LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 25 x 25 | 0.98 x 0.98 | 120 |
| 01 17 02547 | TBWDW25X40LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 25 x 40 | 0.98 x 1.57 | 96 |
| 01 17 02548 | TBWDW25X45LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 25 x 45 | 0.98 x 1.77 | 96 |
| 01 17 02549 | TBWDW25X60LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 25 x 60 | 0.98 x 2.36 | 48 |
| 01 17 02517 | TBWDW25X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 25 x 80 | 0.98 x 3.15 | 24 |
| 01 17 02550 | TBWDW25X100LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 25 x 100 | 0.98 x 3.94 | 24 |
| 01 17 02519 | TBWDW30X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 30 x 80 | 1.18 x 3.15 | 48 |
| 01 17 02551 | TBWDW40X40LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 40 x 40 | 1.57 x 1.57 | 64 |
| 01 17 02552 | TBWDW40X60LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 40 x 60 | 1.57 x 2.36 | 48 |
| 01 17 02521 | TBWDW40X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 40 x 80 | 1.57 x 3.15 | 32 |
| 01 17 02553 | TBWDW40X100LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 40 x 100 | 1.57 x 3.94 | 16 |
| 01 17 02554 | TBWDW45X45LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 45 x 45 | 1.77 x 1.77 | 64 |
| 01 17 02555 | TBWDW60X40LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 60 x 40 | 2.36 x 1.57 | 24 |
| 01 17 02556 | TBWDW60X60LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 60 x 60 | 2.36 x 2.36 | 36 |
| 01 17 02523 | TBWDW60X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 60 x 80 | 2.36 x 3.15 | 24 |
| 01 17 02557 | TBWDW60X100LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 60 x 100 | 2.36 x 3.94 | 12 |
| 01 17 02558 | TBWDW80X40LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 80 x 40 | 3.15 x 1.57 | 16 |
| 01 17 02559 | TBWDW80X60LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 80 x 60 | 3.15 x 2.36 | 12 |
| 01 17 02525 | TBWDW80X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 80 x 80 | 3.15 x 3.15 | 16 |
| 01 17 02560 | TBWDW80X100LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 80 x 100 | 3.15 x 3.94 | 8 |
| 01 17 02561 | TBWDw100X60LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 100 x 60 | 3.94 x 0.98 | 12 |
| 01 17 02674 | TBWDW100X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 100 x 80 | 3.94 x 3.15 | 8 |
| 01 17 02562 | TBWDW100X100LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 100 x 100 | 3.94 x 3.94 | 8 |
| 01 17 02676 | TBWDW120X80LG2 | Wiring Duct slotted wall, Light Grey, 2 meter | 120 x 80 | 4.72 x 3.15 | 8 |
| TOOLS AND ACCESSORIES | |||||
| 01 17 00687 | TRIT | Rivet installation tool | |||
| 01 17 00688 | TWTCT | Wiring Duct cutting tool | |||
| 01 17 00689 | TNR | Rivet | |||
