Elmex Universal (TS35mm & TS32mm)DIN Rail Mounted Feed Through Terminals in
Polyamide 66 Housing offers the complete range suitable for all control and
power application. The proven screw clamp & spring clamp design offers high
contact force and is easy to use. The range covers terminals for conductor
sizes from 0.5 sq mm to 95 sq mm for screw clamp and 0.5 sq mm to 16 sq mm
for spring clamp. The special foot design provides the slot for easy
mounting and removal of a single terminal from the stack, using a
screwdriver.
Elmex Spring Loaded Terminals employ compression springs
below the contact clamp assembly, for better and more reliable connection
for high vibration applications.
elmex Earth Terminal Blocks replace conventional bus-bar used for earthing.
The structural design is such that the mounting rail not only has a
mechanical but also an electrical function. Earthing is established through
the foot which clamps directly onto the rail. Earthing Terminal Blocks are
mounted on the same rail along with other terminal blocks. The conducting
part is Brass with Nickel-Tin plating, providing a low resistance path.
Moreover, the housing is a Green-Yellow combination in accordance with
universally accepted colour code for earthing.
Terminal Blocks with
metallic foot suitable specially for Grounding Applications.

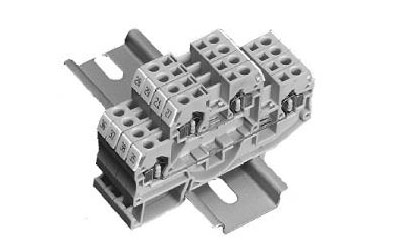

elmex Multi Level Terminals are the perfect solution where space is a constraint and high density wiring is needed. The compact design of these Terminals with 6 mm thickness allows double wiring density and reducing the total number of terminal blocks to half. KUDD4 terminal is specially recommended as its upper level is offset laterally by half of the terminal block pitch. This offers better accessibility to the lower connection screws and better visibility of the lower marking labels. KU2D4 terminal blocks with internally shorted versions are suitable for one input and three outputs. elmex three level terminal blocks can be used for high-density wiring and for wiring special equipments such as proximity sensors. DUSD4 has a special link attached to the middle and lower level to facilitate the interconnection between adjacent terminal blocks, DU3D4 and DUSD4. The negative and positive circuits can be easily bridged together and then connected to a power source with DU3D4 terminal.
Vibrations adversely affect terminal connection, causing loosening of conductors and consequent overheating of terminal blocks. elmex Terminal Blocks are therefore designed to be inherently resistant to vibrations in normal applications. However, high vibrations can arise due to vibration affected installation sites, such as installations in and around mines, proximity to heavy machine shop,forging/ die casting shops, cement/steel plants machinery, textile machines and so on. Special designs for high vibration applications are also preferred in some Power Projects, Power Distribution Centers, Motor Control Centers and Relay Control Panels. depending on proximity of vibration generating equipment. elmex Standard Screw Clamp design, with compression springs, provided under the clamp, offer a reliable solution for high vibration applications of Terminal Blocks. These are called "SPRING LOADED" terminal blocks. FEED THROUGH TYPE: KST 4UWS, KST 6WS, KULT 4, KULT 6, KULT 1 DISCONNECTING TYPES: KULTD 4WS, KULTD 6 The spring is assembled under compression, so that it engages firmly with the contact clamp. For inserting the conductor, clamping screws should be unscrewed and pressed, which results into pushing down the contact clamp against spring action and creates space for conductor insertion below the current bar. When the screw is tightened with specified tightening torque,the clamping part moves to cause gripping of conductor with current bar, as with normal clamping process, but in case of spring loaded design, the conductor is gripped with additional clamping force exerted by the compression spring from below the clamping part. Special design of the current bar with a recess is available to anchor the hook bladed cable lug, in the current bar. This provision creates conductor locking within terminal block once it is clamped, so that it cannot be pulled out accidentally. This design is presently available in types KULT 1, 4, 6 and KULTD 4, 6.
Applications in Control & Automation require fuse protection facility. elmex offers Terminal Blocks with built-in safety fuse levers. These Terminal Blocks accommodate a glass cartridge fuse of 5 mm x 20 mm, 5 mm x 25 mm or 6 mm x 32 mm size. The fuse holder is made of special grade phosphor bronze and hence offers low contact resistance. A solid brass link type DL4 in place of the fuse makes it possible to use it as a disconnection type terminal block. KUDDF4 is a fuse terminal and a standard terminal block (feed through) combined in one housing, giving cost, time and space economy. It occupies the space of one terminal block and works as a pair of terminal blocks - the upper tier with fuse protection. One terminal can be assigned to one pair of signals. An LED is provided for blown-fuse indication. Standard operating voltages can be selected from the range of
Certain Application in Control and Measurement circuits necessitate locating operating faults quickly without disconnecting the conductors. elmex offers a range of disconnecting type terminal blocks which can be used to disconnect the continuity without actually removing the wires. KULTD 4: These Terminal Blocks finds special application in control and instrumentation industry. The hinged knife edge lever can be easily pushed open to simulate faulty condition. The copper link and brass contacts are tin plated offering low contact resistance. KUTSD 6 / KUTD 10 : This terminal blocks mainly find applications in secondary circuit of CT, Relay Panels etc. A clearly visible sliding link is used for disconnection. The link can be moved to one side by unscrewing. The tightening of the screw prevents it from sliding back. The 4 mm diameter nut assembly can be used as test sockets. KUTSD 6 offers feature of shorting two adjacent terminals using an internal removable shorting link, useful in SCADA applications.

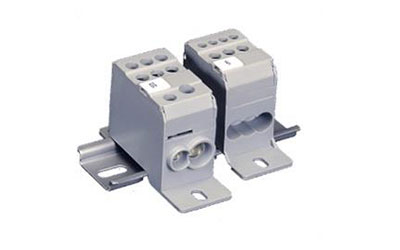

elmex distribution blocks are an Innovative Engineering Solution to satisfy customer's needs. They find application in Power Distribution for Control Circuits and can also be used to centralize earthing for the entire panel. These blocks are completely shrouded and accommodate single input and multiple outputs. They replace conventional open Bus-Bars, ensuring perfect continuity. Two varieties of Distribution Blocks are available - One is suitable for identical size of conductors as input/output and Another for high conductor size as input and lower as output. FDBK extends the same advantages and features of DBKDistribution Blocks. These Blocks are suitable for control applications.
elmex Micro Terminal Blocks are small in size and light in weight, yet functionally same as Standard Terminal Blocks. They are specially developed for installation where space is extremely limited but the same cable density is required as in a normal situation. They can be mounted on TS 15 Rail, which is also smaller, lighter and more economical than TS 32 and TS 35 Rails. The terminals are recommended for use in industries like elevators, automation etc.
elmex Plug & Socket type terminal PS 8M is developed for applications in semi-draw out type motor control circuits/feeders. The connection between plug & socket parts of the terminal is established by contact mechanism employing spring action that provides permanent high contact pressure with very low resistance to securely connect the plug pin with the socket. PS 8M terminals are stackable to facilitate termination with disconnecting facility, for multiple cables, depending on the application. This feature allows use of only required number of terminals for stacking. The draw-out feature of PS 8M makes it convenient choice for panels with modular constructions wherein separately wired modules or panels cab be connected with one another once they are completely wired internally. Such a modular design facilitates quick disconnection for test and maintenance.
elmex Lighting Pole Terminals offer safe and reliable termination solutions for Street Light Wiring requirements. The special costruction of Lighting Pole Terminals ensures minimum junctions unlike contemporary Terminal Blocks, thus making them suitable for long distance wiring withoug much heat generation and minimum voltage drop A solid Copper Alloy Piece functions as Currenty Carrying part and Wire Clamping unit. Lighting Pole Terminals come in two varieties - one with two input and one output, and the other with three inputs and one output. The first variety is suitable for contiuous wiring across the lenght of streets. The second variety offers a facility for taking a 'T' junction as an additional feature. The elmex range includes Lighting Pole Terminals suitable for 25 sq mm and 35 sq mm wires. elmex offers Allen Key operated or Screw Driver operated terminals.
A thermocouple is a bi-metallic junction ie a junction between two different metals that produces voltage related to temperature difference. Thermocouples are classified depending on different alloys used for different temperature ranges. Some of the thermocouple types are as ; 'K' Type : Chromel (Ni/Cr) + Alumel (Ni/Al) 'J' Type : Iron (Fe) + Constantan (Cu/Ni) 'T' Type : Copper (Cu) + Constantan (Cu/Ni) 'E' Type : Chromel (Ni/Cr) + Constantan (Cu/Ni) For temperature measuring requirement, wherein measuring point is far from the measuring instrument, intermediate connections have to be made for extending the path. For such application conventional type terminal blocks cannot be used to create the required extension, since current carrying parts are made of either copper or copper alloy which are different than the thermocouple metals or alloys as mentioned above. to overcome this problem thermocouple terminal blocks are employed. Thermocouple terminal blocks are constructed using the same type of metal / alloy as that of thermocouple intended for measuring temperature. Thermocouple terminal blocks are used in pairs. elmex offers thermocouple terminal blocks in all four types of thermocouples described above.
elmex Component Housings act as simple Interface Circuits duly mounted in the Terminal Block itself, saving assembly time, cost of wires and labour in the control cubicle. This avoids inter-connection between simple terminals and the components mounted on a separate PCB in the panel, offering flexibility. A variety of components like Diode/s, LED, Resistor, Varistor (MOV) are mounted in Insulation Housing of double deck terminals like KUDD4 as required for the application. They find application in PLC, DCS, Machine Tools and other Control & Automation panels. Component Housings offer an alternative to conventional method of connecting terminal blocks with components on a separate PCB in a panel. They act as simple interface circuits duly mounted in terminal blocks, saving time and labour. The variety of Component Housings for mounting Diode/s, LED, Resistor, MOV in various combination are available using insulation housing of KUDD4.
Earth N- Series Terminal Blocks have conductor termination by well proven screw clamp technology and are manufactured using Polyamide 6,6 Insulation Housing. This series currently consists of 4, 6, 10 sq mm Terminals (ETN 4, ETN 6, ETN 10) all with identical profiles. All ET - N Series terminals have funnel shaped wire entry hole with metal foot directly mountable on DIN Rail.
elmex offers a range of Disconnecting Type Terminal Blocks which can be used to disconnect the continuity without actually removing the wires. Certain applications in control and measurement circuits necessitate locating operating faults quickly without disconnecting the conductors. These Terminal Blocks mainly find applications in secondary Circuit of CT, Relay Panels, etc. A clearly visible Sliding Link is used for disconnection. The link can be moved to one side by unscrewing. The tightening of the screw prevents it from sliding back. The 4 mm diameter nut assembly can be used as test sockets.
The Panel Mounted terminals of elmex range are so designed as to fit on any panel / surface. The terminals are stackable and can be fixed on the surface with the help of fixing screws at the end.
elmex KUT-N Series terminal blocks, tested and approved for 1000 V DC suitable for use in photovoltaic systems. These terminal blocks havde conductor termination by well proven screw clamp technology and are manufactured using Polyamide 6,6 insulation housing. All KUT-N series terminals have funnel shaped wire entry hole which guides wire perfectly into the clamp even in difficult and congested places of wiring. This also fully shrouds the conductor termination, thus providing electrical cover for safety.
elmex range of Neutral Links KNL4, KNL16, KNL35 are suitable for termination of neutral and ground wires on bus bar. They are available for termination of rated conductor sizes 6, 16, 35 sq mm respectively. For mounting on DIN Rail, elmex side clamp type SCNL is to be used which is suitable for mounting on TS 35/TH 35 type DIN Rails. For surface mount applications, plastic support elmex type KNLSUP can be used which is designed for mounting both sizes of bus bars.
Applications in Control & Automation require fuse protection facility. elmex offers Terminal Blocks DCF4 with built-in safety fuse levers. These Terminal Blocks accommodate a glass cartridge fuse of 5 mm x 20 mm, 5 mm x 25 mm size. An LED is provided for blown-fuse indication. Standard operating voltages can be selected from the range of:
elmex Micro Terminal Blocks are small in size and light in weight, yet functionally same as Standard Terminal Blocks. They are specially developed for installation where space is extremely limited but the same cable density is required as in a normal situation. They can be mounted on TS 15 Rail, which is also smaller, lighter and more economical than TS 32 and TS 35 Rails. The terminals are recommended for use in industries like elevators, automation etc.
elmex Multi Level Terminals are the perfect solution where space is a constraint and high density wiring is needed. The compact design of these Terminals with 6 mm thickness allows double wiring density and reducing the total number of terminal blocks to half. elmex three level terminal blocks can be used for high-density wiring and for wiring special equipments such as proximity sensors. elmex 8-level terminal block type DS8L offers very good wiring density particularly for marshaling applications where large number of wires are to be terminated and space is a constraint. Screwless multi-level terminal block wire termination is by spring clamp mechanism. Spring clamps are made using special grade austenitic stainless steel material having very good spring properties, high fatigue strength, high tensile strength and better resistance to corrosion effects.
Certain Application in Control and Mesearurement circuits necessiate locating operating faults quickly without disconnecting the conductors. elmex offers a range of disconnecting type terminal blocks which can be used to disconnect the continuity without actually removing the wires. DSDT 2.5 : These Terminal Blocks finds special application in control and instrumentation industry. The hinged knife edge lever can be easily pushed open to simulate faulty condition. The copper link and brass contacts are tin plated offering low contact resistance.
elmex Component Housings act as simple Interface Circuits duly mounted in the Terminal Block itself, saving assembly time, cost of wires and labour in the control cubicle. This avoids inter-connection between simple terminals and the components mounted on a separate PCB in the panel, offering flexibility. A variety of components like Diode/s, Anode/s, are mounted in Insulation Housing of double deck terminals like DSDD2.5 as required for the application. They find application in PLC, DCS, Machine Tools and other Control & Automation panels. Component Housings offer an alternative to conventional method of connecting terminal blocks with components on a separate PCB in a panel. They act as simple interface circuits duly mounted in terminal blocks, saving time and labour.
elmex introduces Plug & Socket type terminal DPSC 5.08 & DPSC 7.5, offering innovative solution for wiring and interconnecting electrical circuits. These terminal blocks are provided with integrated snap fit locking arrangement and are available with fixing flanges for surface/panel mount applications. Terminal blocks with flange are also available for 'wire to wire', 'wire to board' termination of wiring leads The draw-out feature of DPSC Series makes it convenient choice for panels with modular constructions wherein separately wired modules or panels cab be connected with one another once they are completely wired internally. Such a modular design facilitates quick disconnection for test and maintenance.
The Panel Mounted terminals of elmex range are so designed as to fit on any panel / surface. The terminals are stackable and can be fixed on the surface with the help of fixing screws at the end
elmex Earth Terminal Blocks replace conventional bus-bar used for earthing. The structural design is such that the mounting rail not only has a mechanical but also an electrical function. Earthing is established through the foot which clamps directly onto the rail. Earthing Terminal Blocks are mounted on the same rail along with other terminal blocks. The conducting part is Brass with Nickel-Tin plating, providing a low resistance path. Moreover, the housing is a Green-Yellow combination in accordance with universally accepted colour code for earthing.
elmex Universal (TS32mm)DIN Rail Mounted Feed Through Terminals in Polyamide 66 Housing offers the complete range suitable for all control and power application. The proven spring clamp design offers high contact force and is easy to use. The range covers terminals for conductor sizes from 0.5 sq mm to 16 sq mm for spring clamp. The special foot design provides the slot for easy mounting and removal of a single terminal from the stack, using a screwdriver.
While standard Screw Clamp or Spring Clamp terminal blocks are designed for direct connection of conductors, (solid, stranded, flexible), simply after stripping the insulation, there are other wiring practices and applications where conductors have to be provided with ring type or fork types lugs, for more secured connections. elmex has developed a whole range of Stud type terminal blocks with connection possibility from 0.5 sq mm to 16 sq mm, which accept ring/fork type lugged cables. These are available in both Polyamide 6.6 and in Melamine Housings. For Stud Type terminals KAT, studs have special long nuts, with a slot at the top, so that the nuts can be operated using screwdrivers. This facility of using screw-driver is very useful where space-constraints may not allow use of standard spanner for tightening. These nuts also serve as test sockets, in which pins of test wires can be plugged. These Stud Type terminals are used with protective transparent covers, which enclose the live parts, as protection against accidental contact. Such covers can be provided from a a stack of stud terminals. All the metal parts used are of brass (copper alloy) which make them suitable for use in applications like switch boards, switch yards, marshaling racks etc., generally exposed to environmental extremities.
Certain Application in Control and Measurement circuits necessitate locating operating faults quickly without disconnecting the conductors. elmex offers a range of disconnecting type terminal blocks which can be used to disconnect the continuity without actually removing the wires.

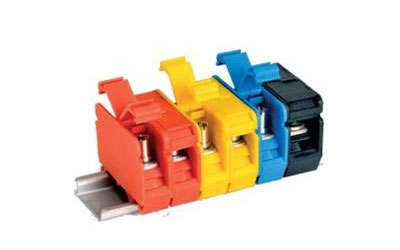

These are the same group of Stud Type Terminals, however, they have their own hinged individual protective covers, which are lifted up for connection and closed down after conductors are connected. This design makes them totally finger-safe, enhancing total safety.
elmex offers a wide variety of Power / Bus-Bar / High Current Terminals suitable for all types of cables (solid, stranded, with fork type and ring type lugs) both in Polyamide 66 and Melamine Housing. In the Feed Through Range, Terminal types KUT25, 35, 50 and 95, with respective rated currents 101, 125, 150 and 232 Amps are available for connecting solid and stranded conductors. Power (Bus-Bar) Type terminal range covers DPBB50, 70 and 120, rated upto 269 Amps, for fork/ring type lugs, bolted to the current-bar of the terminal block. Protection and Safety For increased creepage distance and safety against accidental contact, partition plates / barrier plates are assembled along with the terminal block. Protective transparent covers are assembled at the slots provided on the barrier plates. This provisions make the assembly fully safe, while simultaneously offering open design of terminals for connection fork / ring lugged cables.
KBT 100
The Panel Mounted terminals of elmex range are so designed as to fit on any panel / surface. The terminals are stackable and can be fixed on the surface with the help of fixing screws at the end.
While standard Screw Clamp or Spring Clamp terminal blocks are designed for direct connection of conductors, (solid, stranded, flexible), simply after stripping the insulation, there are other wiring practices and applications where conductors have to be provided with ring type or fork types lugs, for more secured connections. elmex has developed a whole range of Stud type terminal blocks with connection possibility from 0.5 sq mm to 35 sq mm, which accept ring/fork type lugged cables. These are available in both Polyamide 6.6 and in Melamine Housings. F For stud Type terminals KBT, standard nuts are provided on the studs (nut driver operated) for securing the lugged conductors. These Stud Type terminals are used with protective transparent covers, which enclose the live parts, as protection against accidental contact. Such covers can be provided from a stack of stud terminals. All the metal parts used are of brass (copper alloy) which make them suitable for use in applications like switch boards, switch yards, marshaling racks etc., generally exposed to environmental extremities.
These are the same group of Stud Type Terminals, however, they have their own hinged individual protective covers, which are lifted up for connection and closed down after conductors are connected. This design makes them totally finger-safe, enhancing total safety.
These are the same group of Stud Type Terminals, however, they have their own hinged individual protective covers, which are lifted up for connection and closed down after conductors are connected. This design makes them totally finger-safe, enhancing total safety.
While standard Screw Clamp or Spring Clamp terminal blocks are designed for direct connection of conductors, (solid, stranded, flexible), simply after stripping the insulation, there are other wiring practices and applications where conductors have to be provided with ring type or fork types lugs, for more secured connections. elmex has developed a Stud type terminal blocks with connection possibility 10 sq mm, which accept ring/fork type lugged cables. These are available in both Polyamide 6.6 and in Melamine Housings. For Stud Type terminal KABT M4, studs have special long nuts, with a slot at the top, so that the nuts can be operated using screw-drivers as well using nut-drivers. These Stud Type terminals are used with protective transparent covers, which enclose the live parts, as protection against accidental contact. Such covers can be provided from a stack of stud terminals. All the metal parts used are of brass (copper alloy) which make them suitable for use in applications like switch boards, switch yards, marshaling racks etc., generally exposed to environmental extremities.
These are the same group of Stud Type Terminals, however, they have their own hinged individual protective covers, which are lifted up for connection and closed down after conductors are connected. This design makes them totally finger-safe, enhancing total safety. As an innovative solution, elmex has developed Stud Terminals OAT 2.5 and OAT 6. These terminals are provided with Hinged Covers within which the nuts remain captive. When the covers are opened up, carrying the captive nuts, the threaded bolts of the terminals are ready to receive the conductor prepared using Ring / Fork type lug crimped with the conductor. When the covers are closed the captive nut positions itself on the threaded bolt. The nuts are then tightened with a screw-driver, to establish the connections. The covers fully shroud the live metal parts and the insulated lug in the conductor clamping area, ensuring safety against electric shock hazards. Since the nuts are captive in the hinged covers, (i.e. No need to open them up), this type of construction facilitates quick and convenient way of making connections.
Certain Application in Control and Measurement circuits necessitate locating operating faults quickly without disconnecting the conductors. elmex offers a range of disconnecting type terminal blocks which can be used to disconnect the continuity without actually removing the wires. When the covers are closed the captive nut positions itself on the threaded bolt. The nuts are then tightened with a screw-driver, to establish the connections. The covers fully shroud the live metal parts and the insulated lug in the conductor clamping area, ensuring safety against electric shock hazards. Since the nuts are captive in the hinged covers, (i.e. No need to open them up), this type of construction facilitates quick and convenient way of making connections.
elmex offers a wide variety of Power / Bus-Bar / High Current Terminals suitable for all types of cables (solid, stranded, with fork type and ring type lugs) both in Polyamide 66 and Melamine Housing. In the Feed Through Range, Terminal types KUT25, 35, 50 and 95, with respective rated currents 101, 125, 150 and 232 Amps are available for connecting solid and stranded conductors. Power (Bus-Bar) Type terminal range covers DPBB50, 70 and 120, rated upto 269 Amps, for fork/ring type lugs, bolted to the current-bar of the terminal block. Protection and Safety For increased creepage distance and safety against accidental contact, partition plates / barrier plates are assembled along with the terminal block. Protective transparent covers are assembled at the slots provided on the barrier plates. This provisions make the assembly fully safe, while simultaneously offering open design of terminals for connection fork / ring lugged cables.
elmex offers a new design type SPT in which hinged covers are provided over the cable termination points.Cables with fork or ring lugs are connected by nuts to the terminal after lifting hinged covers which are closed after the connection is completed. These are Finger-safe Terminals by design, not requiring covers or barrier plates, for safety or protection. Their housing is Polyamide 66 and currently available with 35 sq mm and 70 sq mm connection capacity, and with rated currents of 140 Amps and 192 Amps respectively. Hinged covers are available in various colours as required optionally.
The Panel Mounted terminals of elmex range are so designed as to fit on any panel / surface. The terminals are stackable and can be fixed on the surface with the help of fixing screws at the end.
elmex 'U' Series Terminal Blocks are based on Modular Type design with all Brass parts for special applications. The proven screw-clamp design offers high contact force. The special design of the clamp makes it possible to terminate 0.2 sq mm conductor on the lower side. All metal parts are made of high conductivity brass. The housing is made of Polyamide 66. The feed through terminal blocks are available to accommodate conductor sizes from 0.2 sq mm to 10 sq mm. elmex Twin Terminal Blocks solve the problem of power distribution by accommodating two separate cable connection points on the load side. elmex Double Level Terminal Blocks offer an easy solution to space problem. The special feature of providing offset between lower and upper decks allow better accessibility to the lower level screws and visibility of labels.
elmex 'U' Series Terminal Blocks are based on Modular Type design with all Brass parts for special applications. The proven screw-clamp design offers high contact force. The special design of the clamp makes it possible to terminate 0.2 sq mm conductor on the lower side. All metal parts are made of high conductivity brass. The housing is made of Polyamide 66. The feed through terminal blocks are available to accommodate conductor sizes from 0.2 sq mm to 10 sq mm. elmex Twin Terminal Blocks solve the problem of power distribution by accommodating two separate cable connection points on the load side. elmex Double Level Terminal Blocks offer an easy solution to space problem. The special feature of providing offset between lower and upper decks allow better accessibility to the lower level screws and visibility of labels.
elmex 'U' Series Terminal Blocks are based on Modular Type design with all Brass parts for special applications. The proven screw-clamp design offers high contact force. The special design of the clamp makes it possible to terminate 0.2 sq mm conductor on the lower side. All metal parts are made of high conductivity brass. The housing is made of Polyamide 66. The feed through terminal blocks are available to accommodate conductor sizes from 0.2 sq mm to 6 sq mm. elmex Twin Terminal Blocks solve the problem of power distribution by accommodating two separate cable connection points on the load side. elmex Double Level Terminal Blocks offer an easy solution to space problem. The special feature of providing offset between lower and upper decks allow better accessibility to the lower level screws and visibility of labels.
Applications in Control & Automation require fuse protection facility. elmex offers Terminal Blocks with built-in safety fuse levers. These Terminal Blocks accommodate a glass cartridge fuse of 5 mm x 20 mm, 5 mm x 25 mm or 6 mm x 32 mm size. The fuse holder is made of special grade phosphor bronze and hence offers low contact resistance. A solid brass link type DL4 in place of the fuse makes it possible to use it as a disconnection type terminal block. An LED kit is provided for blown-fuse indication. Standard operating voltages can be selected from the range of:
